EK Water Blocks EK-Quantum Impulse 120 D-RGB PWM korpuso ventiliatorius – 120mm, juodos spalvos

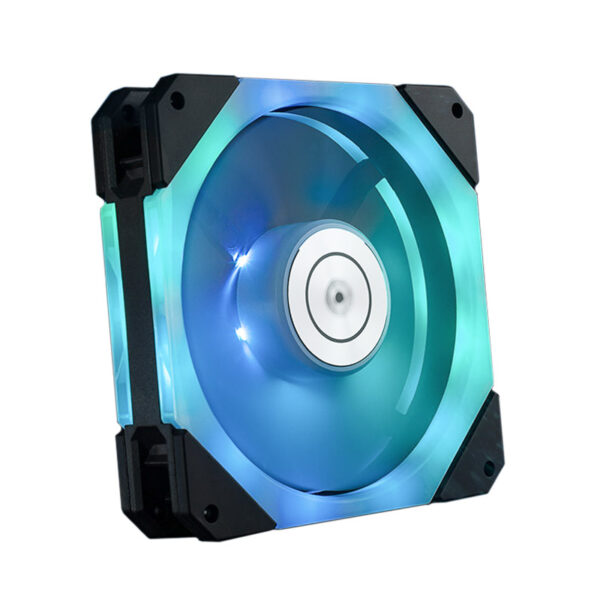

EK-Quantum Impulse 120 D-RGB is a silence-oriented 120mm computer cooling fan designed and built primarily with the lushest RGB LED illumination in mind. They are not a replacement for other EK fans that maintain a focus on high radiator performance but more of an aesthetic-focused offering that provides silent operation and balanced performance.

MagLev Fans
EK-Quantum Impulse fans have the VAPO™ bearing and Magnetic Levitation motor.

Addressable RGB LED MagLev Fans
EK-Quantum Impulse are 120mm PC radiator and case fans optimized for rich and lush D-RGB effects while maintaining very silent operation across their entire operational range. There is one LED-lit zone around the frame on both sides of the fan, so no matter which fan orientation you require, you’ll get the rich illumination of the addressable RGB diffused through a milky white cover. The rotor is also illuminated by its own D-RGB strip for stylish aesthetics while spinning.

These fans use VAPO bearing, designed to virtually eliminate wobbling, so it stays incredibly stable in all applications. VAPO bearing adds a magnetic effect (magnetic levitation) to the bearing to reduce noise and increase shaft stability. Unlike the traditional ball-bearing fans that get noisier with time, VAPO bearings are dust-resistant and don’t dry out.

As with FPT fans, Impulse fans also allow daisy-chaining, ultimately reducing cable clutter and easing cable routing through the EK-OmniLink, an 8-pin Micro-Fit connector ecosystem. All the signal and power wiring for the PWM and D-RGB runs on a single cable and connector, which then utilizes another single cable to connect to the source. Most importantly, the EK-OmniLink ecosystem doesn’t require any special controllers since the connection ends in the standard motherboard connectors – a 4-pin PWM for the fan power and a 3-pin 5V D-RGB for the connectors.

Rubber Dampers On the Corners
Thick rubber corners can be found on both sides of the fan to reduce vibration transfer to the rest of the PC. The fan itself is 26mm thick, with rubber corners protruding 1.5mm on each side for a total of 29mm in depth, bearing in mind that these rubber corners will squish down as you tighten the screws.

EK-OmniLink
EK-OmniLink – allows daisy chaining of multiple fans, thus reducing cable clutter and greatly easing cable management. The Omni-Link ecosystem of interconnects will be greatly expanded in the near future, allowing additional benefits to users. It uses Micro-Fit 8-pin connectors between products, but standard 4-pin for PWM and 3-pin for 5V addressable RGB at the end of the daisy chain.

3-Zone LED Illumination on EK-Quantum Impulse 120 PC Fan
One of the main features the new EK-Quantum Impulse 120 fan offers is its simplicity. It utilizes the standard 3-pin 5V D-RGB connection, meaning you can use it with any standard 3-pin 5V addressable RGB controller or any of the popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector should be aligned with the +5V marking on the D-RGB (ARGB) header.
