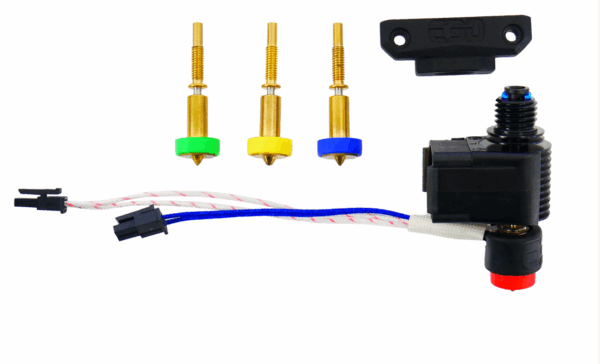

E3D Revo™ Micro Hotend with LGX Adaptor – 24V – Fully Loaded Nozzle Kit

Aprašymas

Revo Micro ensures smooth and consistent filament flow, resulting in high-quality prints with every use. Its lightweight and compact design provides excellent thermal performance, reducing heat-up times and preventing heat creep, even during prolonged printing sessions. Included is also a compact, MJF 3D printed adaptor which allows the user to pair the Revo Micro HotEnd with the Bondtech LGX Extruder, unlocking further adaptability for the Revo range.

Highlights

• Max temp 300C
• Weight 30g
• Nozzle type RapidChange Revo
• M12 x 1.5 thread mounting
• Compatible with Bowden and direct drive systems

Perfectly paired with LGX

A compact, MJF 3D printed adaptor allows users to pair a Revo Micro HotEnd with the Bondtech LGX Extruder, unlocking further adaptability for the Revo range.

Rapid nozzle changing

Change nozzles at room temperature using just your fingers. No complex tools, no hot tightening. Revo Nozzles are a factory sealed nozzle and heatbreak in one, so they’re easy to fit and can’t leak material when in use. Full range of standard, high flow and abrasive nozzles available.

Performance at the core

The Revo HeaterCore heats up in seconds. A positive temperature coefficient (PTC) means the Revo HeaterCore doesn’t risk melting at extreme temperatures: power reduces as it gets hotter, so hazards are reduced in the event of a thermal runaway.

Please note:

• The Revo Micro fan must be connected using the 5V regulator unless connecting directly to a 5V pin
• You may need to adjust your Z offset when changing nozzles
