E3D Revo High Flow HotSide Fully Loaded Kit – 1.75mm – 24V – 60W

Aprašymas



High-flow 3D printing is just a 30-second nozzle change away! Achieve high flow results in the same form factor as a standard E3D Revo ™ thanks to optimised internal nozzle geometry. The Revo High Flow HotSide bundle allows maximum volumetric flow performance from your Revo HotEnd.

Highlights:

• Maximum temperature: 300°C
• Filament diameter: 1.75mm
• Voltage: 24V
• Power: 60W
• Compatible with: Revo Brass Nozzles, Revo High Flow Nozzles, Revo ObXidian Nozzles

High Flow HotSide

High-flow 3D printing is just a 30-second nozzle change away! Achieve high flow results in the same form factor as a standard E3D Revo ™ thanks to optimised internal nozzle geometry. The Revo High Flow HotSide bundle allows maximum volumetric flow performance from your Revo HotEnd.

How Does This Work?

Unlike our previous High Flow Hotends (Volcano and SuperVolcano), Revo High Flow maintains the exact same form factor as standard Revo HotEnds; this means there is no need to adjust your pre-existing mount and fan duct setups! Revo High Flow uses a unique custom internal geometry to increase the surface area for improved thermal transfer to the filament.

Why a 60W HeaterCore?

Whilst not required in most cases, the 60W core adds extra power for printing high flow at higher temperatures for example with materials such as Polycarbonate. For those users printing with PLA and PETG the 40W HeaterCore will be more than sufficient, but if you’re seeking the maximum flow performance then we recommend pairing your nozzles with a 60W HeaterCore.

More Nozzle Sizes

Revo High Flow unlocks higher flow for existing 0.4mm, 0.60mm, and 0.80mm nozzle sizes and adds 1.00mm, 1.20mm, and 1.40mm nozzle sizes to your arsenal.

Volumetric Flow Rate (Based on printing with PLA at 220°C)

• 0.40 mm nozzles see a 38% increase in the volumetric flow rate (18mm³/s)
• 0.60 mm nozzles see a 57% increase in volumetric flow rate (22mm³/s)
• 0.80 mm nozzles see a 64% increase in volumetric flow rate (28mm³/s
• 1.00 mm nozzles have a volumetric flow rate of 35mm³/s
• 1.20 mm nozzles have a volumetric flow rate of 37mm³/s
• 1.40 mm nozzles have a volumetric flow rate of 37mm³/s

Flow Rates

Datasheet

Revo High Flow Hotside Single Nozzle Kit:

• 1 x 60W 24V HeaterCore
• 1 x 0.6mm Revo HighFlow Nozzle
• 1 x Revo Spring



Revo High Flow HotSide Fully Loaded:

• 1 x 60W 24V HeaterCore with Spring & Sock
• 1 x 0.60 mm Revo High Flow Nozzle & Sock
• 1 x 0.80 mm Revo High Flow Nozzle & Sock
• 1 x 1.00 mm Revo High Flow Nozzle & Sock
• 1 x 1.20 mm Revo High Flow Nozzle & Sock

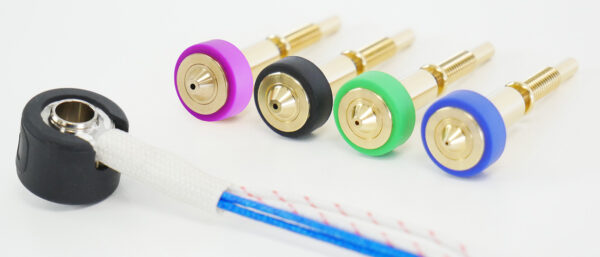

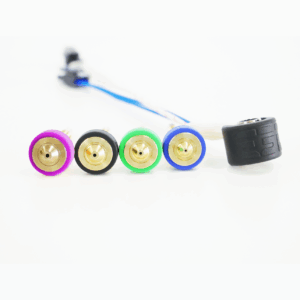

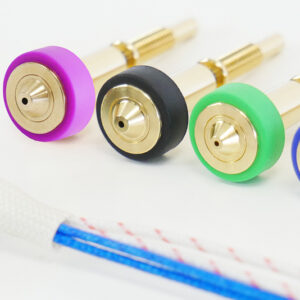

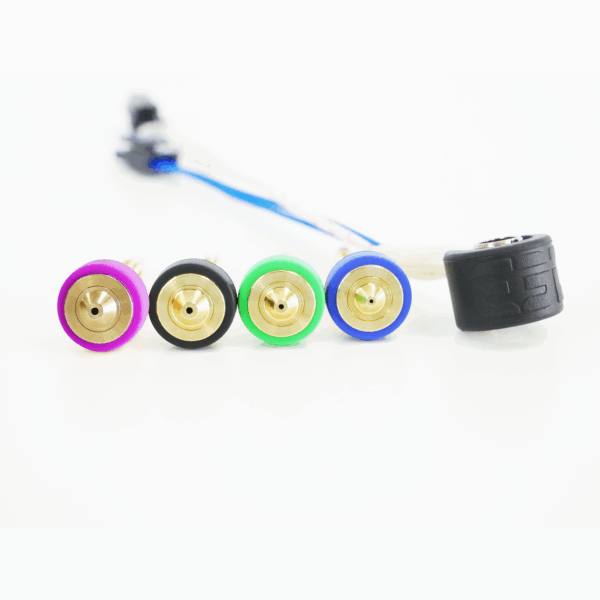

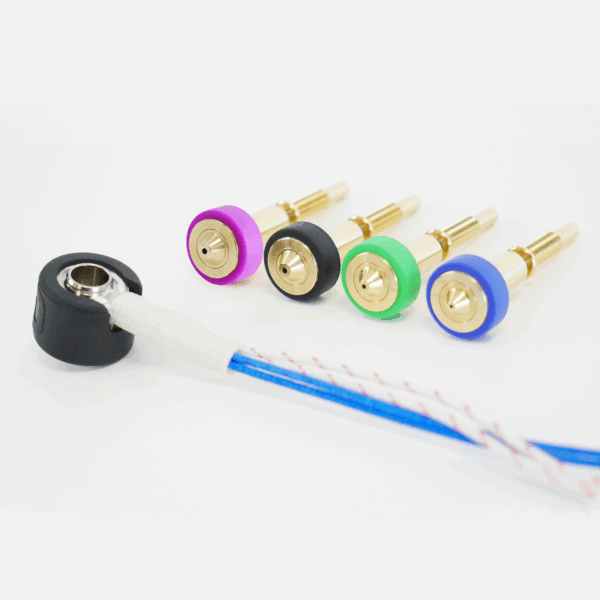

Picture of the Fully Loaded kit
