Digital Clamp Meter Habotest HT208D

48,08

LIKUTIS: Turime
Pristatymo laikas: 4-5 d. d.
2024-11-22
PASITEIRAUTI APIE PREKĘ

    PARAŠYKITE MUMS:

    Aprašymas

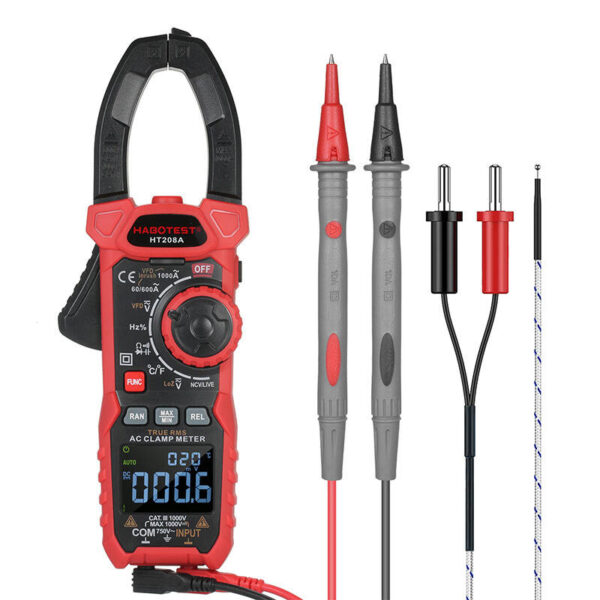

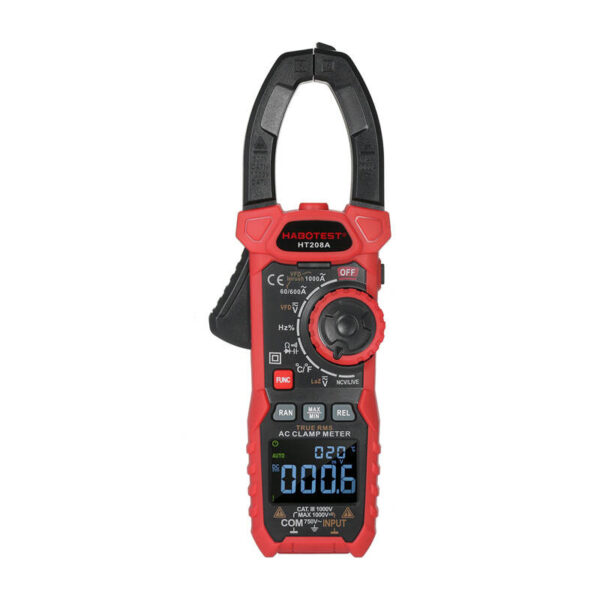

    Habotest HT208D digital clamp meter

    HT208D is a practical device with which you can check the value of various parameters, for example, AC and DC voltage and current, resistance, temperature, inrush current and many others. The product provides accurate measurements, and the results are displayed on the LCD screen. The HT208D also features a flashlight for convenient operation in dark rooms.

    Multifunctional device

    You will use the HT208D in many situations. You can check the value of AC voltage, resistance, capacitance, temperature, frequency, NCV, etc. Furthermore, you can also check continuity and true RMS value.

    Safe use

    The device is completely safe to use. You can, for example, detect voltage without touching, thanks to the NCV sensors. The meter’s jaws, thanks to their maximum width of 40 mm, allow you to make measurements comfortably without damaging the circuit. The flashlight function ensures comfortable and safe work in dark rooms.

    Additional features

    When it receives an electromagnetic signal, the NCV sensor will send an audible alarm, and if the voltage or current is high, the LCD screen color will turn orange. What’s more, the device will automatically turn off to save power if no action is performed within 15 min.

    FunctionHT208AHT208D
    DC voltage

    6V/60V/600V/1000V

    ±(1%+3)

    6V/60V/600V/1000V

    ±(1%+3)

    AC voltage

    6V/60V/600V/750V

    ±(1.2%+3)

    6V/60V/600V/750V

    ±(1.2%+3)

    DC currentn/a

    60A/600A/1000A ±(2.5%+5)

    AC current

    60A/600A/1000A

    ±(3.0%+5)

    60A/600A/1000A

    ±(3.0%+5)

    Resistance

    600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

    ±(1.0%+3)

    600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

    ±(1.0%+3)

    Capacity

    10nF/100nF/1μF/10μF/100μF/1mF/10mF ±(4.0%+3),

    100mF ±(5.0%+5)



     10nF/100nF/1μF/10μF/100μF/1mF/10mF±(4.0%+3),

    100mF ±(5.0%+5)

    Frequency

     10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

    ±(1.0%+3)

    10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

    ±(1.0%+3)

    Duty

     1%~99%

    ±(1.0%+2)

    1%~99%

    ±(1.0%+2)

    Temperature

     -40°C~1000°C

    ±(1.0%+3)

    -40°C~1000°C

    ±(1.0%+3)

    Counts 60006000

    Auto/manual range

     YesYes
    Continuity Yes, LED and buzzYes, LED and buzz
    Diode YesYes
    Data hold YesYes
    NCV Yes, LED and buzzYes, LED and buzz
    Double color backlight YesYes
    Flashlight YesYes

    Low battery indicator

     YesYes
    Auto power off YesYes
    True RMS YesYes
    LPF YesYes
    MAX/MIN YesYes
    V-LoZ NoYes
    Power 2x AA batteries (in the box)2x AA batteries (in the box)
    Weight about 380 gabout 380 g
    Size 240 x 85 x 40 mm240 x 85 x 40 mm
    Size of jaws 44 mm44 mm
    Safety

    EN61010-1, -2-030 EN61010-2-033,

    EN61326-1 CAT III 1000V, CATIV 600V

    EN61010-1, -2-030 EN61010-2-033,

    EN61326-1 CAT III 1000V, CATIV 600V
