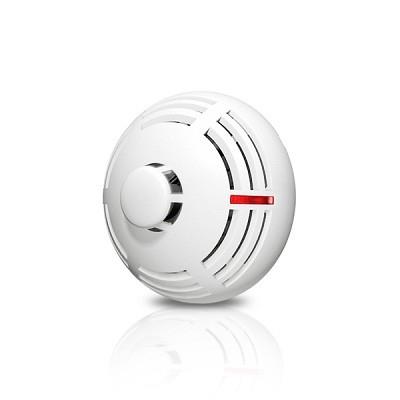

The TSD-1 is a point detector designed to detect the early stages of a developing fire. For this purpose, it is equipped with a photoelectric sensor of visible smoke, as well as rate of rise temperature sensor. The unique design of the measuring chamber provides high sensitivity and omni-directionality, while a precise Hexamesh stainless steel filter protects the chamber from ingress of contamination and small insects. Detector configuration with DIP-switches and built-in parametric end of line resistors facilitate connection of the detector to virtually any control panel with a 12V power supply.
- unique Swirl chamber for increased smoke sensitivity
- EN54-7 compliant smoke detection
- EN54-5 compliant heat detection
- selectable operating mode (smoke, heat, multisensor)
- line type configuration (NO/NC/2EOL) with DIP switches
- precision stainless steel Hexamesh filter
- smoke chamber dirt build-up indicator
- easy installation with detachable base
- compatible with all 12V alarm panels
Specifikacija
| Vendor Homepage | http://www.satel.pl/en/produktid/466 |
| Category Code | MDE |
| CnCode | 85311030 |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.12 |
| Unit Box Width | 0.12 |
| Detector Type | Fire/Special |
| Operating temperature range | -10 C+55 C |
| Power supply requirements | 12 V DC |
| Current drain | 24 |
| Dimensions | 108 x 61 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001008 |
| Product Net Weight | 0.164 |
| Unit Calculated Weight | 0.2 |
