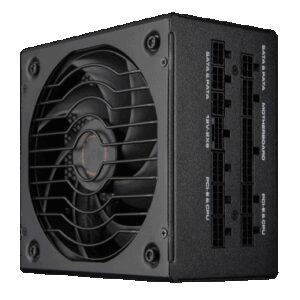

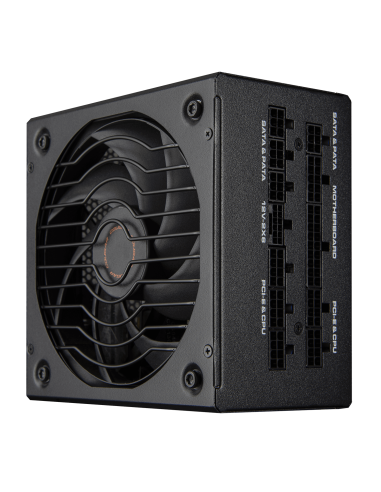

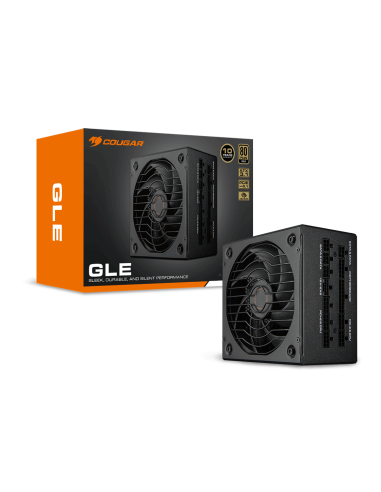

Maitinimo blokas Cougar GLE-1200, 1200W, 80 Plus Gold
167,95 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-16*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
Aprašymas
The COUGAR Gaming CGR GLE-1200 is a powerful 1200 W ATX power supply unit designed for PCs. It features a 20+4 pin motherboard connector, active cooling with a 13.5 cm fan, and 80 PLUS Gold certification for high efficiency. With an AC input voltage range of 100-240 V and a frequency of 50/60 Hz, it ensures stable performance. The power cables include lengths of 60 cm for the motherboard and various lengths for SATA connections (500-950 mm).
Description
The COUGAR Gaming CGR GLE-1200 is a 1200 W ATX power supply unit designed for modern desktop systems. It meets ATX 3.1 requirements and supports next-generation GPUs with a native PCIe 12V-2X6 (12+4 pin) connector. The unit delivers high conversion efficiency (80 PLUS Gold up to 91%), stable power delivery at 40°C ambient temperature, and modular fully removable cables with an embossed black finish for neat installations.
Advantages
The GLE-1200 combines high efficiency and strict regulation using 100% Japanese capacitors and an LLC + DC-DC Tri-Sense design to maintain tight voltage regulation (±2%). It includes a durable 135 mm Hydro Dynamic Bearing (HDB) fan with optimized blades and a stabilizing ring for reduced noise and improved longevity. Native PCIe 12V-2X6 cabling supports PCIe 5.1 GPUs through a single 12+4-pin cable and the PSU passes ATX 3.1 power excursion tests for transient loads.
Suitable for
- High-performance gaming PCs with multi-core CPUs and next-generation graphics cards
- Workstations requiring stable 12V rail delivery and low voltage ripple
- Custom builds where modular cables and clean cable management are important
Key specifications
- Total power: 1200 W
- Efficiency: up to 91% (80 PLUS Gold)
- ATX standard: ATX 3.1 compliant
- GPU connector: native PCIe 12V-2X6 (12+4 pin) modular cable
- Motherboard connector: 20+4 pin ATX
- Cooling: 135 mm HDB fan
- Operating temperature: stable operation at 40°C ambient
- Capacitors: 100% Japanese main and standby capacitors (105°C rating)
- Form factor: ATX, fully modular cables
- Colour: black
- Weight: approx. 2.69 kg
How to use
Install the PSU into a compatible ATX case following the motherboard and GPU manufacturer instructions. Connect only the required modular cables: attach the 20+4 pin motherboard connector, CPU and PCIe cables as needed, and SATA/Molex cables for storage and peripherals. When using the native PCIe 12+4 pin cable for graphics cards, verify the GPU manufacturer’s recommended power requirements on their official website before powering the system. Ensure proper airflow around the 135 mm fan and secure all cable connections to avoid strain.
Usage recommendations
For reliable operation, use this PSU in systems where ambient temperatures do not exceed 40°C, and pair it with GPUs that list compatibility with single 12+4 pin (12V-2X6) PCIe power inputs. Regularly check cable seating and dust levels around the fan to maintain cooling efficiency and minimize noise.
Specifications
Total power:
Efficiency:
Motherboard power connector:
80 PLUS certification:
Fan diameter:
Weight:
Product colour:
All features
Total power:
Efficiency:
Power protection features:
Combined power (+3.3V):
Combined power (+12V):
Combined power (+5V):
Combined power (-12V):
Combined power (+5Vsb):
Max output current (+3.3V):
Max output current (+12V):
Max output current (+5V):
Max output current (-12V):
Max output current (+5Vsb):
Input current:
AC input frequency:
AC input voltage:
Motherboard power connector:
PCI Express connector:
Number of SATA power connectors:
Peripheral (Molex) power connectors (4-pin):
CPU power connector (4+4 pin):
PCI Express power connectors (6+2 pin):
Cabling type:
Motherboard power cable length:
SATA power cable length:
PCI Express power connectors (12+4 pin):
PCI Express power connectors (12+4 pin) cable length:
Purpose:
80 PLUS certification:
Bearing technology:
ATX version:
Power supply unit (PSU) form factor:
Fan diameter:
Number of fans:
Cooling type:
Fan location:
On/off switch:
Product colour:
Compliance certificates:
Weight:
Height:
Width:
Depth:
Operating relative humidity (H-H):
Storage temperature (T-T):
Operating temperature (T-T):
Storage relative humidity (H-H):
