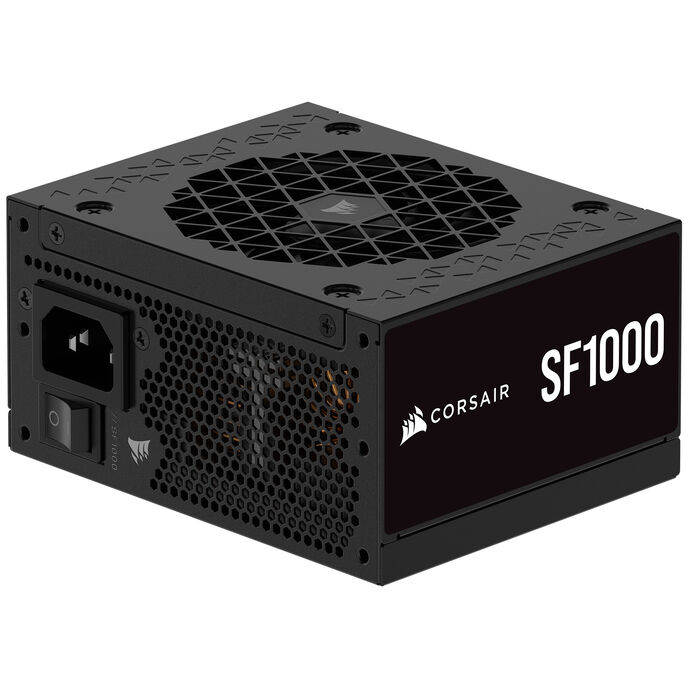

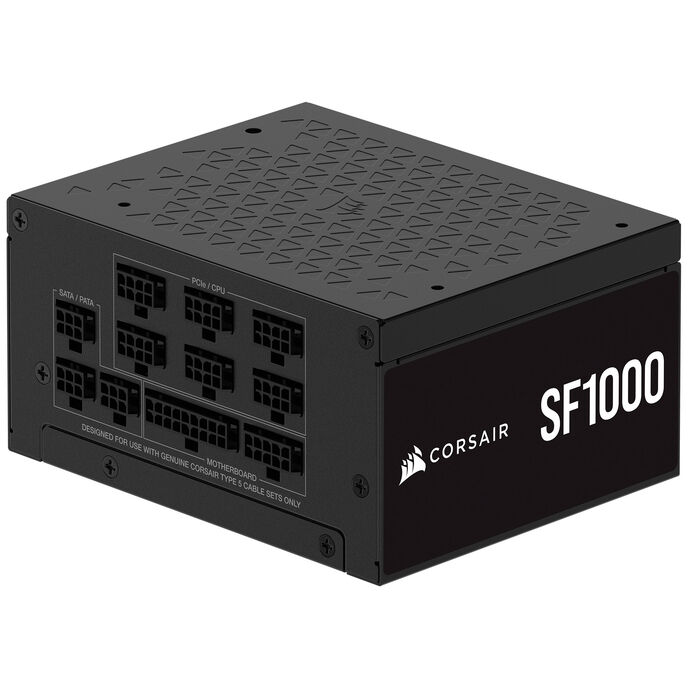

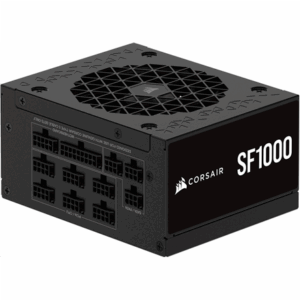

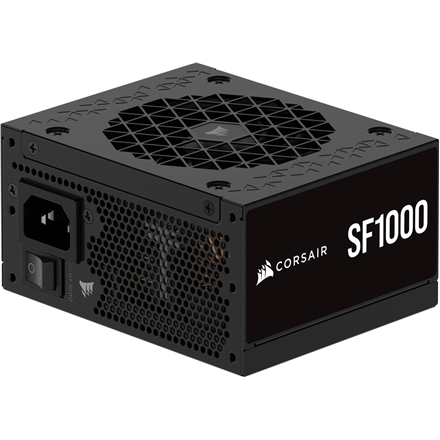

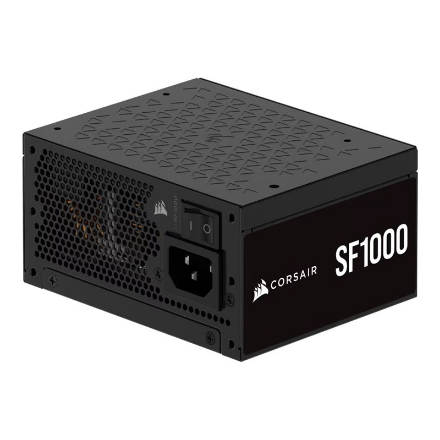

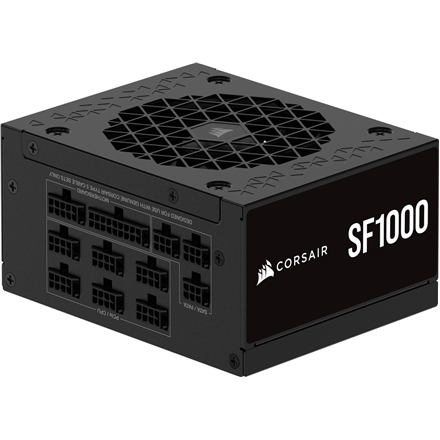

Corsair SF Series SF1000 SFX PSU, 80 PLUS Platinum, ATX 3.1 / PCIe 5.1 – 1.000 Watt, juodos spalvos
Prekės kodas: 1240619
CP-9020257-EU
259,79 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- Powerful ATX 3.1 power supply in SFX form factor
- 1,000 watt nominal output from a compact 100 mm deep PSU
- Highly efficient gaming with Cybenetics and 80 PLUS Platinum certification
- Fully modular cable management to prevent cable clutter
- Includes 12V-2×6 cable for high-power graphics cards
The Corsair SF1000 SFX Power Supply: Small Form Factor, Huge Performance
For especially compact builds, it’s essential to save as much space as possible for critical components and easy cable management. The Corsair SF1000 Power Supply, with its depth of only 100 mm, is ideal for this purpose. Despite its SFX size, this power supply makes no compromises: with 1,000 watts of power, even high-end components with substantial power demands are well supported in your SFF build.
Corsair has also ensured adequate cooling performance with a 92 mm fan. The hydrodynamic bearing efficiently and quietly supplies plenty of cooling air to your PSU components. The Zero-RPM mode enables completely silent operation of the PSU below a certain load threshold, contributing to a quieter PC environment and extending the PSU’s lifespan by reducing fan wear.
ATX 3.1 and PCIe 5.1 for High-Power Graphics Cards and High-End Components

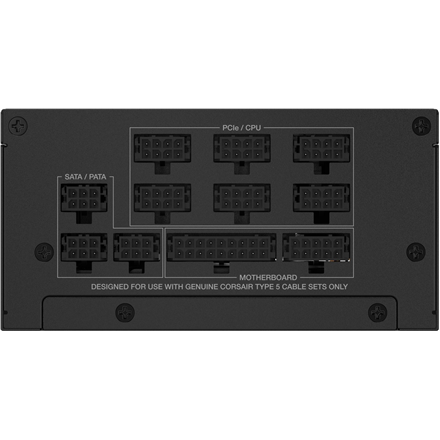

Even with the PSU’s compact size, connectivity is more than sufficient. Alongside the standard 24-pin connector and two 4+4-pin connectors for the CPU, there are also four 6+2-pin connectors available. A 12V-2×6 adapter from two 8-pin connectors is included for high-power graphics cards. With eight SATA and three Molex connectors from three 6-pin sockets, there are ample connections for your additional devices.
- Dimensions: 125 x 63.5 x 100 mm (W x H x D)
- Colour: Black
- Fan: 92 mm (FDB / hydrodynamic bearing)
- Standard: ATX 3.1
- Efficiency:
80 PLUS Platinum
Cybenetics Platinum - Form Factor: SFX
- Power (Total): 1,000 W
+3.3 V: 20 A, 66 W
+5 V: 20 A, 100 W
+3.3 V and +5 V (combined): 130 W
+12 V: 83.3 A, 1,000 W
+5 Vsb: 3 A, 15 W - Internal Connectors:
1x 18+10-Pin Mainboard (24-Pin)
6x 8-Pin PCIe/CPU
3x SATA/PATA - Protection:
OCP (Over Current Protection)
OPP (Overload Protection)
OVP (Over Voltage Protection)
OTP (Over Temperature Protection)
SCP (Short Circuit Protection)
UVP (Under Voltage Protection) - Package Contents:
1x Corsair SF Series SF1000 SFX Power Supply
1x 18-Pin + 10-Pin to 24-Pin (300 mm)
2x 8-Pin EPS / ATX 12 V to 4+4-Pin CPU (400 mm)
1x 8-Pin + 8-Pin to 12V-2×6 (400 mm)
4x 8-Pin to 6+2-Pin PCIe (400 mm)
1x 6-Pin to SATA (445 mm / 100-115-115-115 mm)
1x 6-Pin to SATA 90 Degree (445 mm / 100-115-115-115 mm)
1x 4-Pin PATA 90 Degree (330 mm / 100-115-115 mm)
1x Accessory Kit
1x Power Cord
Colour | |
Primary Colour | Black |
Dimensions | |
Length / Depth | 100 mm |
Width | 125 mm |
Height | 63.5 mm |
Fan Specifications | |
Fan Size | 92 mm |
Power Supply | |
PSU Format | SFX |
ATX Standard | ATX 3.1 |
12V Distribution | single rail |
Modular Power Supply | Yes |
Modular Type | fully modular |
Protection Circuits | OCP (Overcurrent Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OVP (Overvoltage and Undervoltage Protection), SCP (Short-Circuit Protection), UVP (Undervoltage Protection) |
Power Specifications | |
Total Power Output | 1000 W |
Power Output +3.3V | 66 W |
Power Output +5V | 100 W |
Power Output +3.3V & +5V (combined) | 130 W |
Power Output +12V rails | 1000 W |
Power Output +5Vsb | 15 W |
Cable Specifications | |
Max. CPU Power Cable Length | 400 mm |
Max. 24-Pin Motherboard Power Cable Length | 300 mm |
Max. 12V-2×6 Cable Length | 400 mm |
Max. PCIe Power Cable Length | 400 mm |
Max. SATA Power Cable Length | 445 mm |
Max. Molex Cable Length | 330 mm |
Cooling | |
Semi Passive Power Supply | Yes |
Switchable Semi Passive Mode | Yes |
Internal Ports | |
CPU Power Connectors 12V ATX/EPS | 4 |
CPU Power Supply | 2x 4+4-Pin |
12VHPWR PCIe Power Connectors | 1 |
6+2 Pin PCIe Power Connectors | 4 |
SATA Power Connectors | 8 |
4 Pin Molex Power Connectors | 3 |
Efficiency Class | |
80PLUS Efficiency | 80 PLUS Platinum |
Cybenetics Efficiency Level ETA (230V) | PLATINUM |
Cybenetics Noise Level LAMDA (230V) | Standard++ |
Lighting | |
Lighting / RGB | No |
