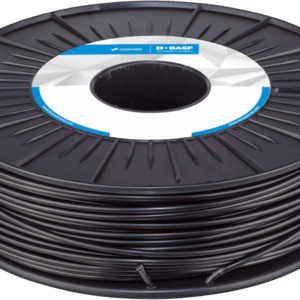

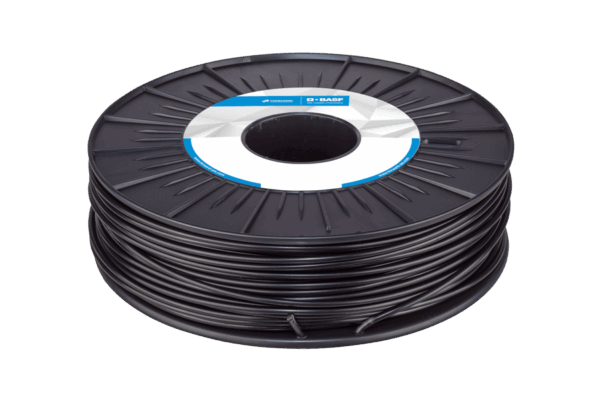

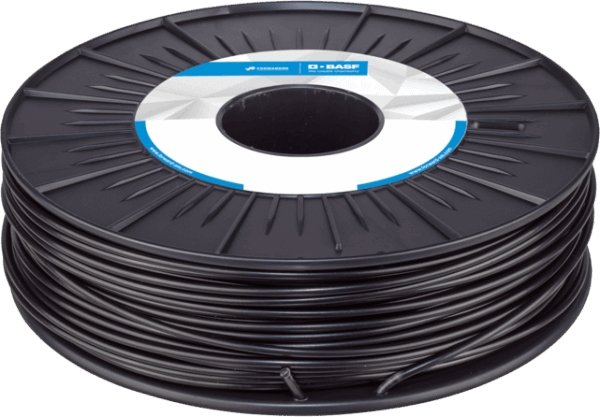

BASF Ultrafuse PC/ABS FR, 1.75mm, 750g, Black

Aprašymas

Ultrafuse PC/ABS FR is a V-0 flame retardant blend of Polycarbonate and Acrylonitrile Butadiene Styrene, two of the most used thermoplastics for engineering & electrical applications.

Highlights:

• Fulfills flame retardancy according to UL 94 V-0 (for 1.5 & 3.0 mm thickness)
• Outstanding aesthetics
• Strong layer adhesion
• High print speeds possible

Ultrafuse PC/ABS FR

Ultrafuse PC/ABS FR is a V-0 flame retardant blend of Polycarbonate and Acrylonitrile Butadiene Styrene, two of the most used thermoplastics for engineering & electrical applications. The combination of these two materials results in a premium material with a mix of the excellent mechanical properties of PC and the comparably low printing temperature of ABS. Combined with a halogen free flame retardant, parts printed with Ultrafuse PC/ABS FR feature great tensile and impact strength, higher thermal resistance than ABS and can fulfill the requirements of the UL94 V-0 standard.

Tips & Tricks

• Nozzle Temperature 230-280 °C
• Nozzle Diameter ≥ 0.4 mm
• Print speed; 25 mm/s
• Bed Temperature 80-100 °C
• Bed Modification Glass plate + adhesive
• Print Speed 30-90 mm/s
• Build Chamber Temperature:Passively heated, closed chamber

Drying Recommendations

The filament is delivered in a printable condition. To achieve best print results, please dry the filament at 60°C for at least 4 hours (vacuum oven preferred over a hot air dryer) and keep the filament dry in for instance a dry box.

Material Properties

• Tensile Strength (MPa): 17.3 (ZX), 50.1 (XY)
• Flexural Modulus (MPa): 1810 (ZX), 2200 (XZ), 2550 (XY)
• Elongation at Break: 0.8 % (ZX), 10.7 % (XY)
• Impact Strength Izod notched (kJ/m2): 1.8 (ZX), 30.3 (XZ), 16.8 (XY)
• Impact Strength Izod unnotched (kJ/m2): 3.0 (ZX), 87.9 (XZ), 57.0 (XY)
• HDT @ 0.45 MPa: 86 oC

BASF Quality Control

The best raw materials available is selected from renowned suppliers. Production on state-of-the-art computer-controlled machinery guarantees a truly consistent filament, also between colors and batches. It will perform as expected every time.

All BASF products are 100% traceable to the source.
