AXAGON RVD-HI, DisplayPort to HDMI Adapter / Mini Adapter, Full HD – black

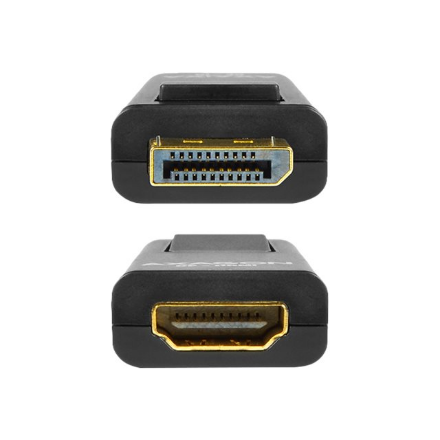

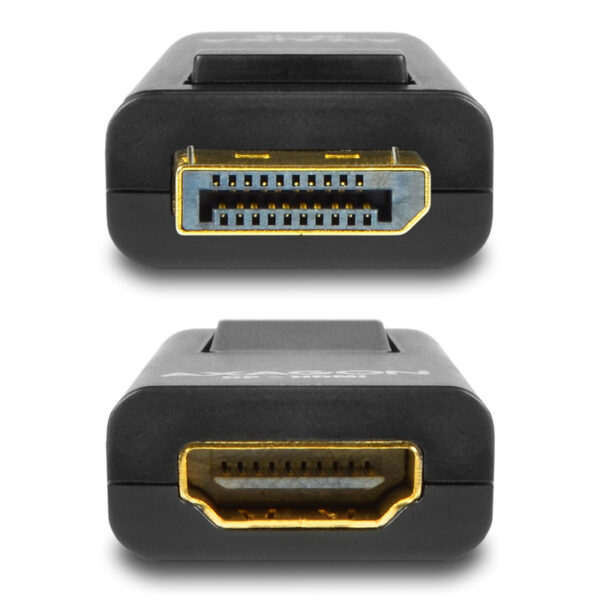

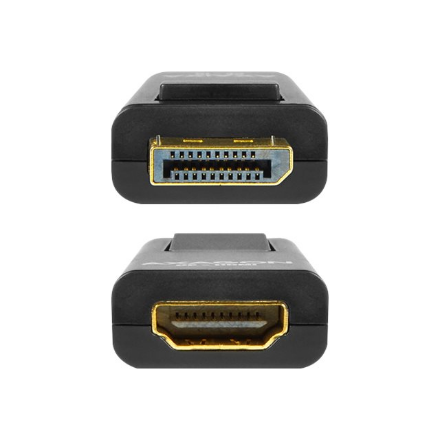

• DisplayPort Straight Male
• HDMI Straight Female
• 1920 x 1200 pixels
• Black
• 1 pc(s)

DisplayPort -> HDMI active adapter AXAGON RVD-HI to connect HDMI monitor/TV/projector to the computer with the DisplayPort output.

The hardware converter without the need for any installation or setup ensures high-quality transfer of image and sound up to 1920×1200 at 60Hz.

The reduction is only one-way, i.e. the converter from DisplayPort to HDMI, not vice versa.

Input:
• DisplayPort v1.1,
• DP connector with latch (M) male,
• connector latch control button.

Output:
• HDMI v1.3a,
• HDMI A (F) female connector.

Supported resolutions:
• max. 1920 x 1200 (16:10) @60Hz WUXGA
• 1920 x 1080 (16:9) Full HD/1080p
• 1680 x 1050 (16:10) WSXGA+
• 1600 x 1200 (4:3) UXGA
• 1600 x 900 (16:9) HD+
• 1440 x 900 (16:10) WXGA+
• 1400 x 1050 (4:3) SXGA+
• 1366 x 768 (16:9) WXGA
• 1360 x 768
• 1280 x 1024 (5:4) SXGA
• 1280 x 960 (4:3) SXGA-
• 1280 x 800 (16:10) WXGA
• 1280 x 768 (5:3) WXGA
• 1280 x 720 (16:9) HD/WXGA/720p
• 1280 x 600
• 1152 x 864 (4:3) XGA+
• 1024 x 768 (4:3) XGA
• 800 x 600 (4:3) SVGA

Other features:
• Sound transfer support.
• DDC (Display Data Channel) support – Intelligent setting of resolution, frequency and other parameters according to the source graphics chip.
• Supported modes: mirroring the primary monitor area (default setting), expanding the primary monitor area.
• HPD (Hot-Plug-Detect) support – communication sequence controlling the connection/disconnection of the device while running.
• Supports power saving modes with spinning down controlled by a source device (PC) and a viewing device (monitor/TV).
• Power supply via bus – no external power is needed.
• Gold-plated connectors for perfect contact and oxidation limitation.
• NXP PTN3361BBS chip is used.
• Miniature dimensions 56 x 24 x 12 mm.
• Weight only 12 g.
• Working temperature: 0 ~ 40°C.
• Storage temperature: -10 ~ +85°C.

Supported OSs:
• All versions of MS Windows, Mac OS, Linux and other operating systems.
• It is a pure hardware converter, the transfer is provided only by a chip of the adapter without computer participation, no drivers are installed, so the compatibility is not dependent on the operating system used.

Package contains:
• DisplayPort > HDMI converter,
• packed in a cardboard box.
