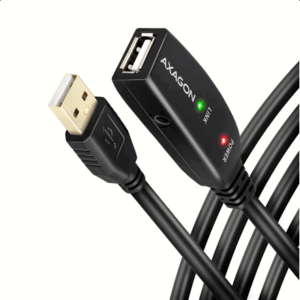

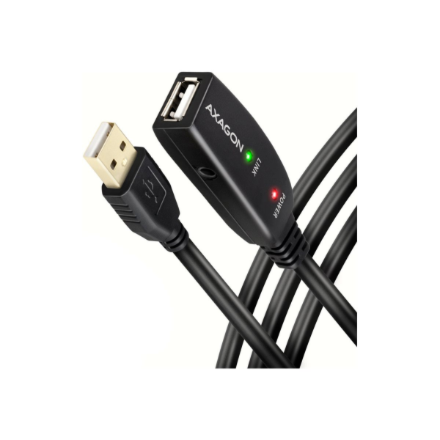

AXAGON ADR-210 active USB extension cable, USB 2.0, USB-A to USB-A – 10 m

• 10 m
• USB A Straight Male
• USB A Straight Female
• USB 2.0 480 Mbit/s
• Black
• 1 pc(s)

Active extension AXAGON ADR-210 USB 2.0 cable, 10 m long.

The USB repeater cable strengthens the passing USB signal and allows you to connect a significantly more distant USB device than the usual 5 meters when passive cables are used. You can connect several repeater cables in a row.

A great advantage of the ADR-210 extension is an integrated auxiliary power supply connector. In most cases, USB bus power is sufficient, but for devices with larger power consumption the USB power supply may be inadequate and auxiliary power from the mains may resolve the problem.

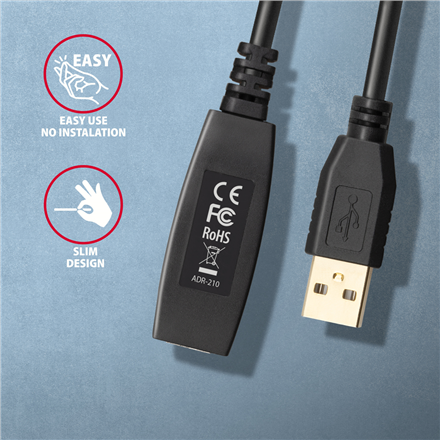

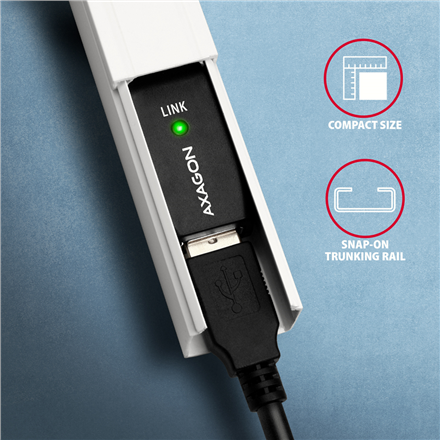

The remarkably compact body of the AXAGON repeater allows for trouble-free use in electrical installation strips or cable systems.

The use of a high quality shielded cable ensures high communication speed and minimal undesirable interference.

Features:
• Fully compatible with USB 2.0 and backward compatible with USB 1.1.

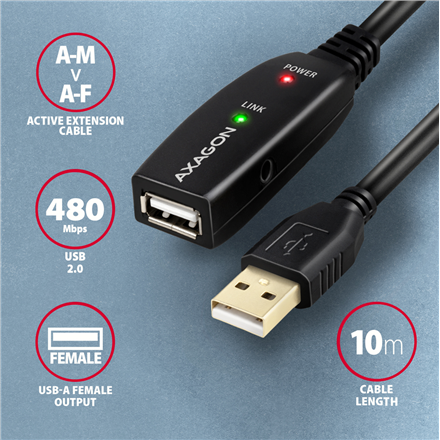

• Supports transmission rates 1.5 / 12 / 480 Mbit/s (low / full / high speed).

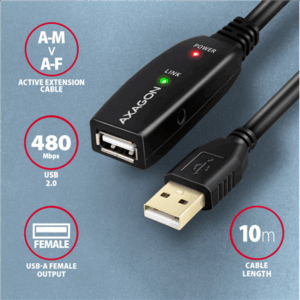

• USB Type A male connector to connect to the computer.
• USB Type A female to connect a remote USB device.
• Full Plug and Play and Hot Plug support.

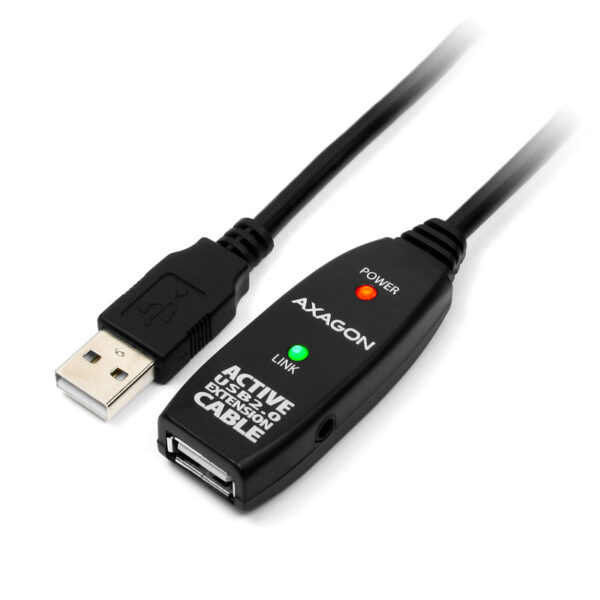

• Two LEDs indicating power and USB connection.
• Dimensions of the active part with USB Type A female connector 65 x 22 x 13 mm, cable length 10 m.
• Cable weight 338 g.
• Behind the active USB cable, a common passive USB cable can also be used.

Power supply:
• Power supply of the cable and connected devices via USB bus (bus-power mode 5V – 500mA).
• For most connected USB devices, the power supply via USB bus is sufficient and no auxiliary power is required.

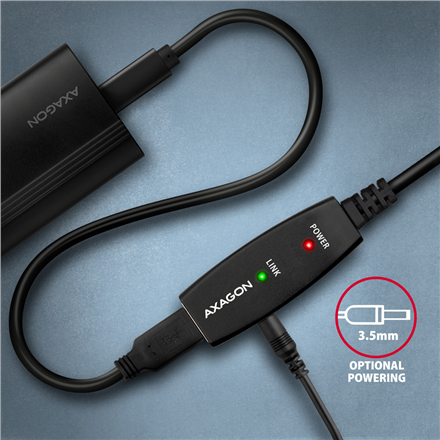

• The active part of the cable includes a connector (Ø 3.5 x 1.3 mm outer x internal diameter) for additional external power supply of 5 V/ 1-2 A.
• The power adapter is not included – AXAGON AC-5V2A power adapter is recommended.
• When powering the repeater cable with the power adapter, an external 2.5″ disk can be connected without the need for own power supply to the disk.
• For longer USB route with multiple repeater cables connected in a row, the USB bus supply may be inadequate and can be boosted by additional power supplied to the repeater cable.

Supported OSs:

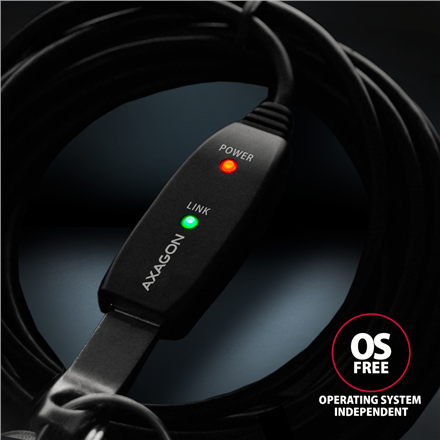

• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.x and higher, Linux with kernel 2.6.x and above.
• Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available.

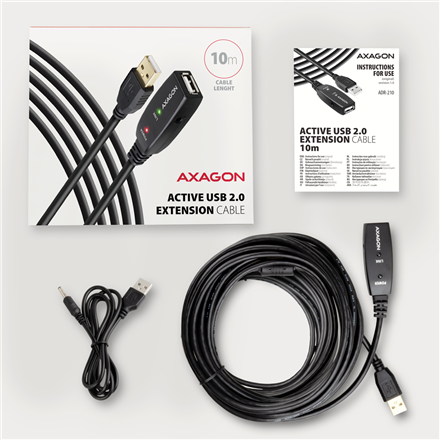

Package contains:
• Active extension USB 2.0 A-M > A-F cable, 10 m long,
• the printed manual is not included, the user guide is available for download at the manufacturer’s website,
• packed in a solid, sealed foil bag with print.
