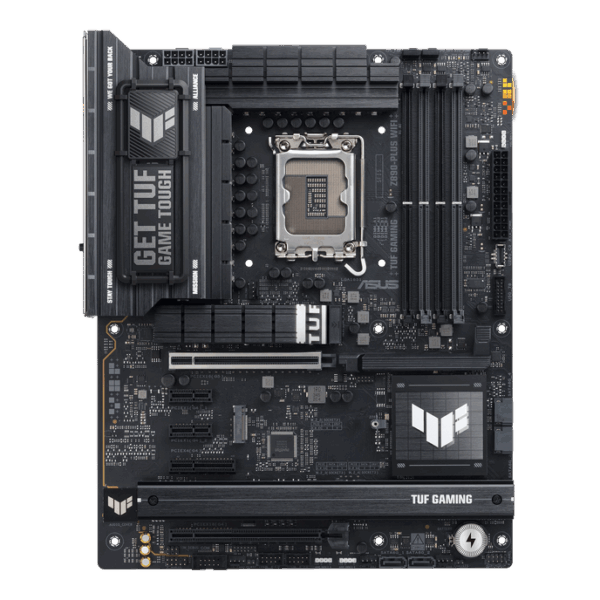

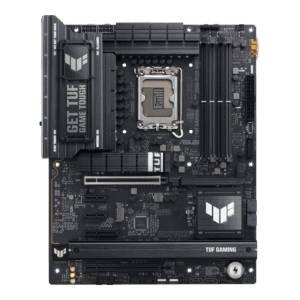

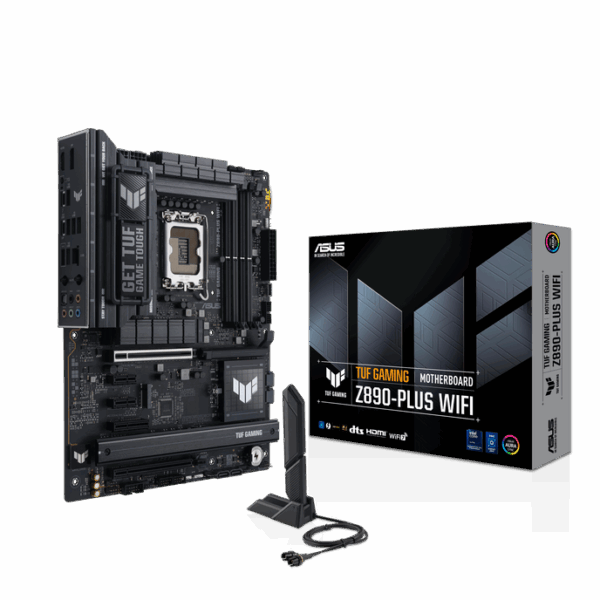

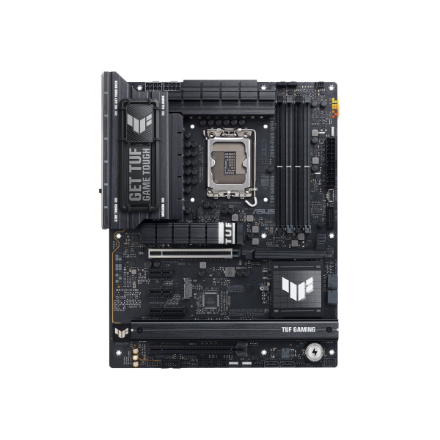

ASUS TUF Gaming Z890-Plus WiFi Motherboard, Socket LGA 1851, Intel Z890, ATX, DDR5
90MB1IQ0-M0EAY0
372,47 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
Pranešti kai prekė vėl bus prekyboje
- Aprašymas
- Atsiliepimai (0)
Aprašymas
ATX-Mainboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 1x PCIe 4.0 x16 / 1 PCIe 4.0 x4 / 2x PCIe 4.0 x1, 1x USB4 / 2x USB-C 3.2 / 3x USB 3.1 / 4x USB 3.0 / 2x USB 2.0, 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0) / 4x SATA 6G, 7x 4-pin PWM connectors
This motherboard is ideal for enthusiasts, content creators, and gamers.
- 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x4, and 2x PCIe 4.0 x1
- 4x DIMM slots for up to 192 GB DDR5 RAM at 8,600 MHz (XMP 3.0 support)
- 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G
- USB on I/O panel: 1x USB4, 1x USB Type-C 3.2, 3x USB 3.1, 3x USB 3.0
- OC features: Digi+, BIOS FlashBack button
- In total, 7x 4-pin connectors for fans & pumps
ASUS TUF GAMING Z890-PLUS WIFI: ATX-Mainboard with Intel LGA 1851 socket and Z890 chipset
The ASUS TUF GAMING Z890-PLUS WIFI is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports 2nd generation Intel Core Ultra processors with the Arrow Lake code name. The Intel Z890 motherboard natively supports USB4, offering data transfer speeds of up to 40 Gbit/s. Additionally, the ASUS TUF GAMING Z890-PLUS WIFI features full PCIe 5.0 connectivity, providing double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
- Form factor:
ATX (305 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (for 2nd generation Intel Core Ultra CPUs) - RAM:
4x DDR5 DIMM (up to 8,600 MHz via XMP)
Dual-Channel
Max. 192 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16 or x8/x8)
1x PCIe 4.0 x16 (electrical x4)
1x PCIe 4.0 x4
1x PCIe 4.0 x1 - Total usable PCIe lanes: 44
- Internal connectors:
4x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280, CPU)
1x M.2 (PCIe 4.0 x4 2280, CPU)
1x M.2 (PCIe 4.0 x4 2280 / 22110, chipset)
1x M.2 (PCIe 4.0 x4 2242 / 2260 / 2280, chipset)
1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
1x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
2x USB 2.0 (1 header, max. 480 Mbit/s)
1x Clear CMOS header
1x Chassis Intrusion header
1x COM Port header
1x Front Panel Audio header (F_AUDIO)
1x 10-1 pin Front System Panel header
1x Thermal Sensor header
1x Thunderbolt (USB4) header - Fan headers:
1x 4-pin CPU fan header
1x 4-pin CPU OPT fan header
1x 4-pin AIO pump header
4x case fans (4-pin) - External connectors:
1x Thunderbolt 4 (USB-C)
1x USB 3.2 (Type-C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
3x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbit/s)
3x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x DisplayPort
1x HDMI
1x 2.5 Gigabit LAN
1x WiFi/Bluetooth module
5x 3.5 mm jack (Realtek ALC 4080)
1x S/PDIF Audio - Power supply:
1x 24-pin ATX
2x 8-pin ATX12V
1x 6-pin PCIe ATX
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
305 mm
|
|
Width
|
244 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
8600 MT/s
|
|
Memory slots
|
4x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Cooling
|
|
|
Backplate
|
No
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 2.0 (internal) Header
|
2
|
|
Front Panel Audio Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 2×2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
3
|
|
USB 3.0 (external) Type A
|
3
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
3
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe x4 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x4 mechanical slot
|
1
|
|
PCIe 4.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
7
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC1220
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Product Series
|
|
|
Product Series/Family
|
TUF
|
