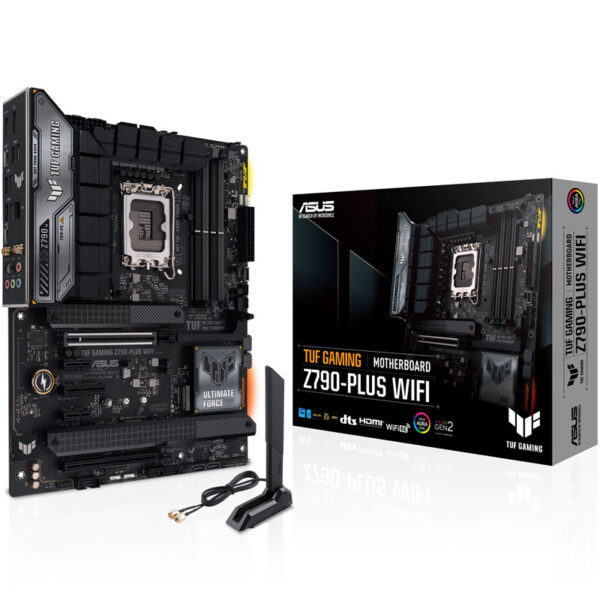

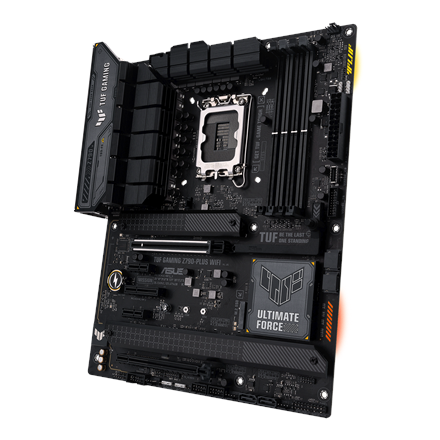

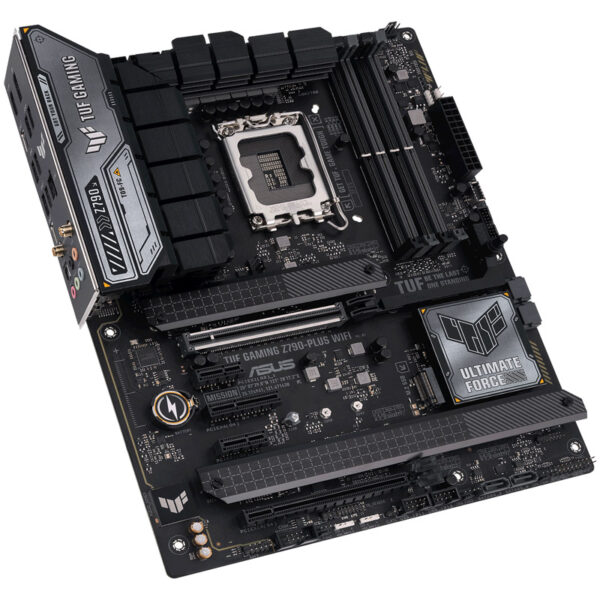

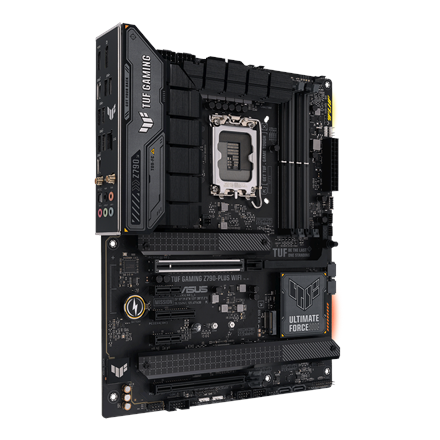

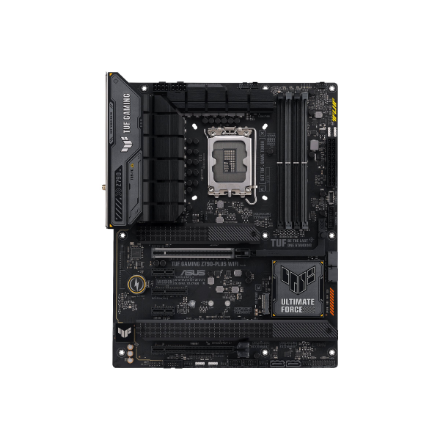

ASUS TUF Gaming Z790 Plus WiFi, Intel Z790 motherboard – Socket 1700, DDR5
90MB1D80-M1EAY0
319,15 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
Pranešti kai prekė vėl bus prekyboje
- Aprašymas
- Atsiliepimai (0)
Aprašymas
ATX motherboard with Intel Z790 chipset, 1x PCIe 5.0 x16 / 2x PCIe 4.0 x16 / 1x PCIe 3.0 x1, 1x USB-C 3.2 / 2x USB-C 3.1 / 4x USB 3.1 / 6x USB 3.0, 2x M.2 PCIe 4.0 / 4x SATA 6G, 7x 4-pin PWM connectors, for DDR5 RAM
- 1x PCIe 5.0 (x16), 1x PCIe 4.0 (x4), 1x PCIe 3.0 (x1)
- DDR5 memory up to 4,800 MHz, up to 7,200 MHz with RAM OC
- 4x M.2 slots with PCIe 4.0
- USB on I/O panel: 4x USB 3.0 Type A / 2x USB 3.1 Type A / 1x USB 3.1 Type C / 1x USB 3.2 Type C
- With WLAN and Bluetooth 5.2
- OC features: BIOS Flashback, Diagnose LEDs, Clear CMOS Jumper
- RGB LED lighting and 4x RGB headers
- Total of 7 connectors for fans and pumps
The ATX motherboard ASUS TUF Gaming Z790 Plus WiFi with Intel Z790 chipset in detail
The ASUS TUF Gaming Z790 Plus WiFi is an ATX motherboard with the high-end Intel Z790 chipset and the LGA 1700 socket. The motherboard is suitable for desktop processors of the 12th, 13th, and 14th generation Intel Core CPUs, Alder Lake and Raptor Lake. It supports DDR5 memory up to 7,200 MHz and is excellent for overclocking due to its optimised power supply.
Note: This motherboard supports DDR5 standard memory.
For the best processor performance, it is recommended to regularly update the BIOS for the motherboard. This is especially important for motherboards that may still be shipped with an early BIOS version by the manufacturer.
Our King Mod Service will gladly perform a BIOS update to the latest version in advance.
Please note that this may delay shipping preparation by 1 to 4 working days!
- Form factor:
ATX (305 x 244 mm) - Chipset:
Intel Z790 - Socket:
1700 (for Intel CPUs of the 12th, 13th, and 14th Core generation) - RAM:
4x DDR5 (4,800 MHz, up to 7,200 MHz with OC)
Dual-Channel
Max. 256 GB - Slots (physical):
1x PCIe 5.0 x16
2x PCIe 3.0 x16 (electrically x4 / x1)
1x PCIe 3.0 x1 - Internal connectors:
4x SATA 6G
1x M.2 (PCIe 4.0 x4, 2242-22110, CPU)
1x M.2 (PCIe 4.0 x4, 2242-2280, chipset)
1x M.2 (PCIe 4.0 x4, 2242-22110, chipset)
1x M.2 (PCIe 4.0 x4 / SATA 6G, 2242-2280, chipset)
1x USB-C (one header, USB 3.2 Gen 2, max. 10 Gbit/s)
2x USB 3.0 (one header, USB 3.2 Gen 1, max 5 Gbit/s)
4x USB 2.0 (two headers, max. 480 Mbit/s)
1x Front Panel Audio Connector
1x System Panel Connector
1x Chassis Intrusion Connector
1x Clear CMOS Jumper
1x TPM Module Connector
1x Tuning Controller Connector
1x Thunderbolt (USB4) - Fan headers:
1x CPU-Fan (4-Pin)
1x Pump (4-Pin)
7x Case fans (4-Pin) - RGB headers:
3x 3-Pin-ARGB (5 V)
1x 4-Pin-RGB (12 V) - External connectors:
1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x DisplayPort 1.4
1x HDMI 2.1
1x RJ-45 (Intel I225-V, max. 2.5 Gbit/s)
2x WLAN Antenna (Intel Wifi 6E, Bluetooth 5.2)
5x 3.5mm Jacks (Realtek ALC 4080)
1x S/PDIF
1x Flash BIOS Button - Power supply:
1x 24-Pin ATX
1x 8-Pin ATX/EPS 12V
1x 4-Pin ATX 12V
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Silver
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Socket
|
1700
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z790
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Internal Ports
|
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
External Ports
|
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
2
|
|
USB 3.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x), HDMI (1x), Thunderbolt 4 (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
4
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
3
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x16 mechanical slot
|
2
|
|
PCIe 3.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
7
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
