ASUS TUF Gaming B850-Plus WiFi, AMD B850 pagrindinė plokštė – Sockel AM5, DDR5
Prekės kodas: 1233717
90MB1J30-M0EAY0
257,46 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- Slots: 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4) and 1x PCIe 4.0 x1
- RAM: 4x DIMM slots for a maximum of 192GB DDR5 RAM up to 8,000MT/s
- Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
- USB: 1x USB-C 3.2, 3x USB 3.1, 4x USB 3.0 and 2x USB 2.0
- Cooling: 7x 4-pin PWM connectors for fans and radiators
- Connectivity: Wi-Fi 7 and Bluetooth 5.4

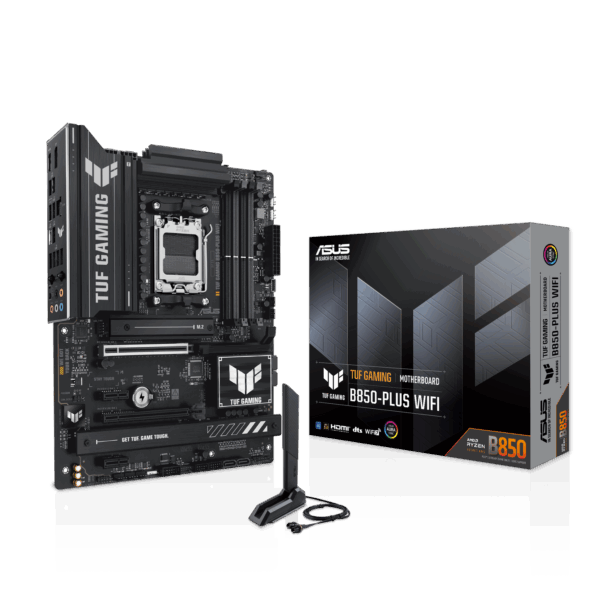

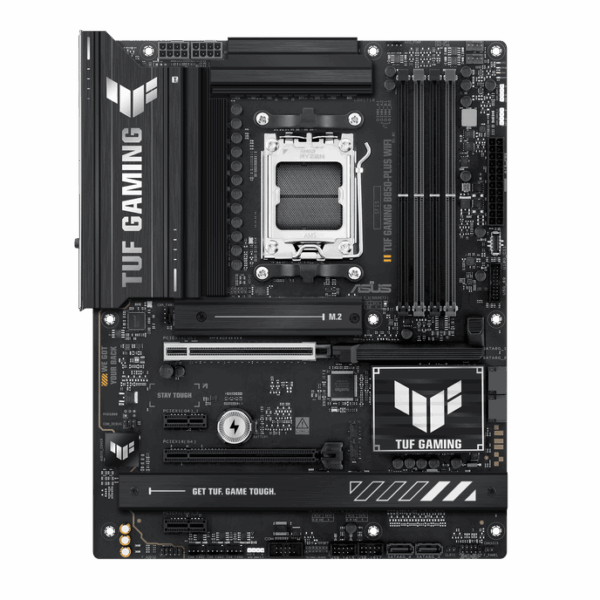

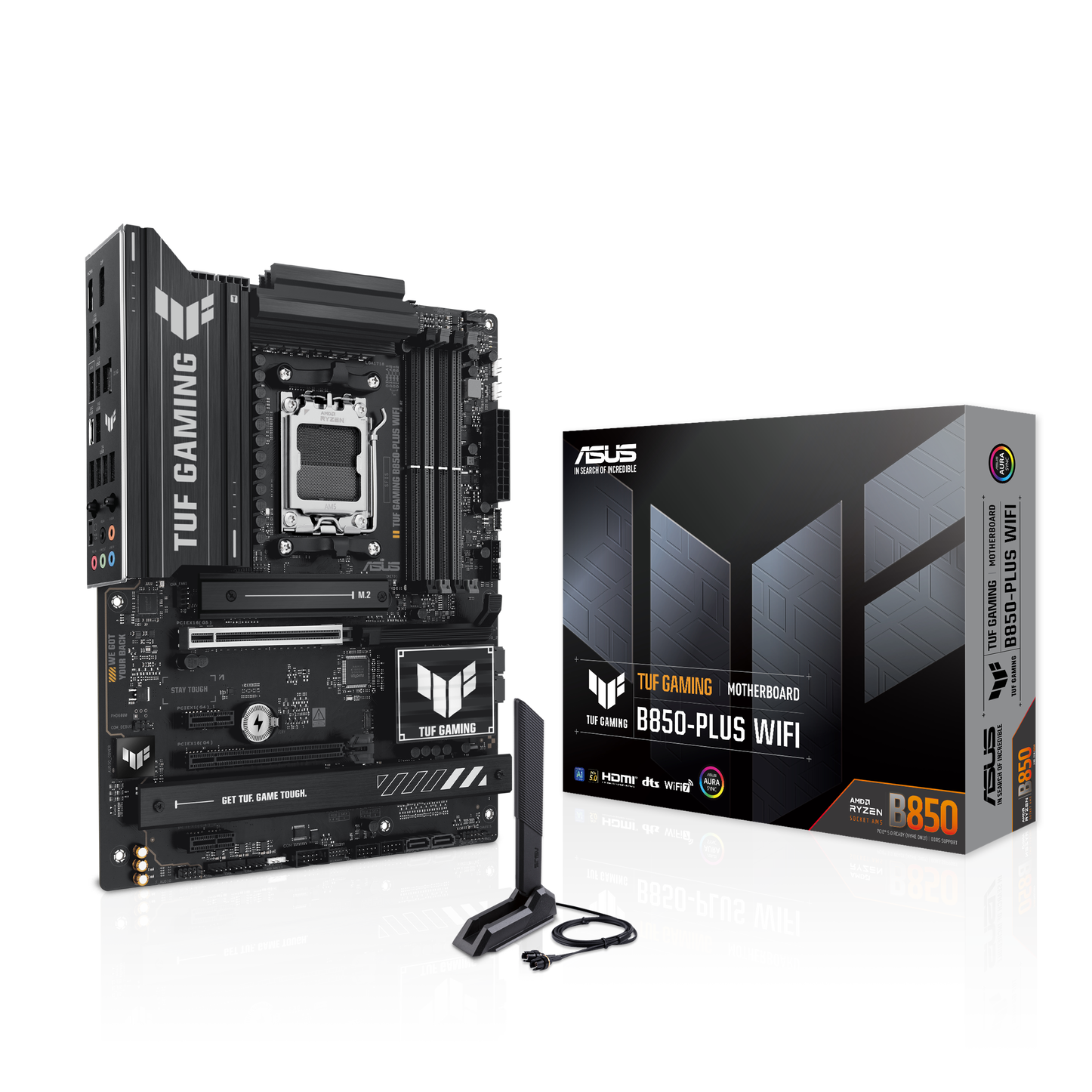

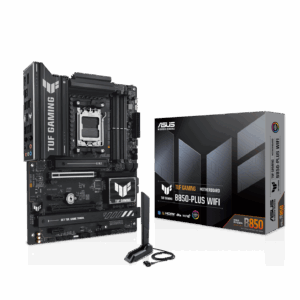

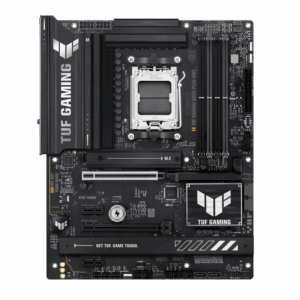

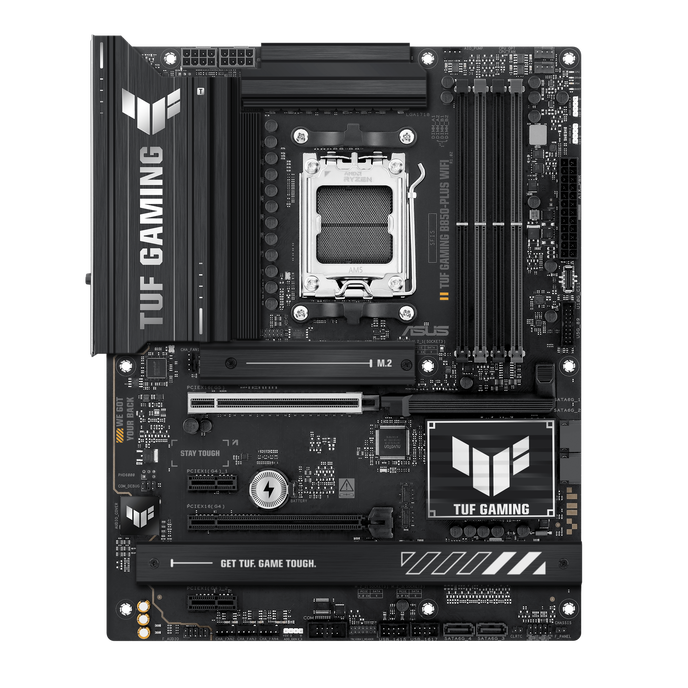

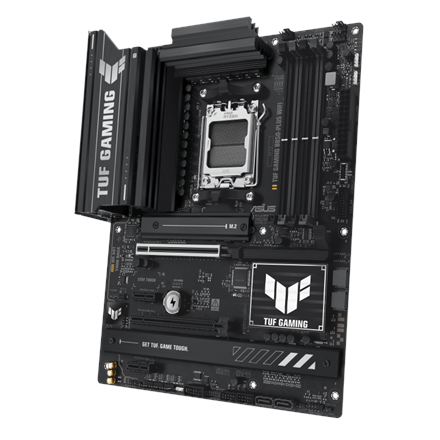

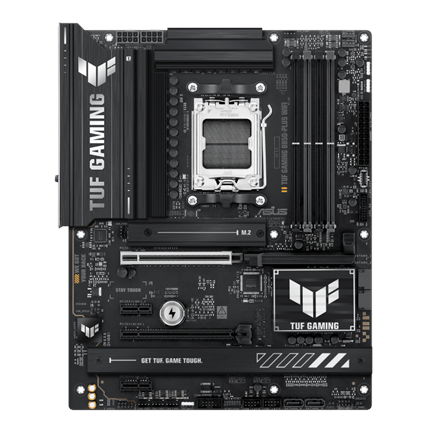

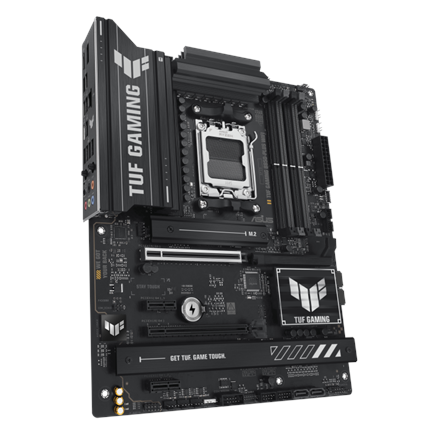

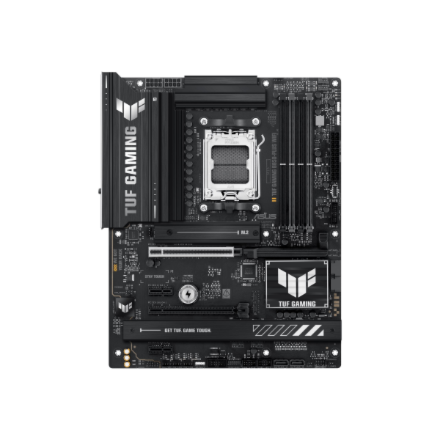

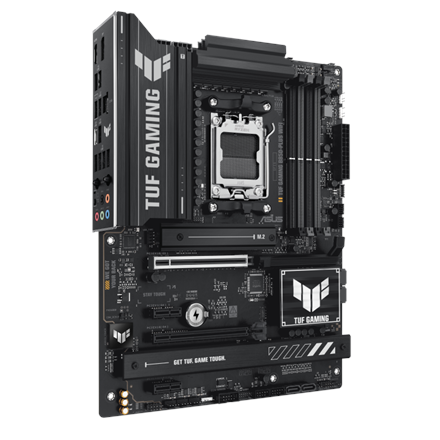

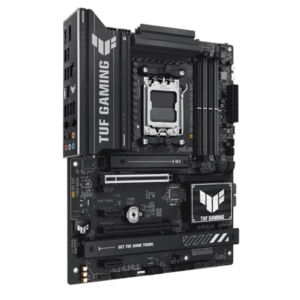

ASUS TUF Gaming B850-Plus WiFi: ATX motherboard with AMD AM5 socket and B850 chipset
The ASUS TUF Gaming B850-Plus WiFi is an ATX motherboard featuring the mid-range AMD B850 chipset and the AMD AM5 socket. It supports Ryzen 9000, 8000, and 7000 CPUs.
Connection to graphics cards and NVMe SSDs is achieved via PCIe 5.0. Data transfer rates of up to 40Gbit/s are possible with USB4.
Overclocking for Gamers
To get the best out of your gaming PC, the CPU can be overclocked via the motherboard to higher clock rates. A stable power supply for the processor is ensured, allowing even high-end CPUs to operate at full performance for an extended period. You can also fully utilise the DDR5 memory with overclocking. In case of emergencies, the ASUS TUF Gaming B850-Plus WiFi offers BIOS flashback and Clear CMOS.
Colour | |
Primary Colour | Black |
Dimensions | |
Length / Depth | 244 mm |
Width | 305 mm |
Form Factor | |
Motherboard formfactor | ATX |
CPU | |
CPU Manufacturer | AMD |
CPU Socket | AM5 |
Motherboard | |
Motherboard Chipset | AMD B850 |
Built-In I/O Shield | Yes |
Memory | |
Max. Memory | 192 GB |
Memory Type | DDR5 |
Memory Form Factor | DIMM |
System Memory Subtype | UDIMM |
Max. Memory Speed (OC) | 8000 MT/s |
EEC Support | Yes |
Memory slots | 4x |
Performance Profile | AMD EXPO |
Wi-Fi & LAN | |
LAN | Yes |
LAN Ports | 1x 2.5 Gbit/s |
Wi-Fi / Bluetooth | Yes |
Wi-Fi Standard | Wi-Fi 7 |
Bluetooth Standard | 5.4 |
Cooling | |
Backplate | Yes |
M.2 Heatsinks | Yes |
VRM Heatsinks | Yes |
Internal Ports | |
CPU Power Supply | 2x 8-Pin |
USB4 (internal) Header | 1 |
USB 3.0 / 3.1 / 3.2 (internal) Type C Header | 1 |
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
USB 3.0 (internal) Header | 1 |
USB 3.0 (internal) Possible Ports | 2 |
USB 2.0 (internal) Header | 2 |
USB 2.0 (internal) Possible Ports | 4 |
RGB / LED connectors | 3x Digital RGB (3-Pin 5VDG) |
Front Panel Audio Header | Yes |

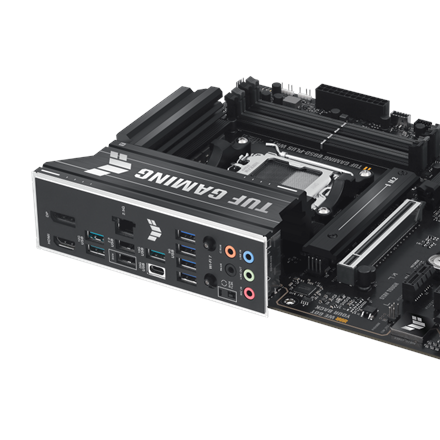

External Ports | |
USB 3.2 (external) Type C | 1 |
USB 3.1 (external) Type A | 3 |
USB 3.0 (external) Type A | 4 |
USB 2.0 (external) Type A | 2 |
Display Connectors | Display Port (1x), HDMI (1x) |
Storage Ports | |
M.2 PCIe 4.0 x4 | 2 |
M.2 PCIe 5.0 x4 | 1 |
SATA 6G (internal) | 4 |
Expansion Slots | |
PCIe x16 slots (total) | 2 |
PCIe x1 slots (total) | 1 |
PCIe 5.0 x16 mechanical slot | 1 |
PCIe 4.0 x4 mechanical slot | 1 |
PCIe 4.0 x1 mechanical slot | 1 |
Fan Header | |
4 Pin Fan Connectors | 7 |
Lighting | |
Lighting / RGB | Yes |
