ASUS TUF Gaming B650-Plus WiFi, AMD B650 pagrindinė plokštė – Sockel AM5, DDR5
Prekės kodas: 1239592
90MB1BZ0-M0EAY0
219,85 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- 2x PCIe x16 slots, of which 2x PCIe 4.0
- Supports max. 128 GB DDR5 RAM up to 6,400 MHz (OC)
- 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G

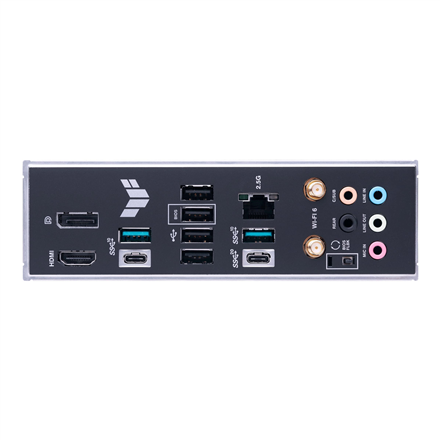

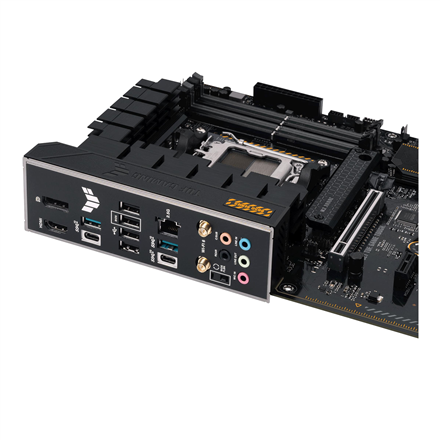

- 1x USB 3.2, 2x USB 3.1 and 4x USB 2.0 on the I/O panel
- A total of 7x 4-pin PWM fans possible

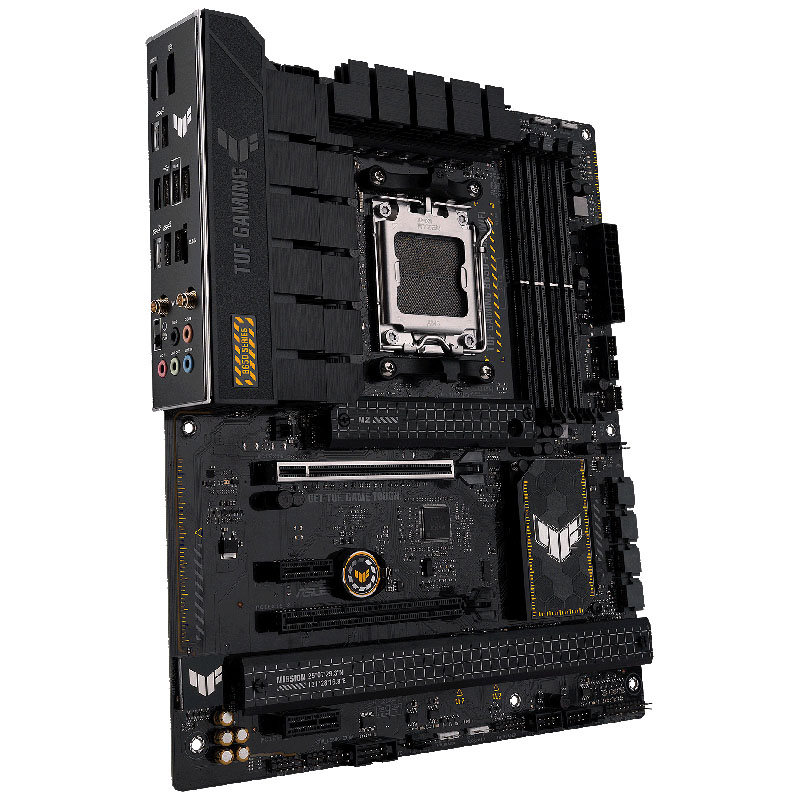

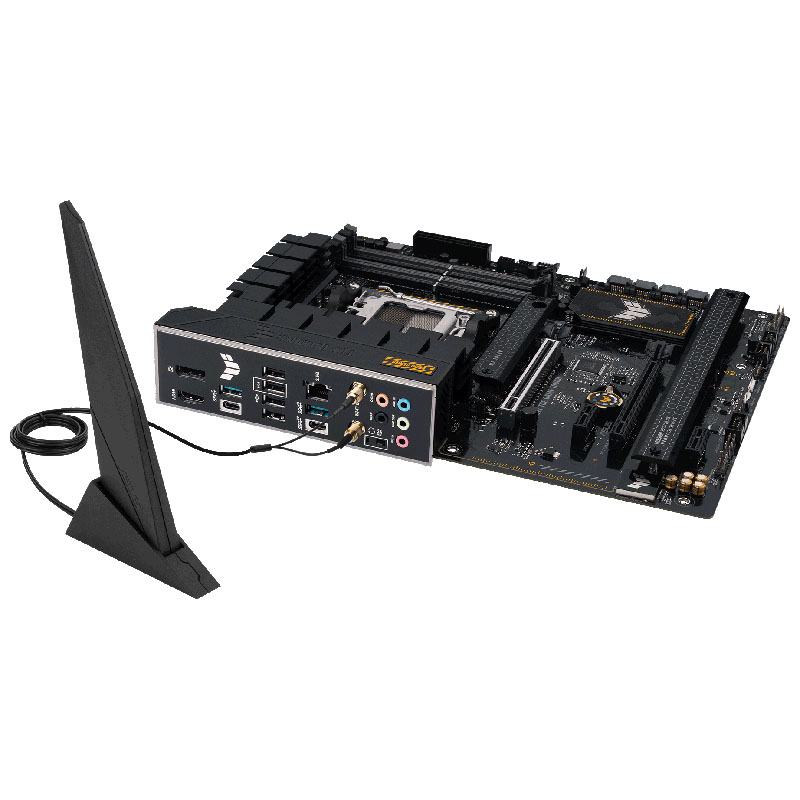

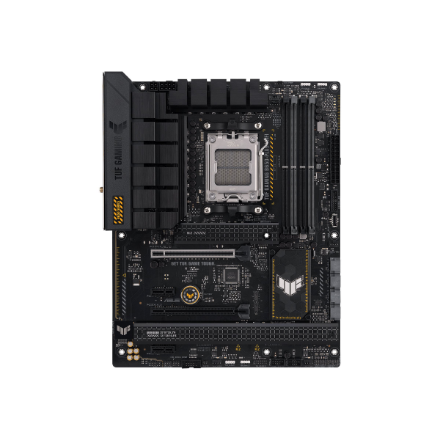

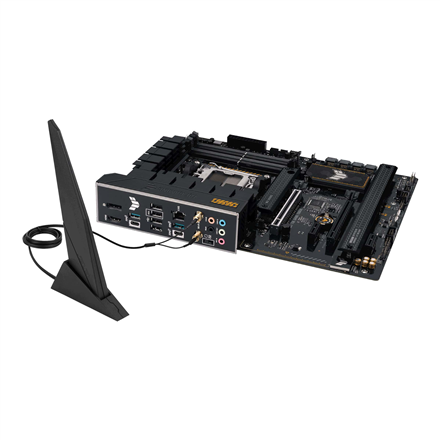

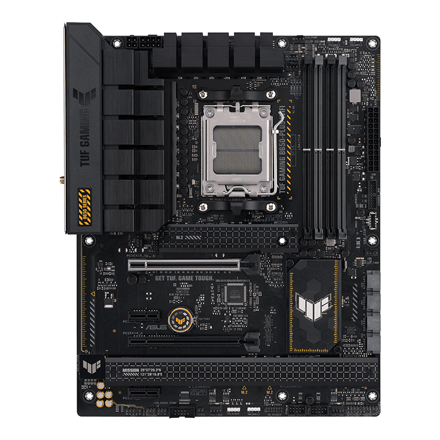

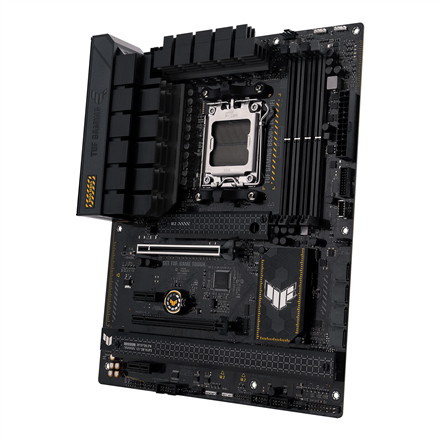

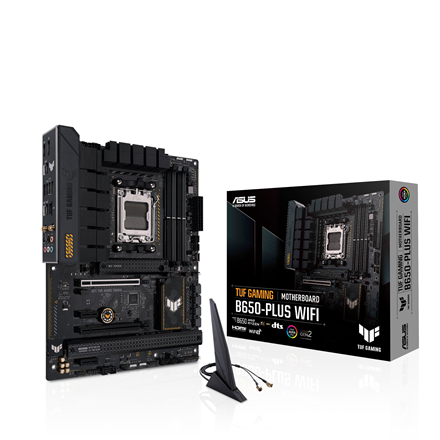

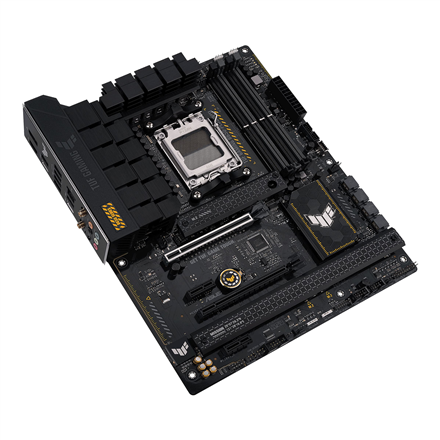

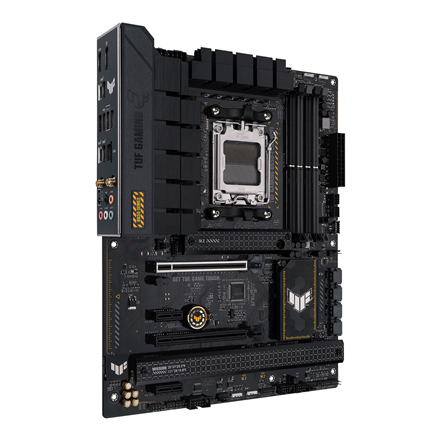

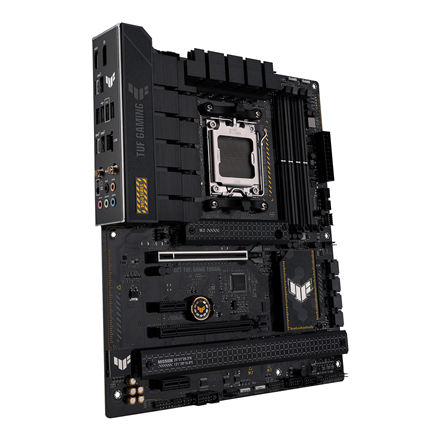

ASUS TUF Gaming B650-Plus WiFi: ATX motherboard with AMD AM5
The ASUS TUF Gaming B650-Plus WiFi is equipped with the B650 chipset for AMD’s Ryzen 7000 series processors and comes with numerous features for gamers. Since the Ryzen 7000 series processors require a new socket due to PCIe 5.0 support and enhanced power delivery, the AM5 socket (LGA 1718) is used on the 600 series motherboards.
Despite the increased pin count, the actual size of the socket remains identical to older sockets, allowing most CPU coolers for AM4 sockets to be mounted on the motherboard.
Compatible only with AMD Ryzen 7000 series CPUs!
BIOS updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates may also bring fixes and optimisations.
Colour | |
Primary Colour | Black |
Secondary Colour | Silver, Yellow |
Dimensions | |
Length / Depth | 305 mm |
Width | 244 mm |
Form Factor | |
Motherboard formfactor | ATX |
CPU | |
CPU Manufacturer | AMD |
CPU Socket | AM5 |
Motherboard | |
Motherboard Chipset | AMD B650 |
Memory | |
Max. Memory | 128 GB |
Memory Type | DDR5 |
Memory Form Factor | DIMM |
Memory slots | 4x |
Wi-Fi & LAN | |
LAN | Yes |
LAN Ports | 1x 2.5 Gbit/s |
Wi-Fi / Bluetooth | Yes |
Internal Ports | |
CPU Power Supply | 1x 4-Pin, 1x 8-Pin |
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 2 |
USB 3.0 (internal) Possible Ports | 2 |
USB 2.0 (internal) Possible Ports | 4 |
RGB / LED connectors | 1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG) |
External Ports | |
USB 3.2 (external) Type C | 2 |
USB 3.1 (external) Type C | 1 |
USB 3.1 (external) Type A | 2 |
USB 2.0 (external) Type A | 4 |
Display Connectors | Display Port (1x), HDMI (1x) |
Storage Ports | |
M.2 PCIe 2.0 x2 | 3 |
M.2 PCIe 4.0 x4 | 2 |
M.2 PCIe 4.0 x4 & SATA 6G | 2 |
SATA 6G (internal) | 4 |
Expansion Slots | |
PCIe x16 slots (total) | 2 |
PCIe x1 slots (total) | 2 |
PCIe 4.0 x16 mechanical slot | 2 |
PCIe 4.0 x1 mechanical slot | 2 |
PCIe 3.0 x16 mechanical slot | 2 |
PCIe 3.0 x1 mechanical slot | 2 |
Fan Header | |
4 Pin Fan Connectors | 7 |
Lighting | |
Lighting / RGB | No |
Product Series | |
Product Series/Family | TUF |
