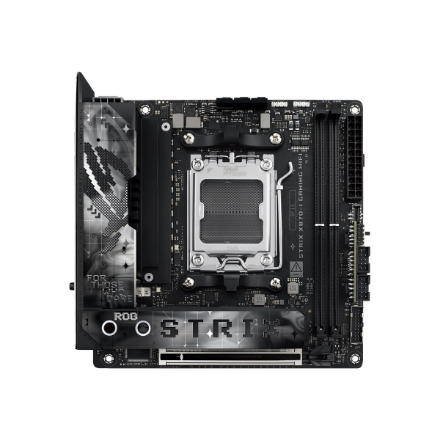

ASUS ROG Strix X870-I Gaming WiFi motherboard, AMD X870, Socket AM5, DDR5
Prekės kodas: 1775540
90MB1IW0-M0EAY0
554,67 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-02-27*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
- Aprašymas
- Atsiliepimai (0)
Aprašymas
ATX motherboard with X870 chipset, 1x PCIe 5.0 x16 / 1x PCIe 4.0 x16, 2x USB 4 / 5x USB-A 3.2 / 2x USB-C 3.2 / 6x USB 2.0 / 2x USB 3.0 / 1x USB-C 3.2, 2x M.2 (1x PCIe 5.0, 1x PCIe 4.0) / 2x SATA 6G, 3x 4-pin PWM connectors
- 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x8/x4)
- 2x DIMM slots for a maximum of 96 GB DDR5 RAM up to 8600 MHz (OC)
- 2x M.2 (including 1x PCIe 5.0 and 1x PCIe 4.0) / 2x SATA 6G
- 2x USB4, 1x USB-C 3.1 and 4x USB 3.1 on the I/O panel
- OC features: 13 phase VRMs, Dual BIOS, CMOS Reset, Digi+ VRM
- A total of 3x 4-pin PWM fans possible
ASUS ROG STRIX X870-I GAMING WIFI: ATX motherboard with AMD AM5 socket and X870 chipset
The ASUS ROG STRIX X870-I GAMING WIFI is equipped with the mid-tier X870 chipset for AMD’s Ryzen 9000 series processors and offers numerous features for gamers. The Ryzen 9000 series processors also utilise the proven AM5 socket (LGA 1718).
Additionally, the AMD X870 motherboard offers USB 4.0, which is now available as standard and achieves data transfer rates of up to 40 Gbit/s. Furthermore, the ASUS ROG STRIX X870-I GAMING WIFI supports PCIe 5.0, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
The ASUS ROG STRIX X870-I GAMING WIFI is designed for high-end gaming, allowing you to enjoy demanding games without interruptions. The high-quality voltage regulators provide stable power supply to the CPU, ensuring its high clock rates can be maintained over extended periods. Additional features include DIGI+ VRM for adjusting VRM voltage and frequency modulation, as well as BIOS Flashback and Clear CMOS, so you can use the PC again if something goes wrong. As usual, DDR5 RAM can also be pushed to higher clock rates.
- Format:
ATX (305 x 244 mm) - Chipset:
AMD X870 (Single Promontory 21) - Socket:
AM5 (LGA 1718) - RAM:
2x DDR5 DIMM (up to 6800 MHz via OC)
Dual-Channel
Max. 96 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16)
1x PCIe 4.0 x16 (electrical x16 or x8/x4) - Internal connections:
Total maximum usable PCIe lanes: 36 (24 CPU and 12 PCIe)
2x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4; 2280, CPU)
1x M.2 (PCIe 4.0 x4 2242 / 2260 / 2280, chipset)
1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbit/s)
2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (1 header, max. 480 Mbit/s, expansion card)
2x SATA (6 Gb/s, expansion card)
1x System panel header
1x Start button
1x Reset button - Fan connections:
1x CPU fan header (4-Pin)
1x Fan header (4-Pin)
1x AiO pump header - RGB header:
2x 3-Pin ARGB header (5 V) - External connections:
1x USB4 (Type C, USB4 Gen 3×2, max. 40 Gbit/s with DisplayPort)
4x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
1x HDMI 2.1
1x 2.5 Gigabit LAN (Intel I226-V)
2x Antenna connection RP-SMA proprietary
1x Clear CMOS button
1x Reset
1x BIOS Flashback - Additional connections:
ASUS ROG STRIX HIVE II
Connection:
1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
Connections:
1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
2x 3.5 mm jack (Realtek ALC4050)
1x Toslink (via jack) - Power supply:
1x 24-Pin ATX
2x 8-Pin 12V - Accessories:
1 x Panel cable
1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
1 x ROG FPS card
1 x ROG FPS card
1 x ROG STRIX HIVE II
1 x USB Type-C power connection cable
1 x ASUS WiFi Q antenna
1 x Cable tie package
1 x M.2 Q-Latch package(s)
1 x ROG keychain
1 x ROG Strix sticker
1 x M.2 rubber package(s)
1 x Quick start guide
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
170 mm
|
|
Width
|
170 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Mini-ITX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD X870
|
|
Dual BIOS
|
No
|
|
Memory
|
|
|
Max. Memory
|
96 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
8600 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
2x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Cooling
|
|
|
M.2 Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
2x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
No
|
|
SPI TPM Header
|
No
|
|
External Ports
|
|
|
USB4 Gen 3×2 (external) Type C
|
2
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
4
|
|
Display Connectors
|
HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
M.2 E-Key
|
1
|
|
SATA 6G (internal)
|
2
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
3
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Product Series
|
|
|
Product Series/Family
|
ROG Strix
|
