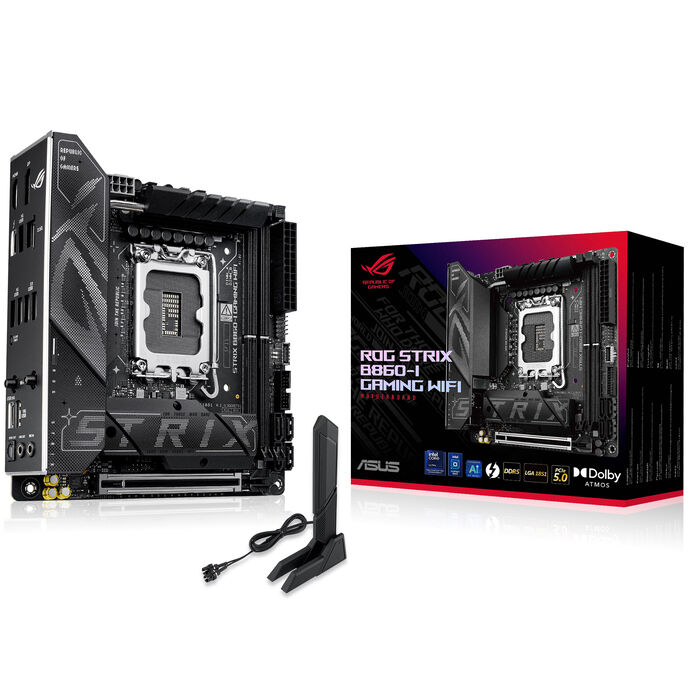

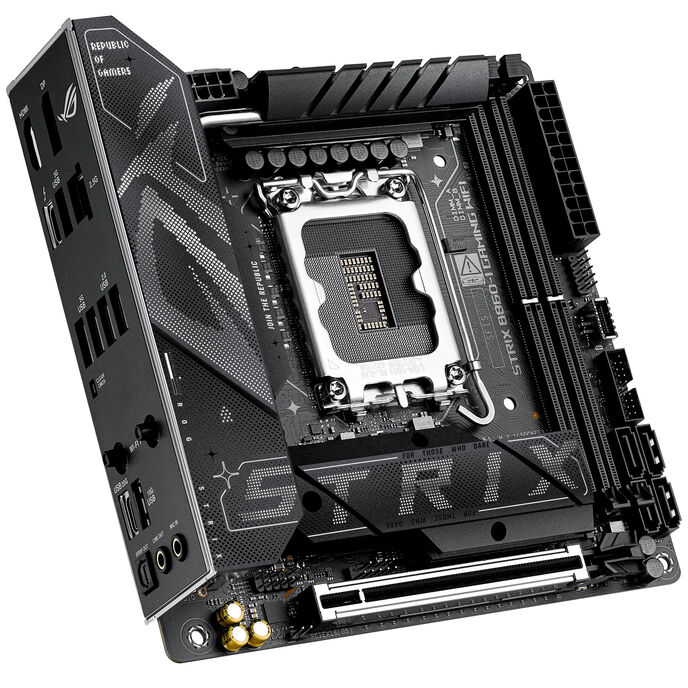

ASUS ROG Strix B860-I Gaming WiFi pagrindinė plokštė, LGA 1851, Intel B860, ITX, DDR5
Prekės kodas: 1247739
90MB1JB0-M0EAY0
293,97 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- Slots: 1x PCIe 5.0 x16 (x16)
- RAM: 2x DIMM slots supporting up to 96GB DDR5 RAM at up to 9,066MT/s
- Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA
- USB: 1x Thunderbolt 4, 1x USB-C 3.2, 1x USB 3.1, 3x USB 3.0, and 2x USB 2.0
- Cooling: 3x 4-pin PWM headers for fans and radiators
- Connectivity: Wi-Fi 7 and Bluetooth 5.4
ASUS ROG Strix B860-I Gaming WiFi: Mini-ITX Motherboard with Intel LGA 1851 Socket and B860 Chipset
The ASUS ROG Strix B860-I Gaming WiFi is a Mini-ITX motherboard featuring the mid-range Intel B860 chipset and the Intel LGA 1851 socket. It supports Intel Arrow Lake-generation processors, making it an excellent choice for gamers who don’t require CPU overclocking.
Additionally, B860 motherboards support USB4, enabling ultra-fast data transfer rates of up to 40Gbps. The ASUS ROG Strix B860-I Gaming WiFi also provides PCIe 5.0 for graphics cards and M.2 SSDs, although it does not support lane splitting for the GPU expansion slot. DDR5 memory can be overclocked, ensuring you get the most out of your RAM.
Colour | |
Primary Colour | Black |
Dimensions | |
Length / Depth | 170 mm |
Width | 170 mm |
Form Factor | |
Motherboard formfactor | Mini-ITX |
CPU | |
CPU Manufacturer | Intel |
CPU Socket | 1851 |
Motherboard | |
Motherboard Chipset | Intel B860 |
Built-In I/O Shield | Yes |
Memory | |
Max. Memory | 96 GB |
Memory Type | DDR5 |
Memory Form Factor | DIMM |
System Memory Subtype | CUDIMM, UDIMM |
Max. Memory Speed (OC) | 9066 MT/s |
EEC Support | Yes |
Memory slots | 2x |
Performance Profile | Intel XMP 3.0 |
Wi-Fi & LAN | |
LAN | Yes |
LAN Ports | 1x 2.5 Gbit/s |
Wi-Fi / Bluetooth | Yes |
Wi-Fi Standard | Wi-Fi 7 |
Bluetooth Standard | 5.4 |
Cooling | |
Backplate | Yes |
M.2 Heatsinks | Yes |
VRM Heatsinks | Yes |
Internal Ports | |
CPU Power Supply | 1x 8-Pin |
USB 3.0 / 3.1 / 3.2 (internal) Type C Header | 1 |
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
USB 3.0 (internal) Header | 1 |
USB 3.0 (internal) Possible Ports | 2 |
USB 2.0 (internal) Header | 1 |
USB 2.0 (internal) Possible Ports | 2 |
RGB / LED connectors | 2x Digital RGB (3-Pin 5VDG) |
Front Panel Audio Header | Yes |
External Ports | |
USB4 Gen 3×2 (external) Type C | 1 |
USB 3.2 (external) Type C | 1 |
USB 3.1 (external) Type A | 1 |
USB 3.0 (external) Type A | 3 |
USB 2.0 (external) Type A | 2 |
Display Connectors | Display Port (1x), HDMI (1x) |
Storage Ports | |
M.2 PCIe 4.0 x4 | 1 |
M.2 PCIe 5.0 x4 | 1 |
SATA 6G (internal) | 4 |
Expansion Slots | |
PCIe x16 slots (total) | 1 |
Fan Header | |
4 Pin Fan Connectors | 3 |
Audio | |
Soundchip | Realtek ALC1220P |
Lighting | |
Lighting / RGB | Yes |
