ASUS ROG Crosshair X870E Hero Motherboard, AMD X870E, Sockel AM5, DDR5

• 2x PCIe 5.0 x16 (x16), 2x PCIe 4.0 (x16) with Q-Release
• 4x DIMM slots for max. 192 GB DDR5 RAM up to 8600 MHz (OC)
• 5x M.2 (3x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
• 2x USB4, 2x USB-C 3.1 and 6x USB 3.1 on the I/O panel
• OC features: 22-phase VRMs, CMOS reset, Digi+ VRM
• A total of 7x 4-pin PWM fans supported

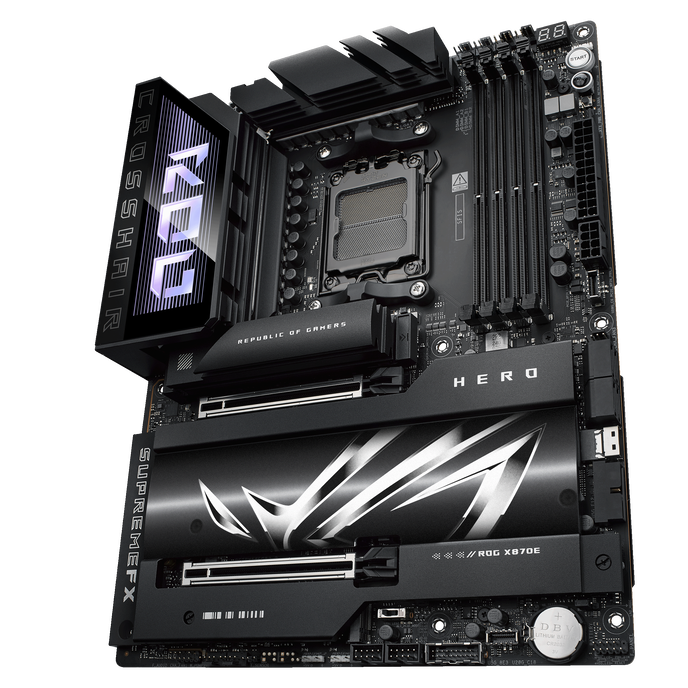

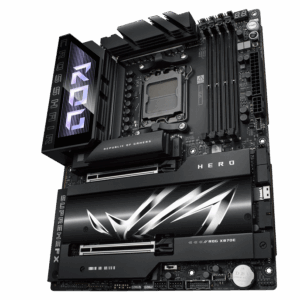

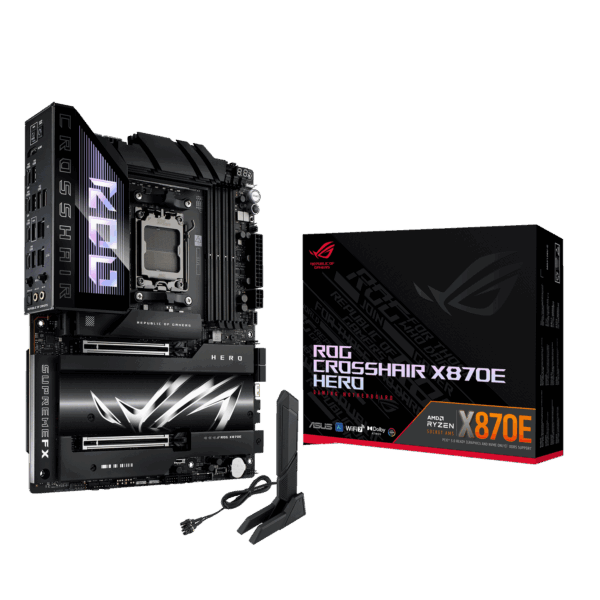

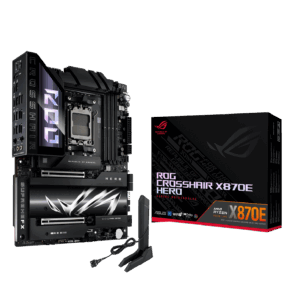

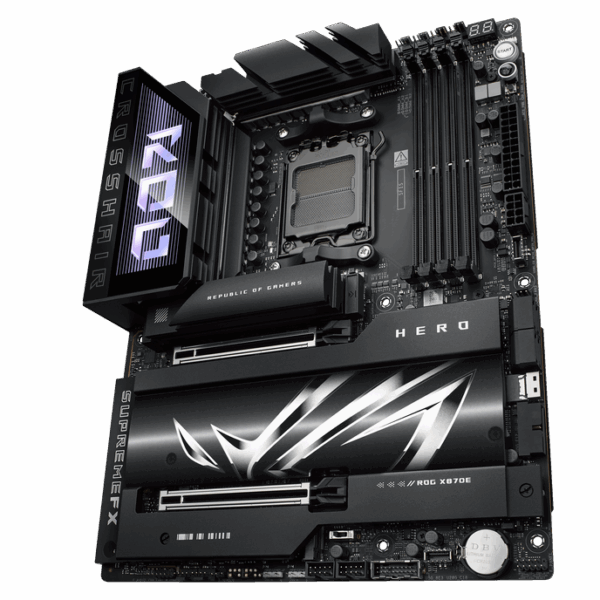

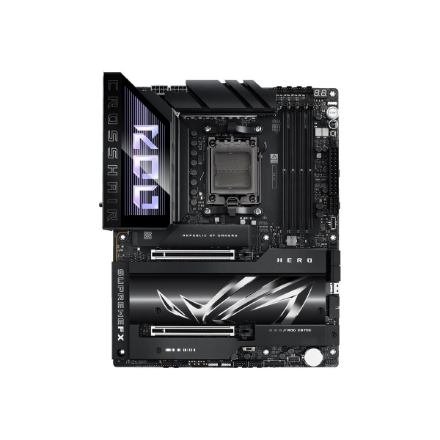

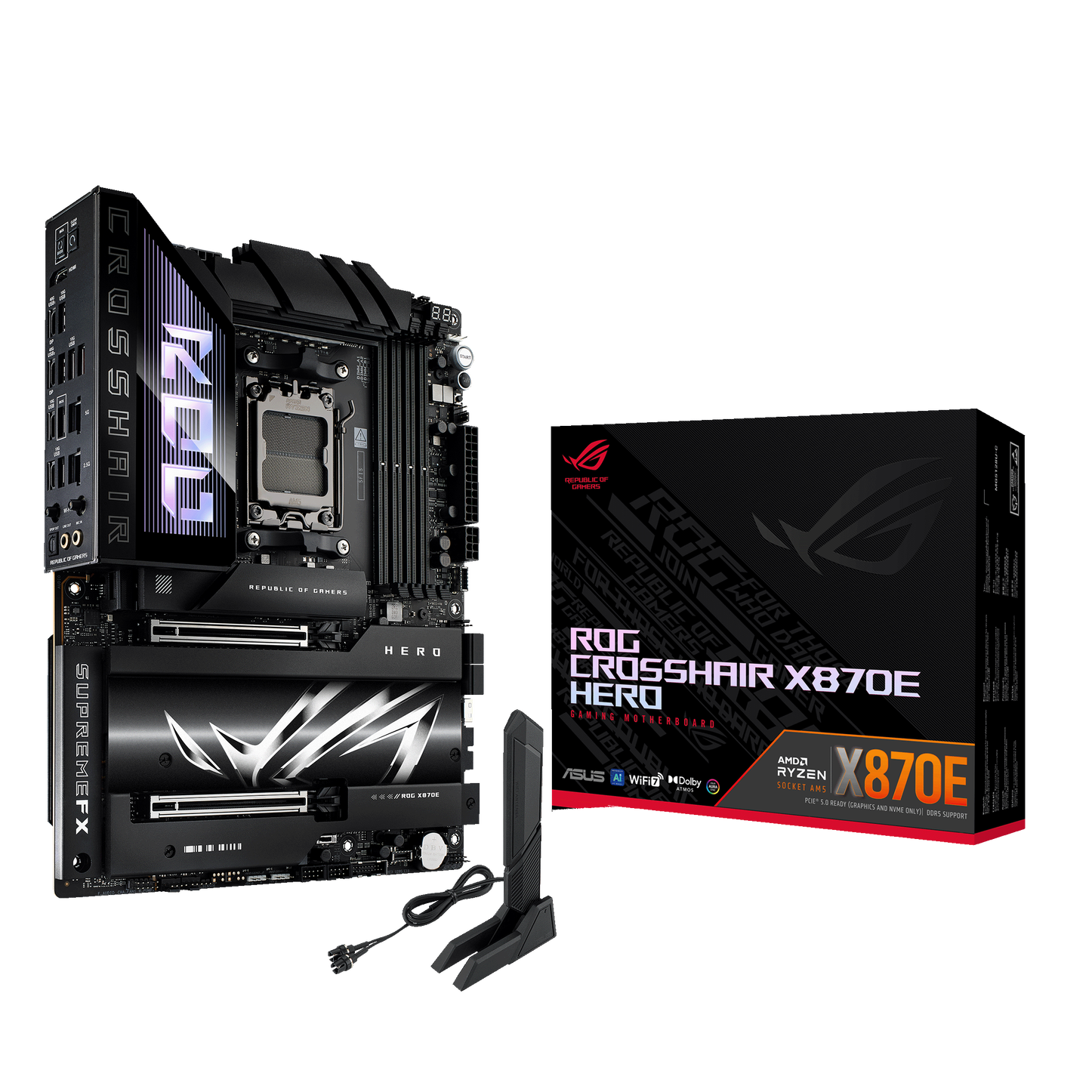

ASUS ROG CROSSHAIR X870E HERO: ATX motherboard with AMD AM5 socket and X870E chipset

The ASUS ROG CROSSHAIR X870E HERO is equipped with the high-end X870E chipset for AMD’s Ryzen 9000 series processors and offers numerous features for enthusiasts. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

Additionally, the AMD X870E motherboard provides USB 4.0, now available as standard, achieving data transfer rates of up to 40 Gbit/s. Furthermore, the ASUS ROG CROSSHAIR X870E HERO supports PCIe 5.0, offering you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Perfectly equipped for overclocking

The motherboard is designed for overclocking, allowing you to enjoy even demanding games. The voltage regulators with 22 virtual phases provide 110 A to ensure stable power supply to the CPU, guaranteeing high clock rates over an extended period. Additional features include DIGI+ VRM for adjusting VRM voltage and frequency modulation, BIOS Flashback, and Clear CMOS, allowing you to restore the PC if something goes wrong. As usual, the DDR5 RAM can also be pushed to higher clock speeds.
