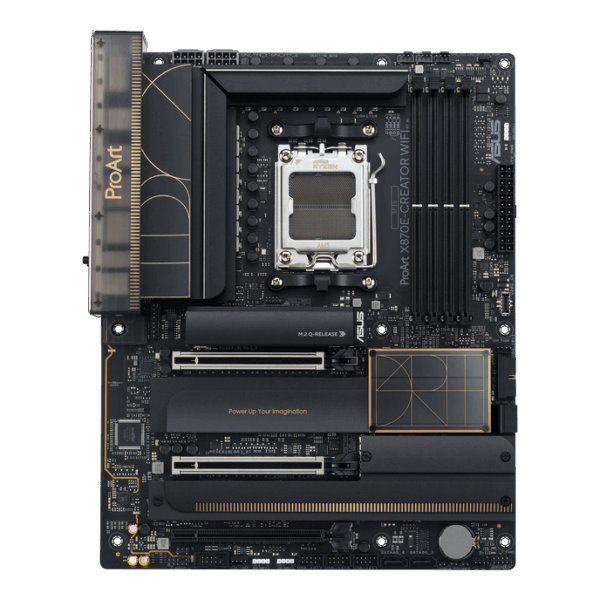

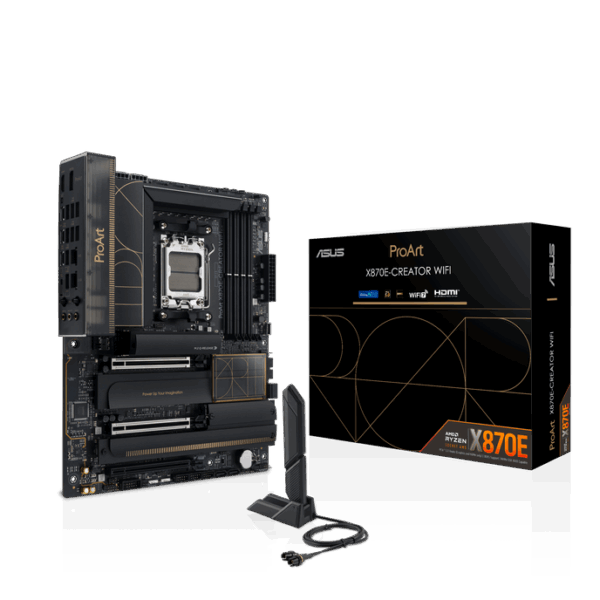

ASUS ProArt X870E-Creator WiFi Motherboard, AMD X870E, Socket AM5, DDR5
90MB1IG0-M0EAY0
479,75 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-18*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
ATX motherboard with X870E chipset, 2x PCIe 5.0 x16 / 1x PCIe 4.0 x4, 2x USB4 / 2x USB-C 3.2 / 7x USB 3.1 / 1x USB 3.0 / 4x USB 2.0, 4x M.2 (2x PCIe 5.0, 2x PCIe 4.0), 4x SATA 6G, 8x 4-Pin PWM headers
- 2x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
- 4x DIMM slots for up to 192 GB DDR5 RAM up to 8000 MHz (OC)
- 4x M.2 (2x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
- 2x USB4, 2x USB-C 3.2, 7x USB 3.1, 1x USB 3.0, and 4x USB 2.0 on the I/O panel
- OC features: 16+2+2 VRMs, Digi+
- Total of 8x 4-Pin PWM fans supported
ASUS PROART X870E-CREATOR WIFI: ATX Motherboard with AMD AM5 Socket and X870E Chipset
The ASUS PROART X870E-CREATOR WIFI comes equipped with the high-end X870E chipset for AMD’s Ryzen 9000 series processors and offers a range of features for enthusiasts, gamers, and content creators. The Ryzen 9000 processors also utilize the reliable AM5 socket (LGA 1718).
The AMD X870E motherboard supports USB 4.0, providing data transfer rates of up to 40 Gbps as standard. Additionally, the ASUS PROART X870E-CREATOR WIFI supports PCIe 5.0, offering twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Designed for Demanding Applications and Impressive Aesthetics
The ASUS PROART X870E-CREATOR WIFI is built for high-end gaming, ensuring smooth performance even in demanding games. The high-quality power stages provide stable power to the CPU, allowing it to maintain high clock speeds over extended periods. As usual, DDR5 RAM can be pushed to higher clock rates.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
305 mm
|
|
Width
|
244 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD X870E
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
5200 MT/s
|
|
Max. Memory Speed (OC)
|
8000 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 10 Gbit/s, 1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Cooling
|
|
|
M.2 Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 2.0 (internal) Header
|
3
|
|
Front Panel Audio Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 2×2 (external) Type C
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
7
|
|
USB 2.0 (external) Type A
|
1
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
M.2 PCIe 5.0 x4
|
2
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
3
|
|
PCIe 5.0 x16 mechanical slot
|
2
|
|
PCIe 4.0 x4 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek S1220A
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
