ASUS Prime Z790-P, Intel Z790 Motherboard – Sockel 1700, DDR5

Prekės kodas: 1273038

90MB1CK0-M1EAY0

0 out of 5
( Atsiliepimų dar nėra. )

223,32 €

LIKUTIS: Turime
2025-10-16
PASITEIRAUTI APIE PREKĘ

    PARAŠYKITE MUMS:

    Aprašymas

    ATX motherboard with Z790 chipset, 1x PCIe 5.0 x16 / 3x PCIe 4.0 x16 / 1x PCIe 3.0 x1, 1x USB-C 3.2 / 2x USB 3.1 / 6x USB 3.0 / 8x USB 2.0, 3x M.2 (3x PCIe 4.0) / 4x SATA 6G, 6x 4-pin PWM connectors, for DDR5 RAM



    • 1x PCIe 5.0 x16 (x16), 3x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1
    • DDR4 memory up to 5,600 MHz, up to 7,200 MHz with RAM overclocking
    • 3x M.2 slots, all 3x PCIe 4.0
    • USB on I/O panel: 1x USB 3.2 Type C, 1x USB 3.1, 2x USB 3.0 and 4x USB 2.0
    • OC features: 10+1 phase VRMs, BIOS Flashback, Clear CMOS button, VRM heatsink, DIGI+ VRM
    • A total of 6 connections for fans and pumps

    The ATX motherboard ASUS Prime Z790-P with Intel Z790 chipset in detail

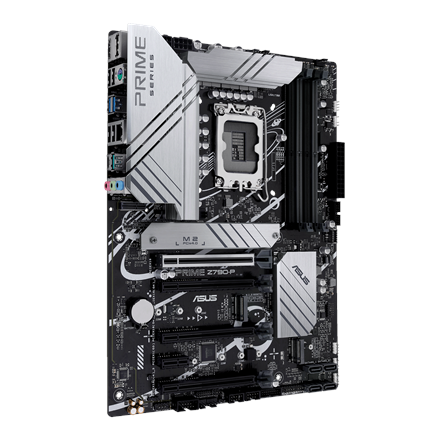

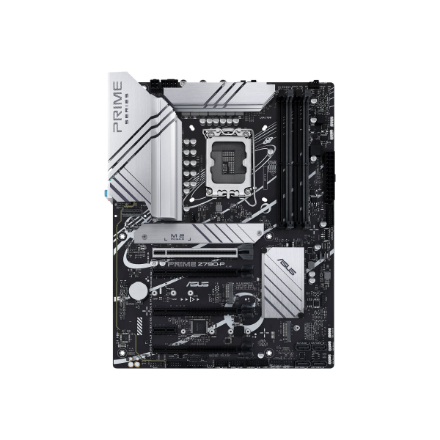

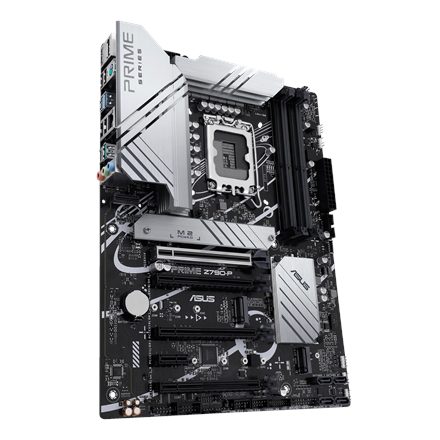

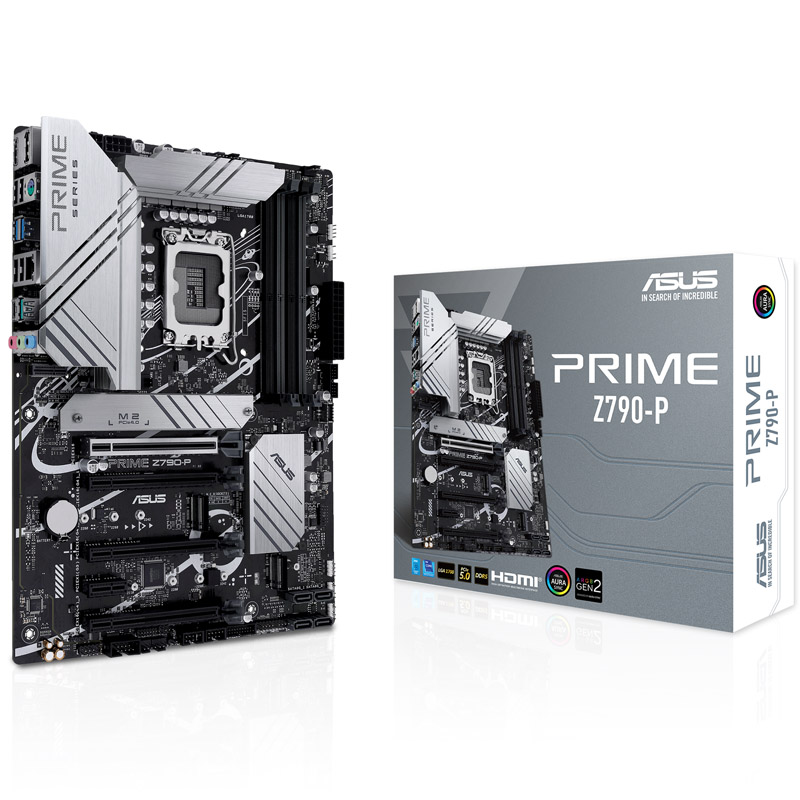

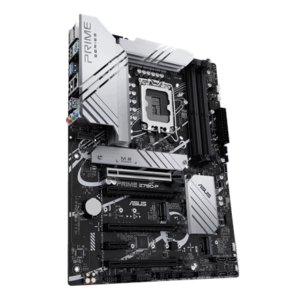

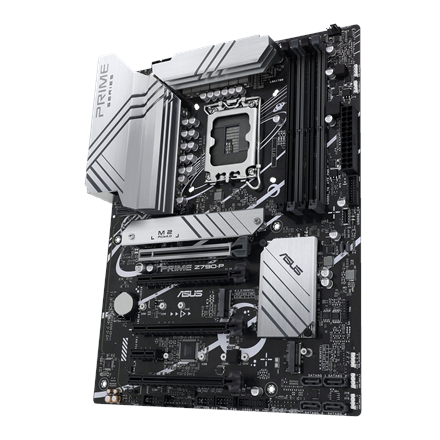

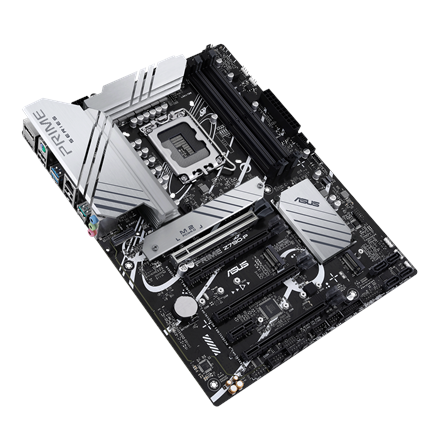

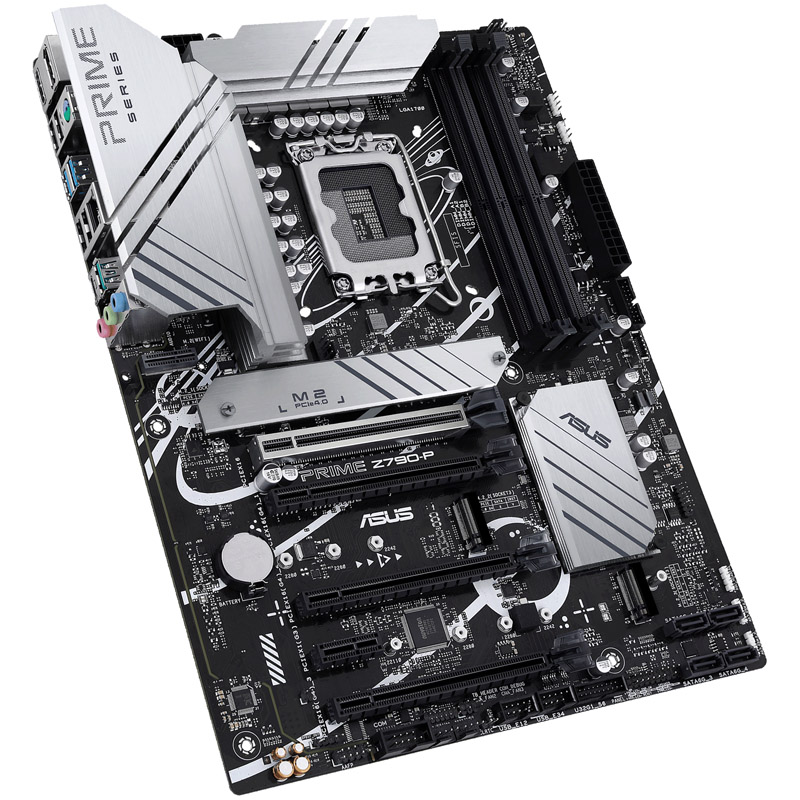

    The ASUS Prime Z790-P is an ATX motherboard featuring the high-end Intel Z790 chipset and LGA 1700 socket. This mainboard is suitable for desktop processors of the 12th and 13th generation Intel Core CPUs, codenamed Alder Lake and Raptor Lake. It supports DDR5 memory up to 7,200 MHz and, thanks to its outstanding power delivery, is excellent for overclocking.

    In addition to a reliable power supply with 10+1 phase VRMs, the ASUS Prime Z790-P impresses with further highlights that make overclocking your system significantly easier. DIGI+ VRM allows adjustment of VRM voltage and frequency modulation, while buttons for BIOS switch, ReTry, or system start provide security during record-breaking overclocking attempts.

    Note: This motherboard supports DDR5 standard memory.For the best possible processor performance, it is recommended to regularly update the motherboard BIOS. This is especially important for motherboards that may have been shipped with an early BIOS version from the manufacturer.

    Technical Details:

    • Form Factor:
      ATX (305 x 234 mm)
    • Chipset:
      Intel Z790
    • Socket:
      LGA 1700 (for Intel CPUs of the 12th, 13th, and 14th Core Generation)
    • RAM:
      4x DDR5 (5,600 MHz, up to 7,200 MHz via OC)
      Dual-Channel
      Max. 128 GB
    • Slots (physical):
      1x PCIe 5.0 x16 (electrical x16, CPU)
      3x PCIe 4.0 x16 (electrical x4, chipset)
      1x PCIe 4.0 x1 (chipset)
    • Internal Connectors:
      4x SATA 6G
      1x M.2 (PCIe 4.0 x4, 2242-22110, CPU)
      1x M.2 (PCIe 4.0 x4, 2242-2280, chipset)
      1x M.2 (PCIe 4.0 x4 and SATA, 2242-22110, chipset)
      1x Thunderbolt 4 (USB4)
      1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbit/s)
      4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
      4x USB 2.0 (2 headers, max. 480 Mbit/s)
      1x COM Port Header
      1x CPU Over Voltage Jumper
      1x Front Panel Audio Header (AAFP)
      1x Power Button
      1x SPI TPM Header (14-1 pin)
      1x 20-5 pin System Panel Header with Chassis Intrude Function
      1x Clear CMOS Header
      1x S/PDIF Out Header
    • Fan Headers:
      1x CPU Fan (4-Pin)
      1x CPU OPT Fan (4-Pin)
      1x AiO Pump (4-Pin)
      3x Chassis Fans (4-Pin)
    • RGB Headers:
      2x 4-Pin RGB (12 V)
      3x 3-Pin ARGB (5 V)
    • External Connectors:
      1x PS/2 (Mouse/Keyboard)
      1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
      1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
      2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
      4x USB 2.0 (Type A, max. 480 Mbit/s)
      1x HDMI
      1x DisplayPort
      1x RJ-45 (max. 2.5 Gbit/s, Realtek)
      3x 3.5 mm Jack (Realtek 7.1)
    • Power Supply:
      1x 24-Pin ATX
      1x 8-Pin ATX/EPS 12V
      1x 4-Pin PCIe ATX
    Colour
    Primary Colour
    Black
    Secondary Colour
    Silver
    Dimensions
    Length / Depth
    30.5 cm
    Width
    24.4 cm
    Form Factor
    Motherboard formfactor
    ATX
    CPU
    CPU Manufacturer
    Intel
    CPU Socket
    1700
    Motherboard
    Motherboard Chipset
    Intel Z790
    Memory
    Max. Memory
    128 GB
    Memory Type
    DDR5
    Memory Form Factor
    DIMM
    Memory slots
    4x
    Wi-Fi & LAN
    LAN
    Yes
    LAN Ports
    1x 2.5 Gbit/s
    Wi-Fi / Bluetooth
    No
    Internal Ports
    CPU Power Supply
    1x 4-Pin, 1x 8-Pin
    USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
    1
    USB 3.0 (internal) Possible Ports
    4
    RGB / LED connectors
    2x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
    External Ports
    USB 3.2 (external) Type C
    1
    USB 3.1 (external) Type A
    1
    USB 3.0 (external) Type A
    2
    Display Connectors
    Display Port (1x), HDMI (1x), Thunderbolt 4 (1x)
    Storage Ports
    M.2 PCIe 4.0 x4
    3
    M.2 PCIe 4.0 x4 & SATA 6G
    1
    SATA 6G (internal)
    4
    Expansion Slots
    PCIe x16 slots (total)
    4
    PCIe x1 slots (total)
    1
    PCIe 5.0 x16 mechanical slot
    1
    PCIe 4.0 x16 mechanical slot
    3
    PCIe 4.0 x1 mechanical slot
    1
    Fan Header
    4 Pin Fan Connectors
    6
    Lighting
    Lighting / RGB
    No
