ASUS Prime B860-Plus WiFi pagrindinė plokštė, LGA 1851, Intel B860, ATX, DDR5
Prekės kodas: 1246525
90MB1K50-M0EAY0
200,47 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- Slots: 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 3x PCIe 4.0 x1
- RAM: 4x DIMM slots supporting up to 192GB DDR5 RAM at up to 8,200 MT/s
- Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA
- USB: 1x USB-C 3.2, 2x USB 3.1, 1x USB 3.0, and 4x USB 2.0
- Cooling: 7x 4-pin PWM headers for fans and radiators
- Connectivity: Wi-Fi 6E and Bluetooth 5.3

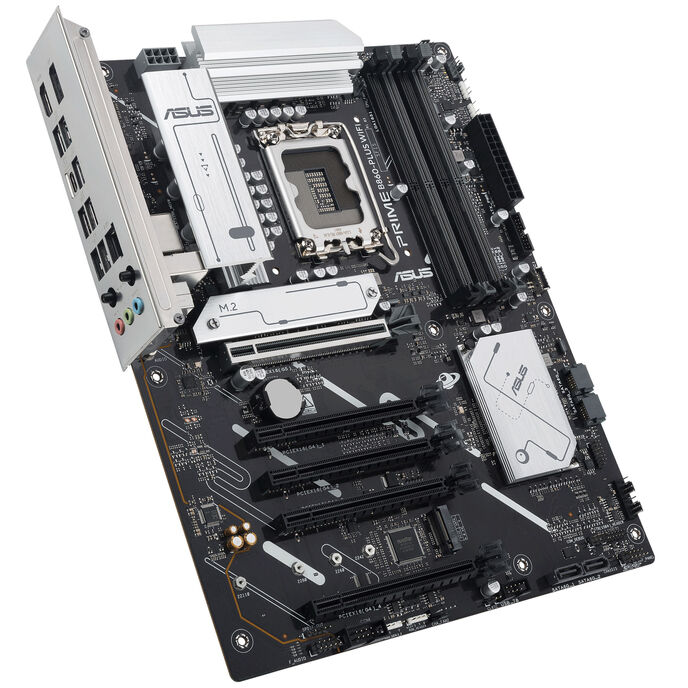

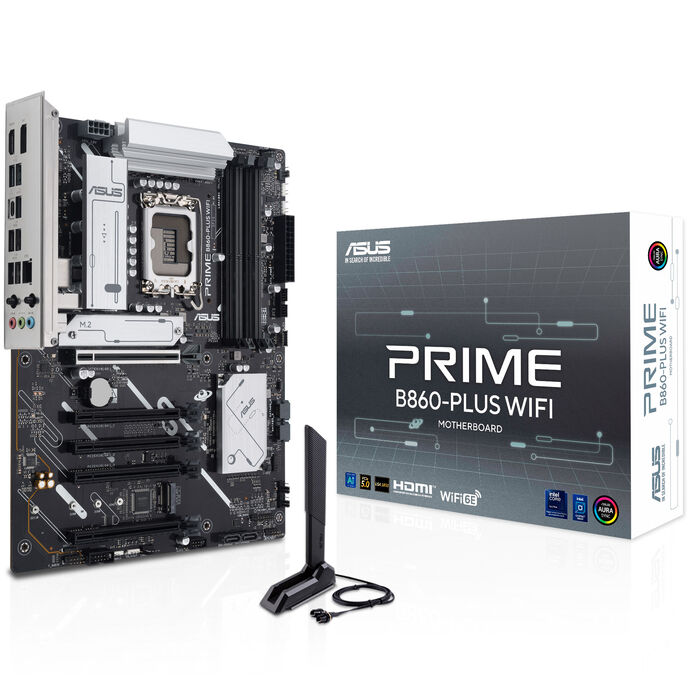

ASUS Prime B860-Plus WiFi: ATX Motherboard with Intel LGA 1851 Socket and B860 Chipset
The ASUS Prime B860-Plus WiFi is an ATX motherboard featuring the mid-range Intel B860 chipset and the Intel LGA 1851 socket. It supports Intel Arrow Lake-generation processors, making it a great choice for gamers who don’t require CPU overclocking.
Additionally, B860 motherboards support USB4, enabling ultra-fast data transfer rates of up to 40Gbps. The ASUS Prime B860-Plus WiFi also provides PCIe 5.0 for graphics cards and M.2 SSDs but does not support lane splitting for the GPU expansion slot. DDR5 memory can be overclocked, ensuring you get the most out of your RAM.
Colour | |
Primary Colour | Black |
Dimensions | |
Length / Depth | 305 mm |
Width | 244 mm |
Height | 49 mm |
Form Factor | |
Motherboard formfactor | ATX |
CPU | |
CPU Manufacturer | Intel |
CPU Socket | 1851 |
Motherboard | |
Motherboard Chipset | Intel B860 |
Built-In I/O Shield | Yes |
Memory | |
Max. Memory | 192 GB |
Memory Type | DDR5 |
Memory Form Factor | DIMM |
System Memory Subtype | CUDIMM, UDIMM |
Max. Memory Speed (OC) | 8200 MT/s |
EEC Support | Yes |
Memory slots | 4x |
Performance Profile | Intel XMP 3.0 |
Wi-Fi & LAN | |
LAN | Yes |
LAN Ports | 1x 2.5 Gbit/s |
Wi-Fi / Bluetooth | Yes |
Wi-Fi Standard | Wi-Fi 6E |
Bluetooth Standard | 5.3 |
Cooling | |
Backplate | Yes |
M.2 Heatsinks | Yes |
VRM Heatsinks | Yes |
Internal Ports | |
CPU Power Supply | 1x 8-Pin |
USB4 (internal) Header | 1 |
USB 3.0 / 3.1 / 3.2 (internal) Type C Header | 1 |
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
USB 3.0 (internal) Header | 1 |
USB 3.0 (internal) Possible Ports | 2 |
USB 2.0 (internal) Header | 1 |
USB 2.0 (internal) Possible Ports | 2 |
RGB / LED connectors | 1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG) |
Front Panel Audio Header | Yes |
SPI TPM Header | Yes |
External Ports | |
USB 3.2 (external) Type C | 1 |
USB 3.1 (external) Type A | 2 |
USB 3.0 (external) Type A | 1 |
USB 2.0 (external) Type A | 4 |
Display Connectors | Display Port (1x), HDMI (1x) |
Storage Ports | |
M.2 PCIe 4.0 x4 | 1 |
M.2 PCIe 5.0 x4 | 1 |
SATA 6G (internal) | 4 |
Expansion Slots | |
PCIe x16 slots (total) | 3 |
Fan Header | |
4 Pin Fan Connectors | 7 |
Lighting | |
Lighting / RGB | Yes |
