ASUS Prime B850 Plus WiFi Motherboard, Socket AM5, AMD B850, ATX, DDR5
90MB1L80-M0EAY0
151,17 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
Pranešti kai prekė vėl bus prekyboje
- Aprašymas
- Atsiliepimai (0)
Aprašymas
ATX motherboard with AMD B850 chipset, supports PCI-Express 5.0, suitable for DDR5 RAM, with Wi-Fi and Bluetooth
- Slots: 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 2x PCIe 3.0 x16 (x1)
- RAM: 4x DIMM slots for up to 256 GB DDR5 RAM at 8,000 MHz
- Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
- USB: 1x USB-C 3.1, 3x USB-C 3.1, 2x USB 3.0, and 2x USB 2.0
- Cooling: 7x 4-pin PWM connectors for fans and radiators
- Connectivity: Wi-Fi 6E and Bluetooth 5.3

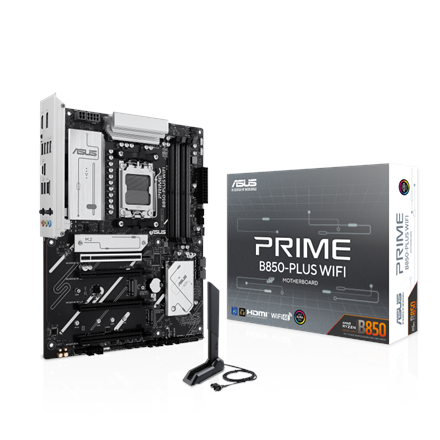

ASUS Prime B850-Plus WiFi: ATX Motherboard with AMD AM5 Socket and B850 Chipset
The ASUS Prime B850-Plus WiFi is an ATX motherboard featuring the mid-range AMD B850 chipset and the AMD AM5 socket. It supports Ryzen 9000, 8000, and 7000 series CPUs.
Graphics cards and NVMe SSDs connect via PCIe 5.0, while USB 3.1 enables data transfer speeds of up to 10 Gbps.
Overclocking for Gamers
To get the most out of your gaming PC, the CPU can be overclocked via the motherboard to achieve higher clock speeds. A stable power supply ensures that even high-end CPUs can run at full performance over long periods. DDR5 memory can also be pushed to its limits through overclocking. For safety and convenience, the ASUS Prime B850-Plus WiFi features BIOS Flashback and Clear CMOS.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
White
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B850
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
8000 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 6E
|
|
Bluetooth Standard
|
5.3
|
|
Cooling
|
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 4-Pin + 1x 8-Pin
|
|
USB4 (internal) Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
3
|
|
USB 2.0 (internal) Possible Ports
|
6
|
|
RGB / LED connectors
|
3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
3
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
2
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x2
|
1
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
2
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x16 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
7
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
