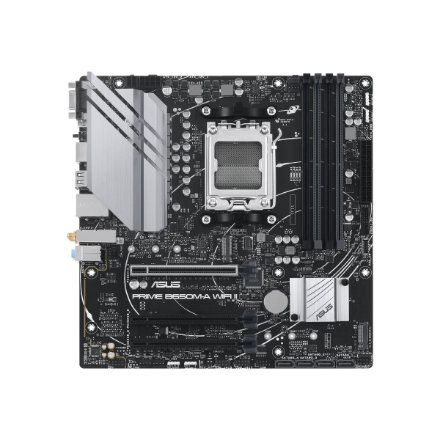

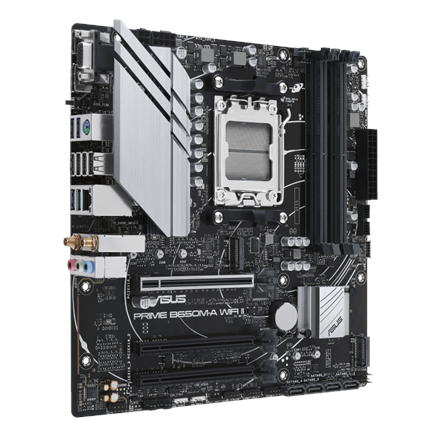

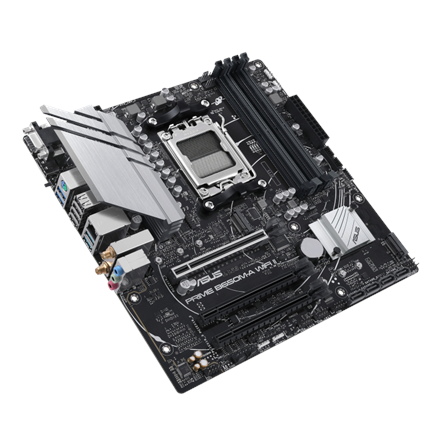

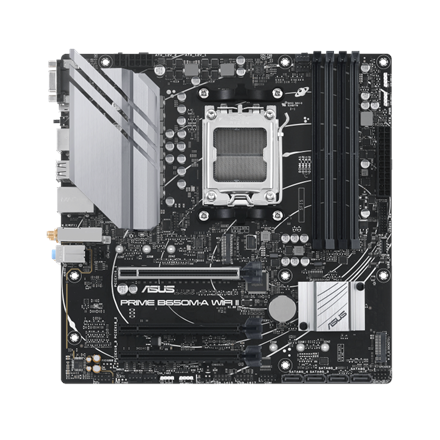

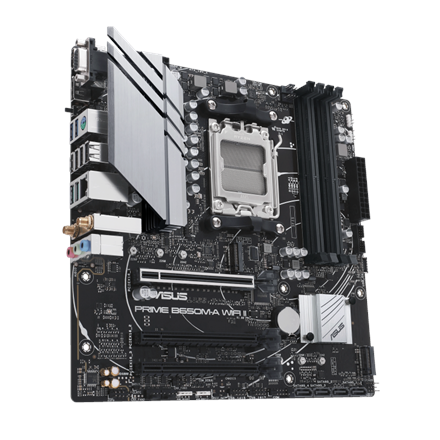

ASUS Prime B650M-A WIFI II motherboard, Socket AM5, AMD B650, Micro-ATX, DDR5
Prekės kodas: 1775412
90MB1EG0-M0EAY0
196,51 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-02-27*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Micro-ATX motherboard with AMD B650 chipset, socket: AMD AM5, PCIe 4.0 for graphics cards, suitable for DDR5 RAM, 2x M.2 SSDs, 2.5 Gbit LAN and WLAN with Bluetooth
- 1x PCIe 4.0 x16, 2x PCIe 4.0 x1
- Supports max. 128 GB DDR5 RAM up to 6,400 MHz (OC)
- 2x M.2 (of which 1x PCIe 5.0 and 1x PCIe 4.0) / 4x SATA 6G
- 2x USB-A 3.1, 2x USB-A 3.0, 4x USB 2.0 on the I/O panel
- OC features: 8+2 phase VRMs, BIOS Flashback, CMOS Reset
- Overall 5x 4-pin PWM fans possible
ASUS Prime B650M-A WIFI II: ATX Motherboard with AMD AM5
The ASUS Prime B650M-A WIFI II is equipped with the B650 chipset for AMD’s Ryzen 7000 series processors and comes with numerous features for gamers and overclockers. Since the Ryzen 7000 series processors require a new socket due to support for PCIe 5.0 and enhanced power delivery, the AM5 socket (LGA 1718) is used on the 600 series motherboards.
Despite the increased pin count, the actual size of the socket remains the same as older sockets, allowing most AM4 socket CPU coolers to be mounted on the motherboard.
The ASUS TUF Gaming B650M-E WIFI is designed for high-end gaming, enabling you to enjoy demanding games without interruptions. The high-quality voltage regulators with 8+2 virtual phases provide stable power to the CPU, ensuring high clock rates can be maintained over extended periods. Additional features include DIGI+ VRM for adjusting VRM voltage and frequency modulation, as well as BIOS Flashback and Clear CMOS, allowing you to use the PC again if something goes wrong. As usual, DDR5 RAM can also be pushed to higher clock rates.
Compatible only with AMD Ryzen 7000 series CPUs!
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed at the time of motherboard delivery. Updates can also bring fixes and optimisations.
Our King Mod Service is happy to perform a BIOS update to the latest version beforehand:
Please note that this may delay shipping preparation by 1 to 4 working days!
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey, Silver
|
|
Dimensions
|
|
|
Length / Depth
|
24.4 cm
|
|
Width
|
24.4 cm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B650
|
|
Memory
|
|
|
Max. Memory
|
128 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
6400 MT/s
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|

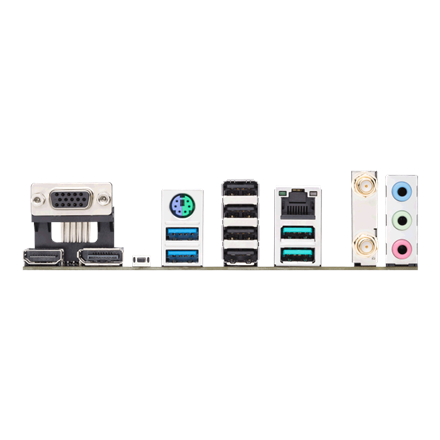

External Ports
|
|
|
USB 3.1 (external) Type A
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x), VGA (D-Sub) (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
2
|
|
PCIe 4.0 x16 mechanical slot
|
3
|
|
PCIe 4.0 x1 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
5
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Lighting Compatibility
|
ASUS Aura Sync
|
