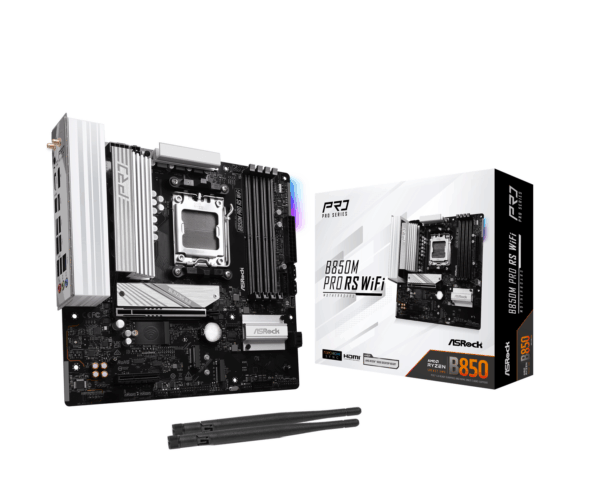

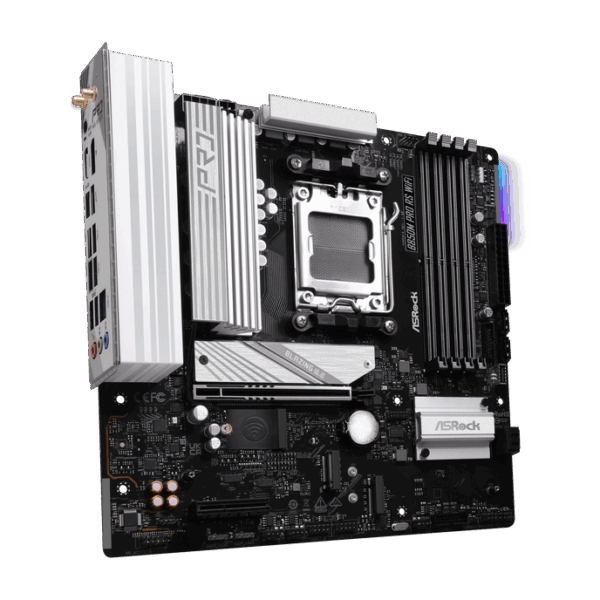

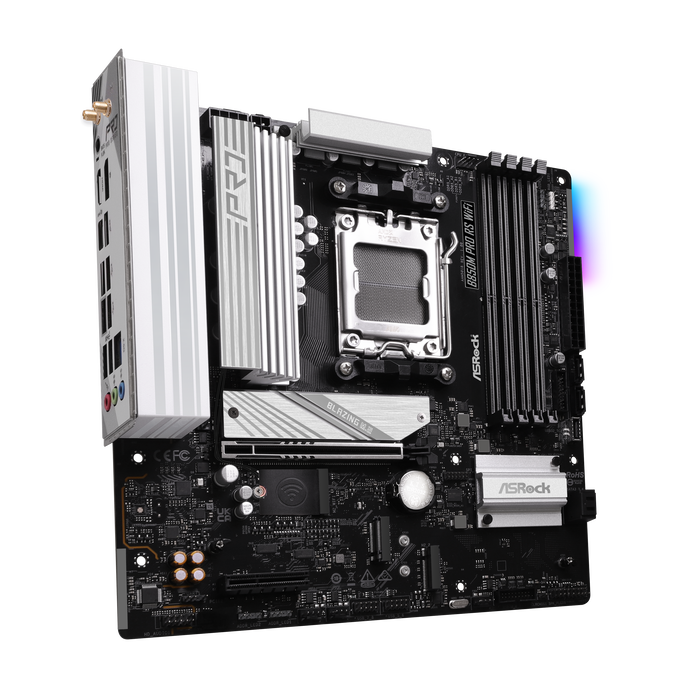

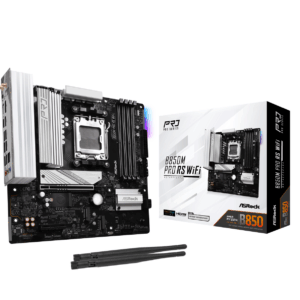

ASROCK B850M Pro RS WiFi pagrindinė plokštė, Sockel AM5, AMD B850, Micro-ATX, DDR5
Prekės kodas: 1244074
90-MXBR7-A0UAYZ
183,24 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x4 (x4)
- RAM: 4x DIMM slots for a maximum of 256 GB DDR5 RAM up to 8,000 MT/s
- Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
- USB: 1x USB-C 3.1, 1x USB 3.1, 2x USB 3.0 and 4x USB 2.0
- Cooling: 5x 4-pin PWM connectors for fans and radiators
- Connectivity: Wi-Fi 6E and Bluetooth 5.2
ASROCK B850M Pro RS WiFi: Micro-ATX motherboard with AMD AM5 socket and B850 chipset
The ASROCK B850M Pro RS WiFi is a Micro-ATX motherboard featuring the mid-range AMD B850 chipset and AMD AM5 socket. It supports Ryzen 9000, 8000, and 7000 CPUs.
Connection to graphics cards and NVMe SSDs is via PCIe 5.0. Data transfer rates of up to 10 Gbit/s are possible with USB 3.1.
Overclocking for Gamers
To get the most out of your gaming PC, the CPU can be overclocked via the motherboard to achieve higher clock rates. A stable power supply for the processor is ensured, allowing even high-end CPUs to operate at full performance for extended periods. You can also fully utilise the DDR5 memory with overclocking. In case of emergencies, the ASROCK B850M Pro RS WiFi offers BIOS flashback.
Colour | |
Primary Colour | Black |
Secondary Colour | White |
Form Factor | |
Motherboard formfactor | Micro-ATX |
CPU | |
CPU Manufacturer | AMD |
CPU Socket | AM5 |
Motherboard | |
Motherboard Chipset | AMD B850 |
Memory | |
Max. Memory | 256 GB |
Memory Type | DDR5 |
Memory Form Factor | DIMM |
Max. Memory Speed (OC) | 8000 MT/s |
EEC Support | Yes |
Memory slots | 4x |
Performance Profile | Intel XMP |
Wi-Fi & LAN | |
LAN | Yes |
LAN Ports | 1x 2.5 Gbit/s |
LAN Chip | Dragon RTL8125BG |
Wi-Fi / Bluetooth | Yes |
Wi-Fi Standard | Wi-Fi 6E |
Bluetooth Standard | 5.2 |
Cooling | |
Backplate | Yes |
M.2 Heatsinks | Yes |
VRM Heatsinks | Yes |
Internal Ports | |
CPU Power Supply | 1x 4-Pin + 1x 8-Pin |
USB 3.0 / 3.1 / 3.2 (internal) Type C Header | 1 |
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
USB 3.0 (internal) Header | 2 |
USB 3.0 (internal) Possible Ports | 4 |
USB 2.0 (internal) Header | 2 |
USB 2.0 (internal) Possible Ports | 4 |
RGB / LED connectors | 1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG) |
Front Panel Audio Header | Yes |
SPI TPM Header | Yes |
External Ports | |
USB 3.1 (external) Type C | 1 |
USB 3.1 (external) Type A | 1 |
USB 3.0 (external) Type A | 2 |
USB 2.0 (external) Type A | 4 |
Display Connectors | Display Port (1x), HDMI (1x) |
Storage Ports | |
M.2 PCIe 4.0 x4 | 2 |
M.2 PCIe 5.0 x4 | 1 |
SATA 6G (internal) | 4 |
Back Connect | |
Back Connect | No |
Expansion Slots | |
PCIe x16 slots (total) | 1 |
PCIe x4 slots (total) | 1 |
PCIe 5.0 x16 mechanical slot | 1 |
PCIe 4.0 x4 mechanical slot | 1 |
Fan Header | |
4 Pin Fan Connectors | 5 |
Lighting | |
Lighting / RGB | Yes |
