ASRock Arc B580 Challenger 12GB OC Grafikkarte, 12288 MB GDDR6
Prekės kodas: 1241886
90-GA5LZZ-00UANF
344,72 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- Efficient dual-fan cooler design with semi-passive cooling
- High GPU clock speed: 2,740 MHz
- 12 GB GDDR6 graphics memory
- Fast VRAM with an effective 19,000 MHz
- Wide memory interface of 192 bits
- Large memory bandwidth of 461 GB/s
- Video outputs: 3x DP 2.1 and 1x HDMI 2.1

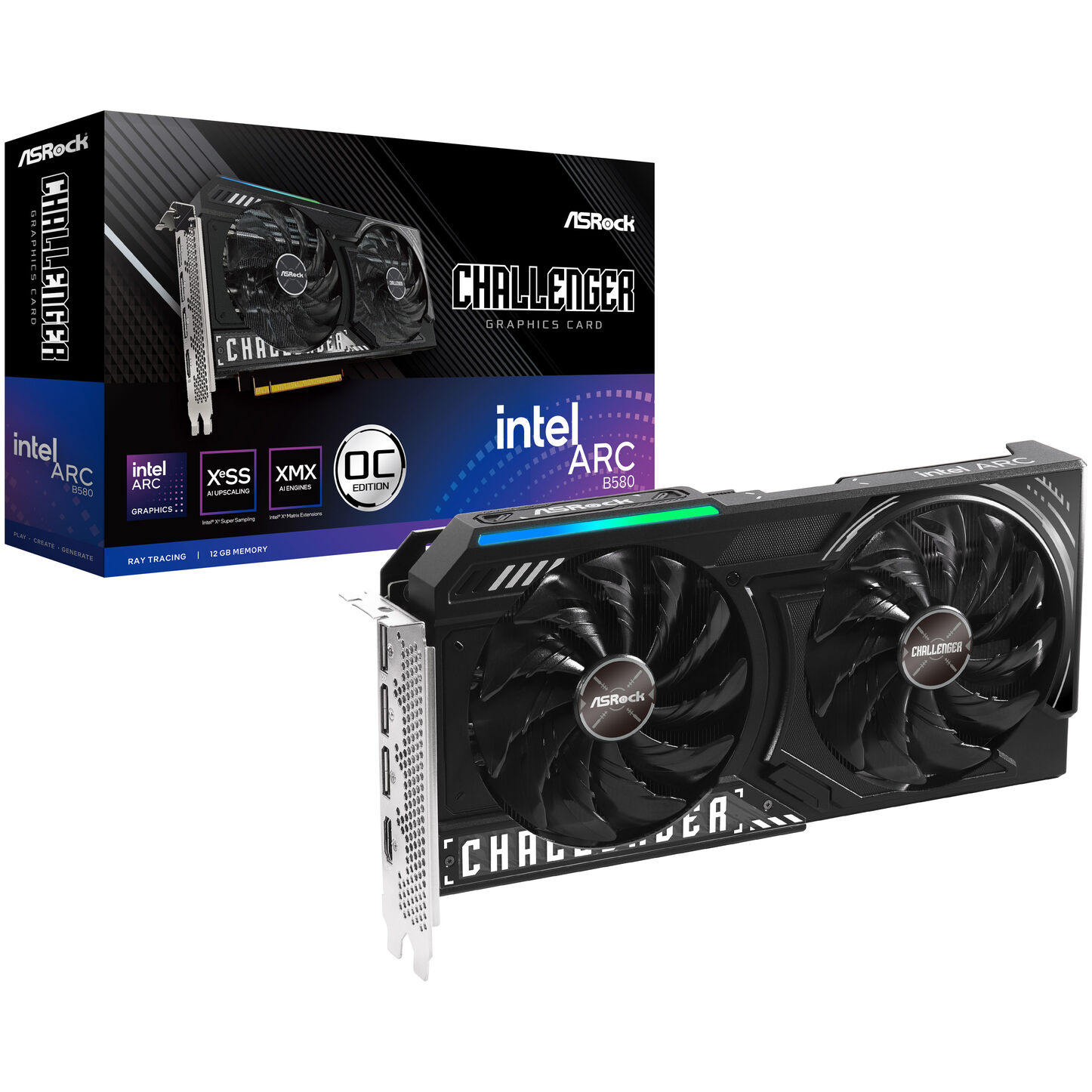

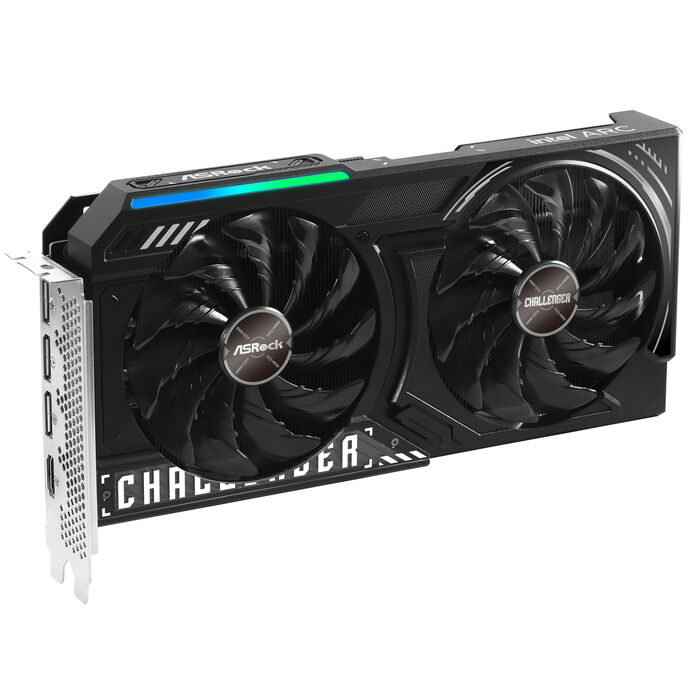

The ASRock Arc B580 Challenger 12GB OC Intel Battlemage graphics card in detail
The ASRock Arc B580 Challenger 12GB OC is equipped with a graphics processor developed by Intel specifically for gamers and content creators, along with fast GDDR6 graphics memory. This gaming graphics card is the perfect choice for smooth gaming at WQHD resolution with high graphics presets. In addition to high rasterisation performance, the Intel ARC B580 features dedicated ray tracing units that enable the calculation of stunning ray tracing effects in real-time.
Powerful graphics with 12 GB GDDR6 and efficient dual-fan cooling system
Intel’s BGM-G21 graphics chip based on the Xe2-HPG GPU architecture ensures high graphics performance. The maximum boost clock of the graphics processor is 2,740 MHz, while the 12 GB GDDR6 memory boasts an effective clock speed of 19,000 MHz. The Arc B580 Challenger 12GB OC is kept at low temperatures by the dual-fan design cooling system developed by ASRock.
Your case should provide at least two expansion slots for this graphics card. The manufacturer recommends a power supply with a minimum rated power of 650 watts.
Colour | |
Primary Colour | Black |
Dimensions | |
Length / Depth | 249 mm |
Width | 132 mm |
Height | 41 mm |
Weight | 720 g |
Graphics Card | |
GPU Series | Intel ARC |
GPU Model | Intel ARC B580 |
GPU Series Name | Intel ARC B580 |
Graphics Chip | Intel BMG-G21 |
Manufacturing Process | 5 nm |
Shader Units | 2560 |
Raytracing Cores / Ray Acceleratorss | 20 |
GPU Memory Type | GDDR6 |
Slot Type Standard | PCIe 4.0 |
GPU Memory Size (GB) | 12 |
GPU Memory Interface (bit) | 192 |
GPU Memory Bandwidth (GB/s) | 456 |
GPU Effective Memory Clock (MHz) | 2670 |
Xe Cores | 20 |
Clock Speeds | |
Max. GPU Clock (Boost) | 2740 MHz |
Max. Memory Clock | 19000 MHz |
Cooling | |
Number of GPU Fans | 2 |
Water Cooling | |
Watercooling | No |
Internal Ports | |
Required Power Connectors | 8-pin PCIe (1x) |
External Ports | |
Display Connectors | Display Port (3x), HDMI (1x) |
Expansion Slots | |
Expansion Slots Required | 2 Slots |
Standards / Specifications | |
Adaptive Sync Technology (G-SYNC / FreeSync) | adaptiveSync |
AI | |
AI Acceleration | Yes |
AI Accelerator | XeCores |
Lighting | |
Lighting / RGB | Yes |
