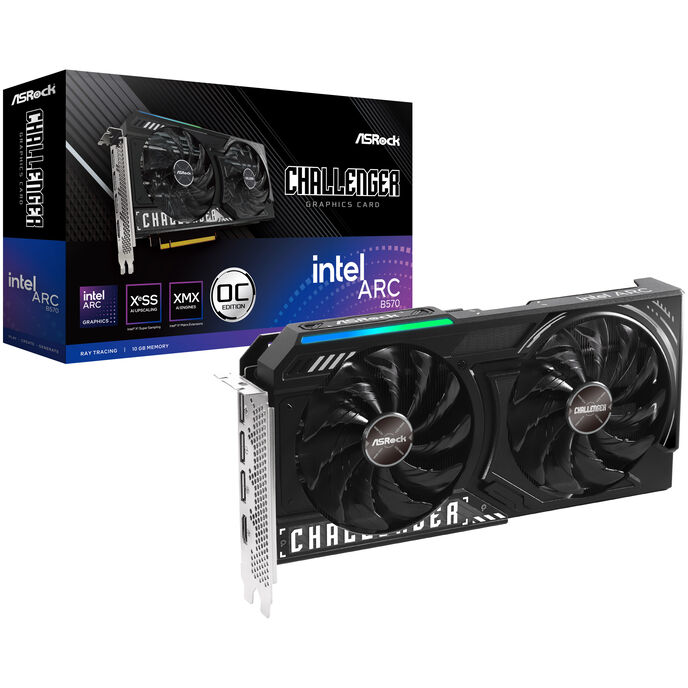

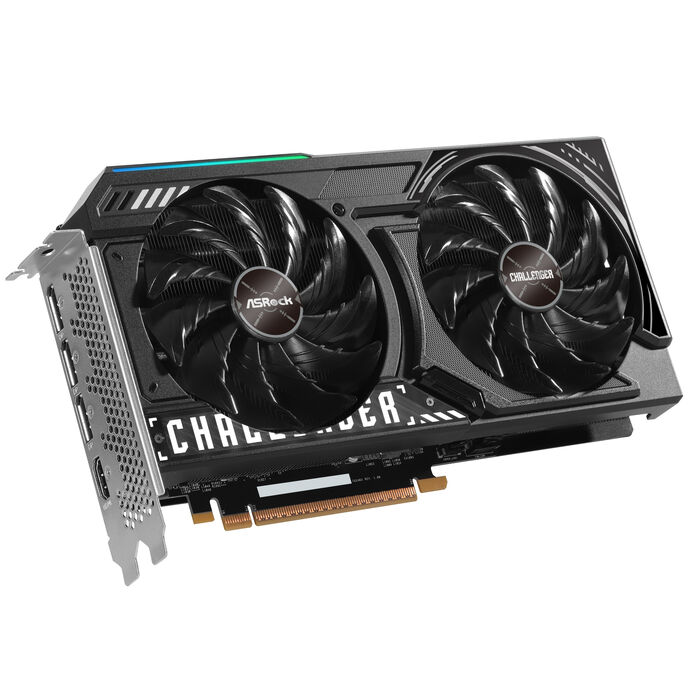

ASRock Arc B570 Challenger 10GB OC Grafikkarte, 10240 MB GDDR6
Prekės kodas: 1241508
90-GA5KZZ-00UANF
299,13 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- Efficient dual-fan cooler design with semi-passive cooling
- High GPU clock: 2,600 MHz
- 10 GB GDDR6 graphics memory
- Fast VRAM with effective 19,000 MHz
- Wide memory interface of 160 bits
- Large memory bandwidth of 461 GB/s
- Video outputs: 3x DP 2.1 and 1x HDMI 2.1
The ASRock Arc B570 Challenger 10GB OC Intel Battlemage Graphics Card in Detail
The ASRock Arc B570 Challenger 10GB OC is equipped with a graphics processor developed by Intel specifically for gamers and content creators, along with fast GDDR6 graphics memory. This gaming graphics card is the perfect choice for smooth gaming in Full HD and WQHD resolution with high graphics presets. In addition to high rasterisation performance, the ARC B570 features dedicated ray tracing units that enable the calculation of stunning ray tracing effects in real time.
Powerful Graphics with 10 GB GDDR6 and Efficient Dual-Fan Cooling System
Intel’s BGM-G21 graphics chip based on the Xe2-HPG GPU architecture ensures high graphics performance. The maximum boost clock of the graphics processor is 2,600 MHz, while the 10 GB GDDR6 memory boasts an effective clock frequency of 19,000 MHz. The Arc B570 Challenger 10GB OC is kept at low temperatures by the dual-fan cooling system developed by ASRock.
Your case should provide at least two expansion slots for this graphics card. The manufacturer recommends a power supply with a minimum output of 600 watts.
Colour | |
Primary Colour | Black |
Dimensions | |
Length / Depth | 249 mm |
Width | 132 mm |
Height | 41 mm |
Weight | 720 g |
Graphics Card | |
GPU Series | Intel ARC |
GPU Model | Intel ARC B570 |
GPU Series Name | Intel ARC B570 |
Graphics Chip | Intel BMG-G21 |
Manufacturing Process | 5 nm |
Shader Units | 2304 |
Raytracing Cores / Ray Acceleratorss | 18 |
GPU Memory Type | GDDR6 |
Slot Type Standard | PCIe 4.0 |
GPU Memory Size (GB) | 10 |
GPU Memory Interface (bit) | 160 |
GPU Memory Bandwidth (GB/s) | 380 |
GPU Effective Memory Clock (MHz) | 2500 |
Xe Cores | 18 |
Clock Speeds | |
Max. GPU Clock (Base) | 1700 MHz |
Max. GPU Clock (Boost) | 2600 MHz |
Max. Memory Clock | 19000 MHz |
Cooling | |
Number of GPU Fans | 2 |
Water Cooling | |
Watercooling | No |
Internal Ports | |
Required Power Connectors | 8-pin PCIe (1x) |
External Ports | |
Display Connectors | Display Port (3x), HDMI (1x) |
Expansion Slots | |
Expansion Slots Required | 2 Slots |
Standards / Specifications | |
Adaptive Sync Technology (G-SYNC / FreeSync) | adaptiveSync |
AI | |
AI Acceleration | Yes |
AI Accelerator | XeCores |
Lighting | |
Lighting / RGB | Yes |
