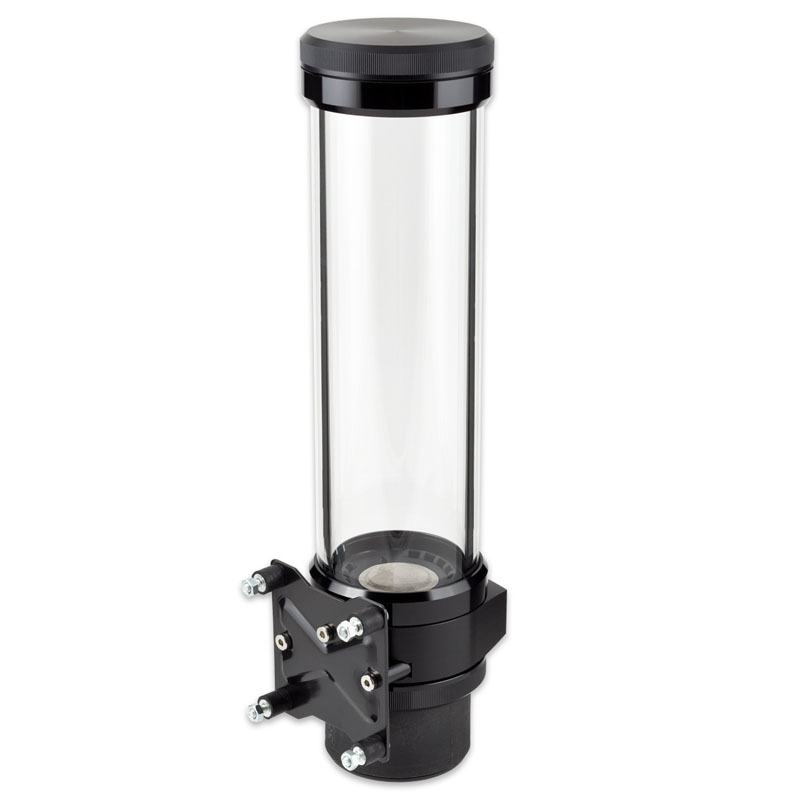

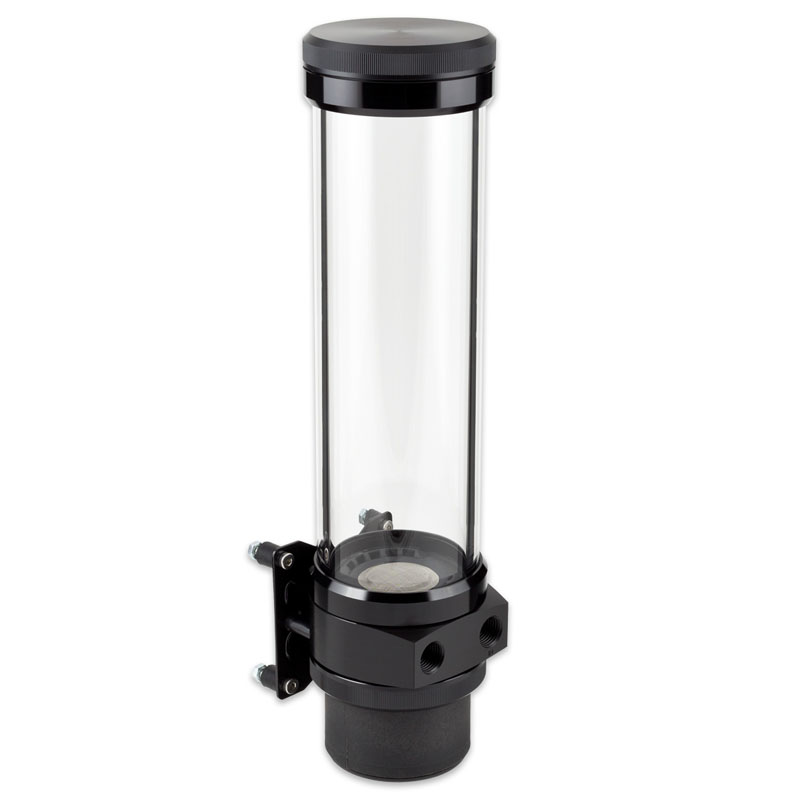

aqua computer ULTITUBE D5 200 reservoir with D5 PWM pump

Reservoir with a 470 millilitre capacity from aqua computer. The Reservoir comes with a D5 PWM pump and is made of resistant borosilicate glass. With the universal mounting bracket, the Reservoir can be mounted on the floor or on the wall.

The features of the ULTITUBE D5 200 Reservoir with D5 PWM pump at a glance:

• Reservoir from aqua computer with 470 ml capacity
• Includes D5 PWM pump
• Made of resistant borosilicate glass and acetal
• With removable stainless steel filter in the base
• Mounting material for wall and floor installation included

The features of the ULTITUBE D5 200 Reservoir with D5 PWM pump in detail

The ULTITUBE D5 200 Reservoir from aqua computer is equipped with a borosilicate glass tube. In contrast to commonly used acrylic glass, borosilicate glass has very high hardness and scratch resistance. It also has excellent chemical and thermal resistance and expands very little when heated.

Both ends of the glass tube are securely connected with black anodised aluminium metal rings that do not come into contact with the cooling medium. Due to the clever design, internal struts or additional tubes are not necessary. The lid and base of the ULTITUBE 200 D5 are made of resistant acetal and are screwed together with the aluminium rings and the tube.

The glass tube has a wall thickness of 5 mm and an outer diameter of 65 mm. In the base of the Reservoir, a filter made of stainless steel wire mesh is integrated. The filter captures particles and eliminates annoying air bubbles. The filter element is easily removable and can be cleaned under running water. The seal in the lid of the Reservoir is designed as a rubber mould for easy assembly and secure positioning when screwing the lid.

At the bottom of the ULTITUBE D5 200, an aqua computer D5 PWM pump is already mounted. The pump can be controlled via PWM signal, and the tacho signal is available for monitoring the pump function. The pump is attached using an aluminium ring at the bottom of the Reservoir. The Reservoir can be mounted on a side or rear wall, as well as standing upright. Corresponding brackets, suitable mounting materials, and four soft rubber decouplers are included in the delivery.

Attention: Use of the Reservoir without a pump is not possible.
