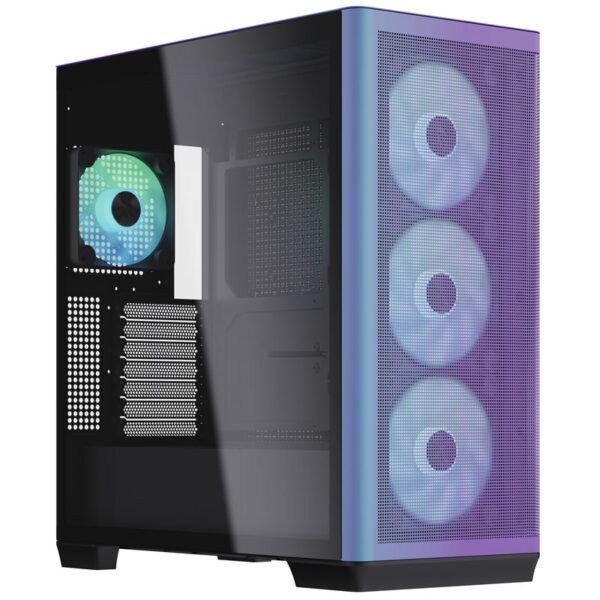

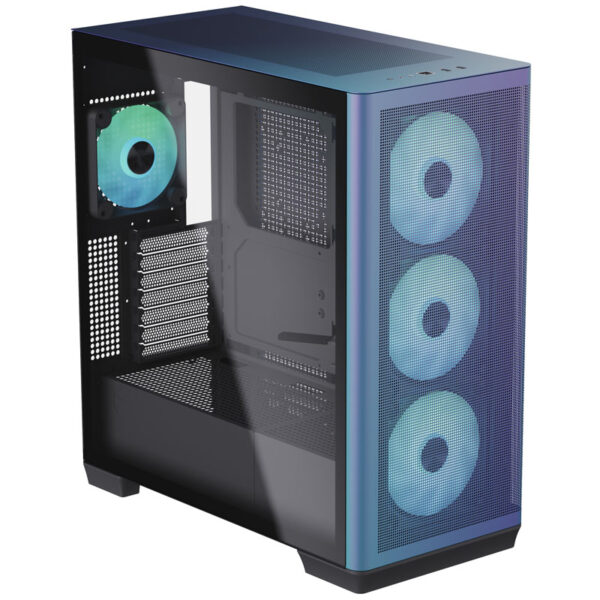

APNX C1 Mid-Tower ATX kompiuterio korpusas, Tempered Glass – ChromaFlair
Prekės kodas: @1248120
C1-CF-V1
119,22 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
Pranešti kai prekė vėl bus prekyboje
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- Elegant Mid-Tower for mainboards up to ATX
- Strikingly designed front made of mesh with rounded corners
- Left side panel with tempered glass, split right side panel with mesh
- 3x pre-installed 140mm ARGB PWM fans at the front
- 1x pre-installed 120mm ARGB PWM fan at the rear
- Room for up to 11x 120mm fans or 2x 360mm radiators
- Up to 360mm radiators on the side and top possible
- Room for GPUs up to 395mm and CPU coolers up to 166mm
- I/O-Panel with 1x USB-C, 1x USB-A 3.0 and LED control
- ARGB PWM hub with 5x ports included, controlle via motherbaord possible
Elegant Mid-Tower from APNX for Demanding Enthusiasts
The APNX C1 mid-tower is a particularly stylish ATX PC case with a restrained design that is suitable for style-conscious gamers. Particularly striking is the front with rounded edges and the large-area mesh, through which fresh air effortlessly enters the interior of the case. The right side panel is also equipped with plenty of mesh to allow airflow for side-mounted cooling as well as to drives and the back of the motherboard tray. A side panel made of tempered glass rounds off the stylish design of the APNX C1.
Ample Space for Well-Cooled Hardware
There is room inside for a Micro-ATX, Mini-ITX or ATX motherboard. Installed graphics cards may be 395 millimetres long; with an optionally available kit, you can also mount your GPU vertically. The interior is kept visually simple with panels and a power supply cover with mesh on the top. Perfectly placed grommets have also been designed for optimal cable management.
Pre-installed, Powerful F1 Fans from APNX
The three powerful 140mm ARGB PWM fans of the APNX F1 brand pre-installed on the front can be replaced by 120mm versions. A further three 120mm or two 140mm fans can be attached to the bracket at the lid, which is also equipped with mesh. A 120mm ARGB PWM fan is also pre-installed at the rear.
Optimised for Air Cooling…
You can remove the side panel at the front next to the mainboard and mount another three 120mm fans there, which can get fresh air or move warm air out of the interior through the mesh behind them. Behind the motherboard tray, another 120mm fan can be attached to one of the three drive slots on the specially designed bracket with ventilation holes to cool the CPU and surroundings from the rear. There, the right side panel is also equipped with mesh.
There is enough room for CPU coolers with 166 millimetres for most common models, such as the APNX AP1 CPU cooler, which, like the fans, fits seamlessly into the design of the APNX C1 thanks to its metal frame.
… or Water Cooling
Those who prefer a water-cooled system can attach a 280mm or 360mm radiator to the lid. A second, maximum 360mm radiator can be mounted vertically on the side. Another 120mm radiator can be attached to the rear.
Space for up to Three Drives, Easily Installed
Up to three SDD or HDD drives can be mounted on the bracket with air holes behind the motherboard tray. A fan can also be mounted there. The drives in particular benefit from the additional cooling provided by the mesh grille on the side panel. To make installation as easy as possible, the rear part of the right-hand panel can be removed, as can the entire tempered glass panel, the lid and bracket, the panel next to the mainboard tray and the front part of the PSU shroud. Underneath, there is room for a power supply unit with a length of 270mm.
Optimally Controlled
Last but not least, you will find an ARGB PWM hub in the case with a total of five ports for both PWM and ARGB connectors of fans. The PWM signal comes directly from the mainboard, the power from the SATA connection of the power supply. The ARGB signal is also fed from the motherboard. You can use the reset switch on the I/O panel to switch the lighting on and off, or switch between the motherboard connection and the hub. In addition to a USB-C and a USB-A 3.0 port, there is also an audio combination jack for headsets.
Technical Details:
- Size: 230mm x 502mm x 464mm (W x H x D)
- Material: Steel (case), tempered glass (side panel)
- Weight: ca. 9.5kg
- Colour: Black, ChromaFlair (front, roof, right side panel)
- Formfactor: ATX, Micro-ATX, Mini-ITX
- Fans possible:
3x 120mm / 140mm (front)
3x 120mm / 2x 140mm (roof)
3x 120mm (side)
1x 120mm (rear) - Fans pre-installed:
3x 140mm (front, APNX FP1, 140mm, ARGB, PWM)
1x 120mm (rear, APNX FP1, 120mm, ARGB, PWM) - Radiator mountings:
1x max. 360mm (side)
1x max. 280mm / 360mm (roof)
1x max. 120mm (rear) - Drive bays:
3x 3.5″ / 2.5″ (internal, rear of the mainboard tray) - PSU: 1x Standard ATX (optional)
- PCI slots: 7
- I/O-Panel:
1x USB-C
1x USB 3.0 (Typ A, USB 3.2 Gen 1, max. 5 Gbit/s)
2x USB 2.0 (Typ A, max. 480 Mbit/s)
1x 3.5mm (Audio-In / -Out)
1x Reset/LED control
1x Power - Max. GPU length: 395mm
- Max. height CPU cooler: 166mm
- Max. PSU length: 270mm
