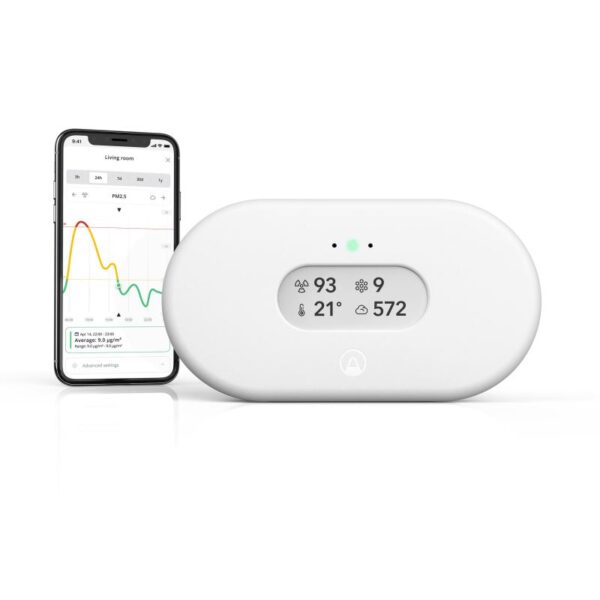

Airthings View Plus

Aprašymas

The most advanced air quality tech. 9 out of 10 people in the world breathe unsafe air according to WHO guidelines. With View Plus, you can keep your family safe from air pollutants: radon, particulate matter (PM), carbon dioxide (CO2), humidity, temp, airborne chemicals (VOCs) and air pressure. When there is so much that is out of your control—pollution, asthma, allergies, wildfire, virus you have more control than you think when it comes to indoor air quality with View Plus. Airthings View Plus is battery operated (or powered by USB), wireless and WiFi connected, includes a customizable display, app (iOS/Android) and online dashboard with full data and  reporting. When you know what’s in the air you breathe, small changes make a big difference.

USE: Great for family rooms and kitchens where the family gathers and spends time together.

CALM TECH DISPLAY – Customizable display and wave function to view pollutants with simple color coding
WIRELESS – WiFi connected and battery operated (battery lifetime up to 2 years) or plug in with USB
BUILD YOUR AIR QUALITY SYSTEM – Use Hub to bring other Airthings monitors online for access to data anytime, anywhere
APP / DASHBOARD – App and online dashboard with graphs, notifications and insights
SMART HOME INTEGRATIONS -Integrate with your smart home using IFTTT, Google Assistant and Amazon Alexa

EASY TO USE
Intuitive design with batteries included for quick and simple setup

PRODUCT FEATURES
SENSORS
Particulate Matter (PM1* and PM2.5), Radon, CO2, VOC, Temp, Humidity, Air Pressure

DISPLAY
2.9 ” 296128 pixels ePaper
Visual indicator: Red/Yellow/Green glow indicator

LONG BATTERY LIFE
WiFi: up to 2 years (depends on sensor interval and WiFi router)
SmartLink: up to 2 years (depends on sensor interval)
Optional operation on USB (runs from batteries if removed)

MOUNTING
Supports wall mounting or placement on table
Optimum product placement is breathing height of 110 – 170 cm (3 – 6 ft) above floor. Only suitable for mounting at heights below 200 cm (6.56 ft). Mounting height is not allowed to exceed 200 cm (78.7 in)
Double-sided tape for wall mount included in package
Alternatively use 3 screws of type countersunk M4 (not included)

APP, DASHBOARD AND CONNECTIVITY
Free mobile app for iOS and Android with notifications
Web dashboard with sensor data
Wireless connection over WiFi or Airthings
SmartLink.
Bluetooth for on boarding and daily use configuration
Hub functionality is enabled when connected with WiFi and USB cable is plugged into device 802.11 b/g/n (2.4 GHz) WiFi, Airthings
SmartLink & Bluetooth Low Energy

RECOMMENDED OPERATING CONDITIONS
Temperature 4 to 40 °C (39 to 104 °F),
Humidity 0 % to 85 % (non condensing).
Prolonged exposure at very dry or humid conditions may affect the visual appearance of the display. Exposure to very humid conditions can degrade the radon sensor.

PHYSICAL SPECIFICATIONS
Weight: 360 g (with batteries, without cable)
Dimensions: 17 x 9 x 3.3 cm (Power: 6 AA batteries or USB
PRIVACY: Noise Indicator used for measuring sound pressure level only, no privacy concerns (Noise is only enabled for Airthings for Business)

TECHNICAL SPECIFICATION
TEMPERATURE / HUMIDITY / PRESSURE
Technology: solid state sensor
Sensor interval 5 min (2.5 min with USB cable connected)
Temperature Accuracy: ±0.5 °C (±1 °F)
Humidity Accuracy: ±3 %RH
Pressure Accuracy: ±0.6 mBar/hPa(0.02 inHg)

RADON
Radon sampling: Passive diffusion chamber
Detection method: Alpha spectrometry
Sensor interval 60 min (fixed)
Measurement range: 0 – 20,000 Bq/m3 (0 – 500 pCi/L)
Accuracy/precision at 200 Bq/m3 (5.4 pCi/L):
After 7 days ~ 10 % After 2 months ~ 5 %

PARTICULATE MATTER
Technology: laser scattering based optical particle counter
Measurement interval is configurable to 10 min or 60 min (2.5 min with USB cable connected)
Particle size detection range: 300 nm to 10 µm
Measurement Range: 0 ~ 500 µg/m3
Measurement Accuracy: below 150 µg/m3: ± (5 µg/m3 + 15%), above 150 µg/m3: ± (5 µg/m3 + 20%)
Calibrated with a GRIMM reference instrument using cigarette smoke source
Classified as Class 1 Laser per IEC60825-
1 Ed. 3. This device complies with 21 CFR 1040.10 and 1040.11, except for conformance with IEC 60825-1 Ed. 3., as
described in Laser Notice No. 56, dated May 8, 2019. Caution: These devices
contain one or more lasers. Usage other than as described in the user guide, repair, or disassembly may cause damage,
which could result in hazardous exposure to infrared laser emissions that are not visible. This device should be serviced by
Airthings or an authorized service provider.

VOC
Technology: Metal-oxide based gas sensor
Measurement interval 5 min (fixed)
Settling Time: ~7 days
Measurement range: 0 – 10 000 ppb
Self-calibrated using an automatic baseline algorithm that updates continuously based
on the cleanest air the sensor is exposed to

CO2
NDIR Sensor (Non-Dispersive Infra-Red):
Measurement interval 5 min (2.5 min with USB cable connected)
Measurement range 400 – 5000 ppm
Accuracy ±50 ppm ±3 %RH within
10 – 35 °C (50 – 95 °F) and 0 – 80%RH, after initial calibration time of 7 days
Self-calibrated using an automatic baseline algorithm that updates once a week

SENSOR DATA UPDATE INTERVAL
Sensor data in app (iOS/Android) and online dashboard update interval depends
on connection type:
WiFi: same as PM measurement interval (10 min or 60 min when battery operated, 2.5 min with USB cable connected)
SmartLink: 5 min when battery operated, 2.5 min with USB cable connected

RADIO SPECIFICATIONS
BLUETOOTH LOW ENERGY
Output power: <5 mW
Frequency Range (MHz): 2400.0 – 2483.5
AIRTHINGS SMARTLINK
Output power: <25 mW
Frequency range (MHz): Europe 868 – 870
802.11 b/g/n (2.4 GHz) WiFi
Output power: <50 mW
Frequency Range (MHz): 2400.0 – 2483.5

REQUIREMENTS
One of the 3 latest major versions of iOS or Android, supporting Bluetooth 4.2 or later

PACKAGE DIMENSION: 200 x 115 x 60 mm / 511 g

PACKAGE CONTENT

• Air Quality Monitor
• 6 AA batteries
• USB cable
• Quick Start and Regulatory Booklet
• Double-sided tape

WANT TO KNOW MORE?
Detailed information and FAQs on our sensors can be found here: help.airthings.com/en/collections/2683690-understandingradon-and-iaq

Airthings 5 Year Warranty
Only Airthings consumer products purchased from Airthings.com or our Authorized retailers/resellers.
Registration of your Airthings product must occur within 30 days from the time of purchase in order to be eligible extension. The extended warranty increases your 12 month or 24 month warranty to 5 years from the time of purchase.
Get in touch with our Customer Success team to make a claim. You must have a copy of the original purchase receipt in order to file the claim if you choose not upload the receipt during the registration.
