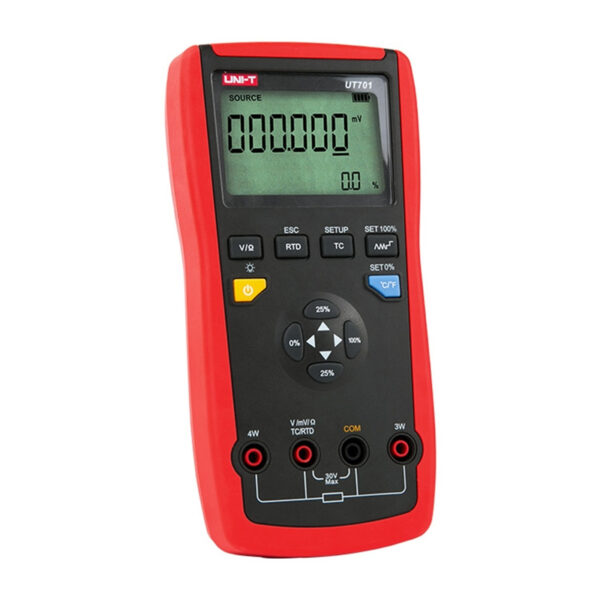

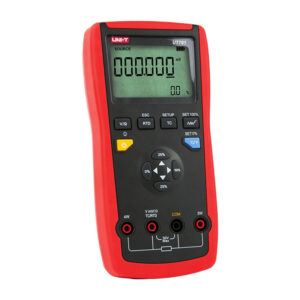

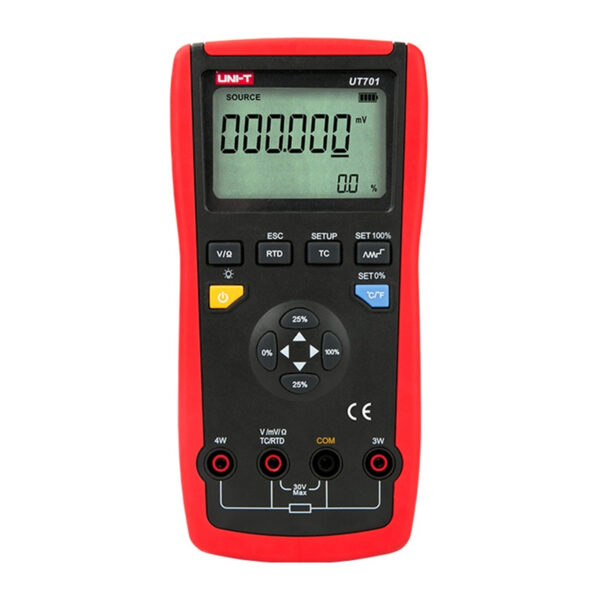

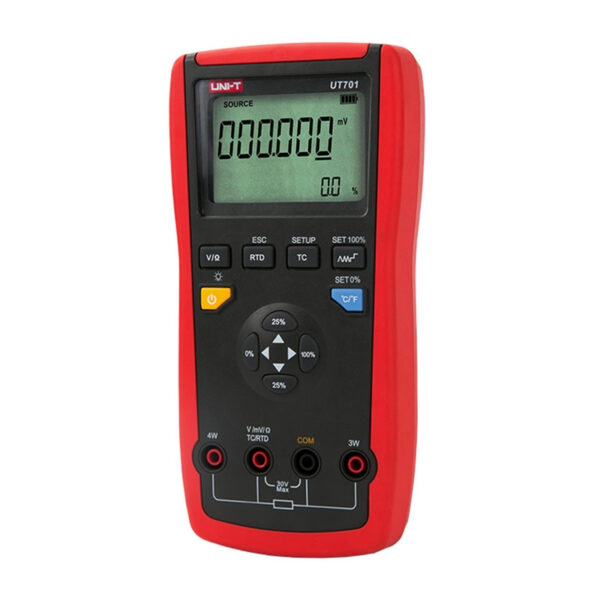

Uni-T UT701 process calibrator
The Uni-T UT701 Process Calibrator is a tool designed for calibrating and testing temperature measurement devices. It supports both thermocouples and RTD resistance sensors, making it ideal for servicing various types of systems and transducers. The device offers functions for generating voltage, resistance, and temperature signals, allowing it to simulate real-world operating conditions. High output accuracy of up to 0.05% ensures reliable results during calibration and diagnostics.
Functionality and precision
The UT701 model supports 10 types of thermocouples and 4 types of RTD sensors, increasing its versatility in industrial applications. Automatic cold junction compensation improves measurement accuracy for thermocouples, while step and ramp functions facilitate testing of system responses to signal changes. The ability to save settings speeds up work on repetitive tasks, while the clear, backlit display and intuitive controls ensure ease of use in various conditions.
Included
- Process calibrator
- Test leads (1 pair)
- 9V battery (6F22)
- Carrying case
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT701 |
| Product type | Process temperature calibrator |
| Output accuracy | Up to ±0.05% |
| Display type | 6-digit backlit LCD display |
| Display dimensions | 63 × 40 mm |
| Signal source outputs | DC voltage, resistance, thermocouples, RTD |
| Supported thermocouples | J, K, T, E, R, S, B, N, WRe3-25, WRe5-26 |
| Supported RTD types | Pt10, Pt100, Cu50, Cu100 |
| DC voltage output range | Up to 1000 mV |
| Resistance output range | Up to 5000 Ω |
| Functions | Ramp, step, settings storage, cold junction compensation |
| Power supply | 9V battery (6F22) |
| Dimensions | 96 × 193 × 47 mm |
| Weight | 410 g |
| Certifications | CE, UKCA |
