Uni-T UT220 Digital Current Meter
49,06 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-05-26*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas

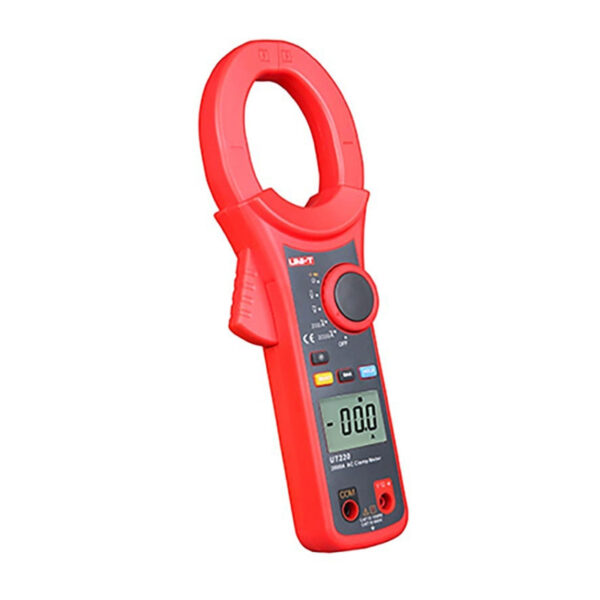

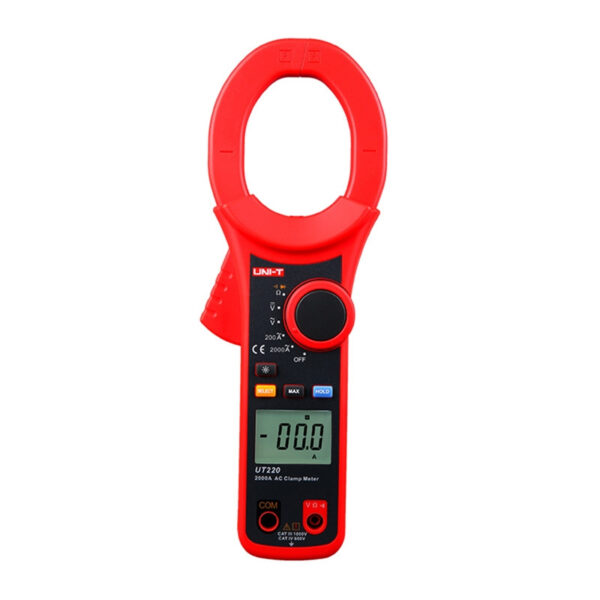

Uni-T UT220 Digital Clamp Meter
The Uni-T UT220 is a digital clamp meter designed to measure high AC currents up to 2000 A. The device is engineered for stable, safe, and reliable operation, making it well-suited for professional applications requiring the measurement of high current values. A 63 mm jaw opening, automatic range switching, and an easy-to-read display enhance the convenience of daily use.
Basic functions for measuring high currents
The UT220 model allows for the measurement of AC current up to 2000 A, AC voltage up to 750 V, DC voltage up to 1000 V, and resistance up to 20 MΩ. The 2000-count maximum reading allows for easy reading of basic results, while the diode test, continuity buzzer, Data Hold, and MAX functions enhance the device’s practicality during daily diagnostics. This is the model for users who need a simple and reliable meter for working with high AC currents.
Convenient operation and practical design
The meter is equipped with a full set of icons on the display, a low-battery indicator, and appropriate input impedance, which improves comfort and safety during operation. The device is powered by a 9V 6F22 battery, weighs 389 g, and measures 298 × 107 × 47 mm, making it comfortable for everyday use.
Included
- Clamp meter
- Battery x1
- Test leads
- Carrying case
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT220 |
| Type | Clamp meter |
| AC current | 2000A ±(2.5%+5) |
| AC voltage | 750V ±(1.2%+5) |
| DC Voltage | 1000V ±(0.8%+1) |
| Resistance | 20MΩ ±(1%+2) |
| Maximum Reading | 2000 |
| Functions | Diode test, continuity test, Data Hold, MAX, auto-ranging, low battery indicator |
| Jaw Opening | 63 mm |
| Power supply | 9V battery (6F22) |
| Display | 43 x 30 mm |
| Dimensions | 298 x 107 x 47 mm |
| Weight | 389 g |
| Certifications | CE, UKCA, cETLus |
