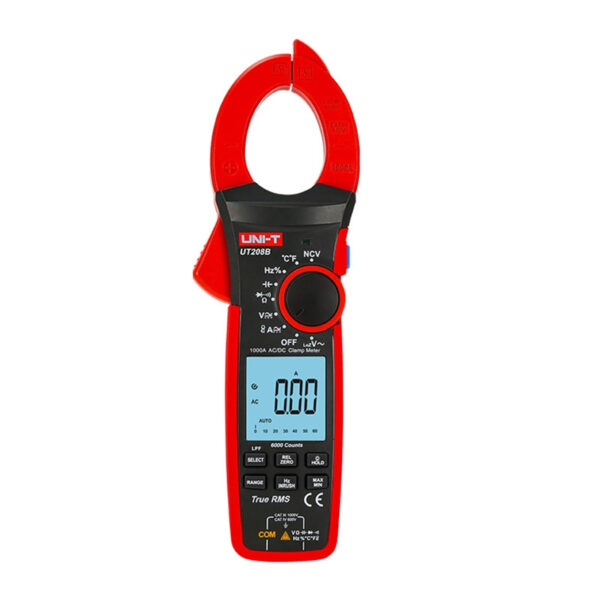

Uni-T UT208B Digital Clamp Meter
The Uni-T UT208B digital clamp meter is the most versatile tool in the series, designed for use in demanding electrical installations. Thanks to its wide range of functions, it is ideal for diagnostics and maintenance.
Maximum measurement capabilities
The UT208B model allows for measuring AC and DC current up to 1000A and voltage up to 1000V, as well as precise measurement of temperature, frequency, and capacitance. The highest accuracy and operational safety are guaranteed by a set of advanced features, such as True RMS, NCV, LPF, LoZ, and Zero mode. The device handles the analysis of sudden load spikes with ease thanks to inrush current measurement, and the optional Flex probe allows for an impressive expansion of the measurement range.
Clear Design and Safety
A large screen, bar graph, and robust construction ensure ease of use. The device complies with CAT III 1000V / CAT IV 600V standards.
Included
- Clamp meter
- Batteries x3
- Test leads
- Temperature probe
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT208B |
| Type | True RMS clamp meter |
| AC current | 1000A ±(2%+5) |
| DC current | 1000A ±(2%+5) |
| Inrush current | 1000A ±(10%+10) |
| AC voltage | 1000V ±(1.2%+3) |
| DC voltage | 1000V ±(0.5%+5) |
| LPF ACV | 1000V ±(2%+5) |
| LoZ ACV | 1000V ±(2%+5) |
| AC voltage range | 40Hz ~ 400Hz |
| Resistance | 60MΩ ±(1%+2) |
| Capacitance | 60mF ±(4%+5) |
| Temperature | -40°C ~ 1000°C ±(1%+2) |
| Frequency | 10Hz ~ 1MHz ±(0.1%+3) |
| Duty cycle | 10% ~ 90% ±(2.6%+7) |
| Maximum reading | 6000 |
| Functions | True RMS, NCV, LPF, LoZ, Zero mode, inrush current measurement, bargraph, Flex probe capability |
| Jaw opening | 42 mm |
| Power supply | 3x 1.5V battery (R03) |
| Display | 43 x 45 mm |
| Dimensions | 272 x 81 x 43.5 mm |
| Weight | 420 g |
| Safety | CAT III 1000V / CAT IV 600V |
| Certifications | CE, UKCA, cETLus |
