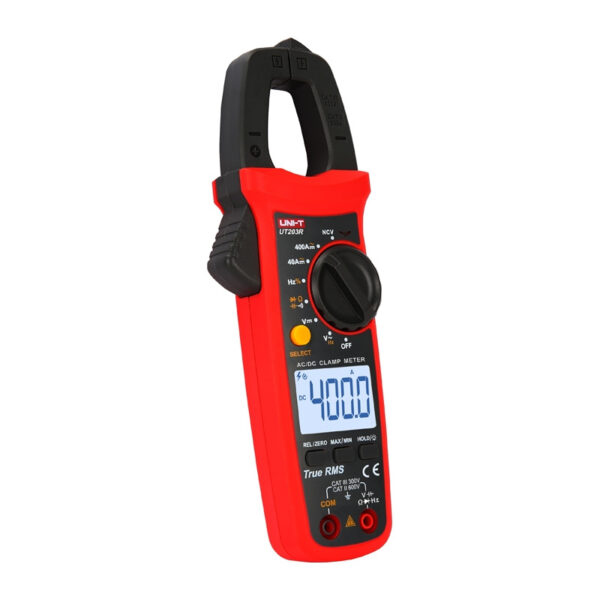

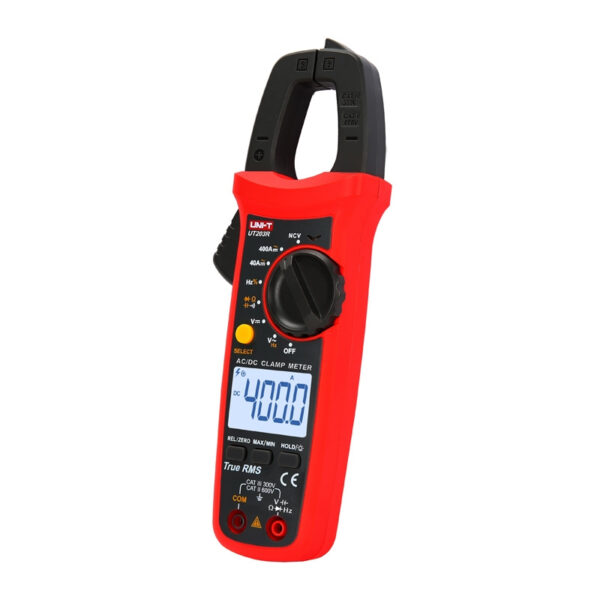

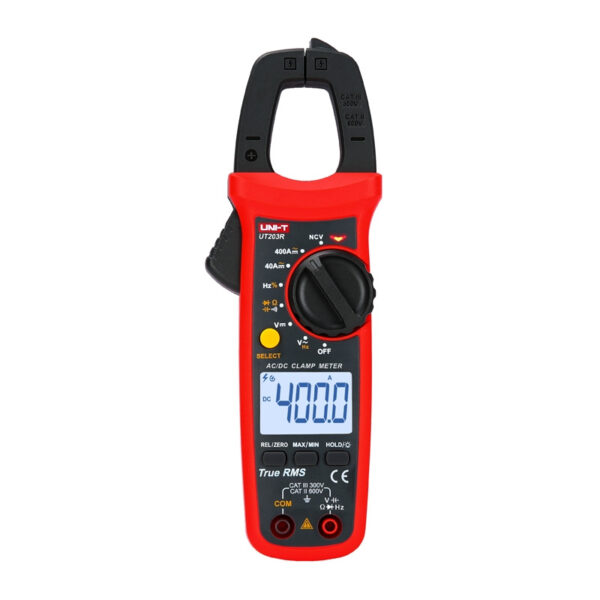

Uni-T UT203R Digital Clamp Meter
The Uni-T UT203R universal clamp meter is a practical tool for everyday electrical measurements. It is ideal for inspecting installations, diagnosing basic circuits, and measuring current without having to open the circuit. Thanks to its clamp design, it allows for convenient and quick measurements in the field.
AC and DC Current Measurement
The UT203R model allows for the measurement of AC and DC current up to 400 A and AC and DC voltage up to 600 V, making it more versatile for everyday use. Additionally, it offers capacitance and frequency measurement, which expands its applications in diagnosing various devices.
User-friendly features
The multimeter is equipped with True RMS, NCV, diode test, continuity test, Data Hold, and Relative mode. The zeroing function for DC measurement makes working with DC current measurements more convenient and improves user comfort.
Clear design and safe operation
The large backlit screen makes it easy to read results, and the 28 mm jaw opening allows for a comfortable grip on the wire during measurement. Compliance with safety categories CAT II 600V and CAT III 300V allows the device to be used in typical electrical applications.
Included in the set
- Clamp meter
- Batteries x2
- Test leads
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT203R |
| Type | Clamp meter |
| AC current | 0.04~400A ±(2%+5) |
| DC current | 0.04~400A ±(2%+5) |
| AC voltage | 600V ±(0.8%+5) |
| AC voltage frequency | 10Hz~60kHz ±(0.5%+2) |
| DC voltage | 600V ±(0.5%+2) |
| Resistance | 40MΩ |
| Capacitance | 40mF ±(4%+5) |
| Frequency | 10Hz~10MHz ±(0.1%+4) |
| Maximum reading | 4000 |
| Functions | True RMS, NCV, diode test, continuity test, Data Hold, Relative mode, LCD backlight |
| Jaw opening | 28 mm |
| Power supply | 2x 1.5V battery (R03) |
| Safety | CAT II 600V / CAT III 300V |
| Dimensions | 215 x 63 x 36 mm |
| Certifications | CE, UKCA, cETLus |
