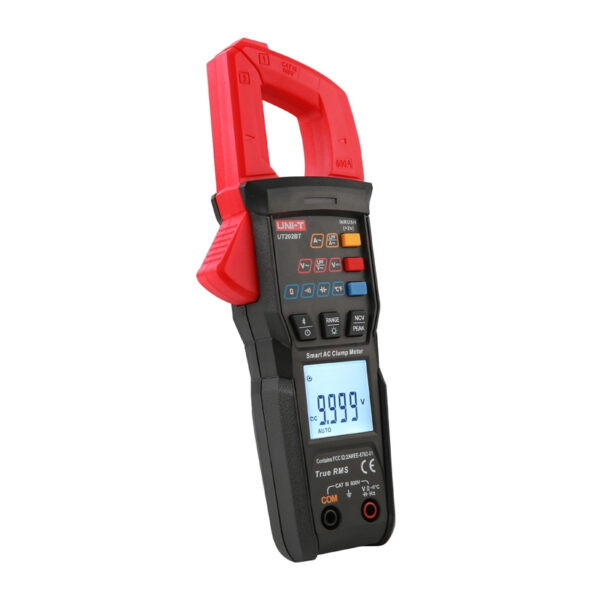

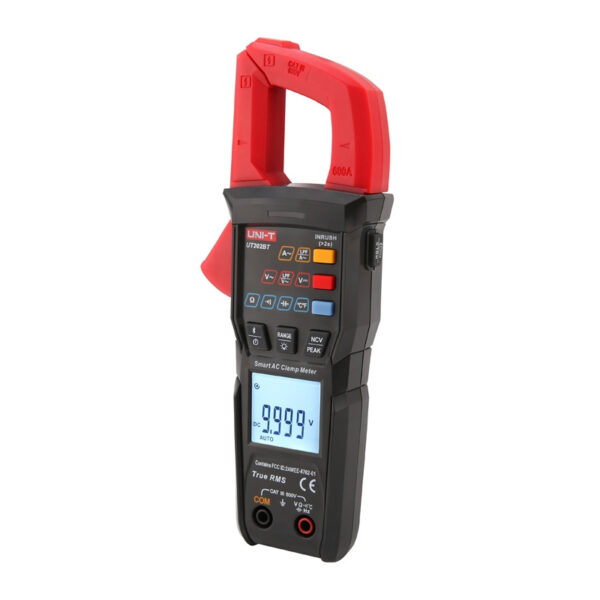

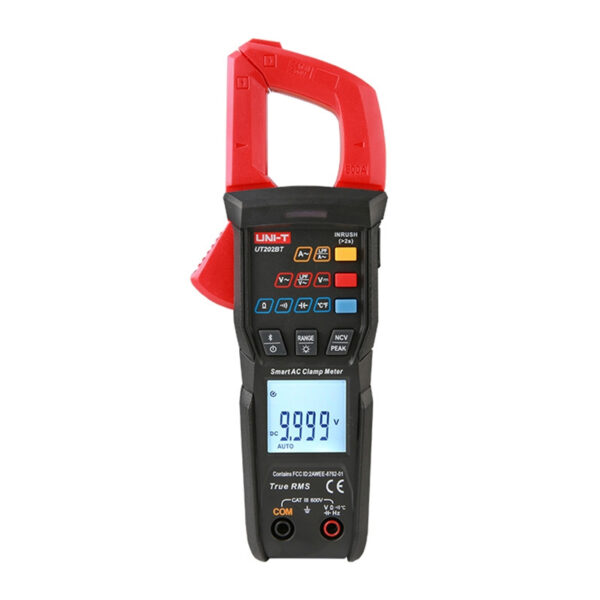

Uni-T UT202BT Smart Clamp Meter
The Uni-T UT202BT Smart Clamp Meter is a modern measurement tool that combines ease of use with practical features for everyday electrical diagnostics. The clamp design allows for quick current measurement without opening the circuit, while the compact form factor and one-handed operation make it easy to use in the field and during installations.
Wide measurement range and convenient operation
The UT202BT model measures AC/DC voltage up to 600V and AC current up to 600A, making it ideal for typical service, inspection, and installation tasks. Additionally, it offers resistance, capacitance, temperature, and AC frequency measurements, expanding its utility for testing various devices and installations.
Features that make everyday work easier
The meter is equipped with True RMS, automatic range switching, a Data Hold function, and non-contact voltage detection (NCV). Another major advantage is Bluetooth connectivity, which allows data to be transferred to a mobile app for more convenient monitoring of measurements. The backlit screen and built-in flashlight improve working comfort in dimly lit areas, while the low battery indicator and automatic shut-off assist in daily use.
Clear design and safe operation
The clear display, dual parameter readout, and 28 mm jaw opening facilitate efficient measurements. The device meets CAT II 600V / CAT III 300V safety requirements, making it well-suited for typical electrical applications. An additional advantage is the ability to measure temperature and test diodes and circuit continuity, which increases the versatility of this model.
Included
- Clamp meter
- Test leads
- Thermocouple

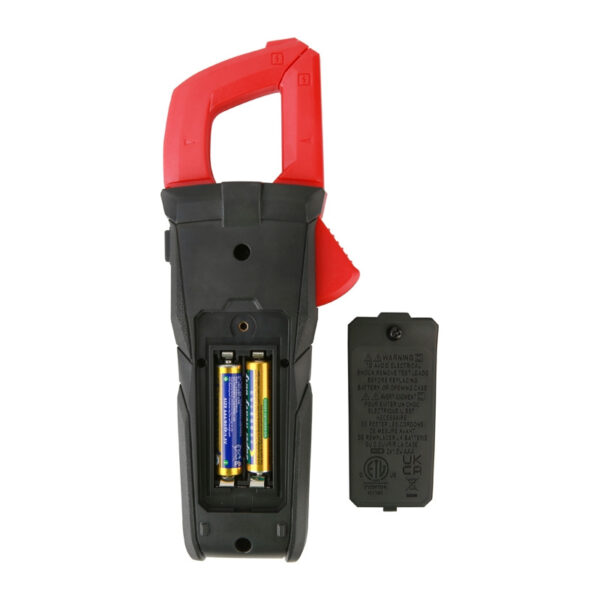

- 2 x AAA batteries
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT202BT |
| Type | Smart clamp meter |
| AC current | 600A ±(2%+5) |
| AC frequency | 50Hz~60Hz ±(1%+5) |
| AC voltage | 600V ±(0.8%+5) |
| DC voltage | 600V ±(0.5%+2) |
| Resistance | 60MΩ ±(0.8%+2) |
| Capacitance | 100mF ±(4%+5) |
| Temperature | -40°C~1000°C / -40°F~1832°F ±(1.5%+5) |
| Maximum reading | 6000 |
| True RMS | Yes |
| Bluetooth | Yes |
| Range switching | Automatic |
| Functions | NCV, diode test, continuity test, Data Hold, flashlight, LCD backlight, auto power off, low battery indicator, low-pass filter, inrush current detection, Peak Hold |
| Dual display | V+Hz, A+Hz |
| Jaw opening | 28 mm |
| Power supply | 2x 1.5V battery (AAA) |
| Safety | CAT II 600V / CAT III 300V |
| Display dimensions | 37 mm x 25 mm |
| Weight | 248 g |
| Dimensions | 201 mm x 63.5 mm x 35 mm |
| Color | Red and gray |
| Certifications | CE, UKCA, cETLus |
