Uni-T UT161E Digital Multimeter
108,69 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-05-26*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas

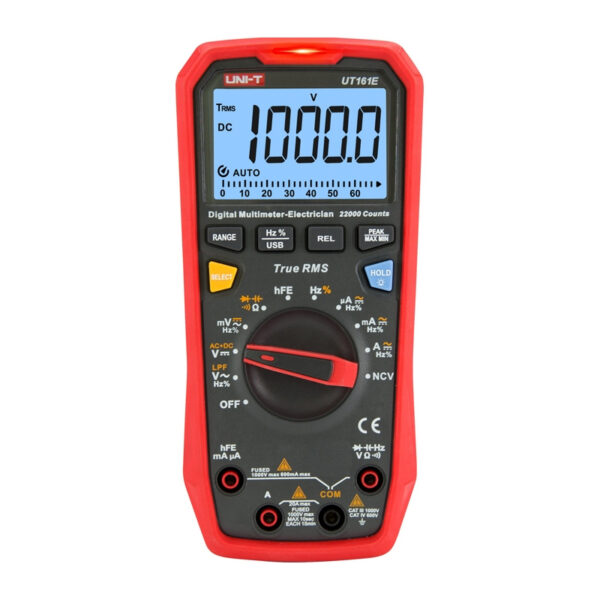

Uni-T UT161E Universal Digital Multimeter
The Uni-T UT161E universal digital multimeter is the most advanced model in the series, offering very high accuracy and a wide measurement range. It is ideal for professional applications where precision and the ability to analyze more complex signals are essential.
Wide Measurement Range
The device can measure voltages up to 1000 V and currents up to 20 A, allowing it to handle more demanding circuits. Extended ranges for resistance, capacitance, and frequency enhance diagnostic capabilities.
Advanced measurement functions
True RMS and LPF (low-pass filter) ensure stable measurement results. Max/Min functions, relative mode, and Peak Hold facilitate real-time data analysis.
Readability and ease of use
A high-resolution display (22,000 counts) and an extensive bar graph ensure greater reading accuracy. USB communication allows for saving and analyzing results on a computer.
Included
- Digital multimeter
- 4 batteries
- Test leads
- USB cable
- Multifunction adapter
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT161E |
| Type | True RMS digital multimeter |
| DC voltage | 1000V ±(0.05%+5) |
| AC voltage | 1000V ±(0.8%+10) |
| DC current | 20A ±(0.5%+10) |
| AC current | 20A ±(0.8%+10) |
| Resistance | 220MΩ ±(0.5%+10) |
| Capacitance | 220mF ±(3.0%+5) |
| Frequency | 220MHz ±(0.01%+5) |
| Duty Cycle | 0.1% ~ 99.9% ±(2.0%+5) |
| Maximum Reading | 22000 |
| AC Bandwidth | 40Hz ~ 10kHz |
| Functions | True RMS, LPF filter, diode test, continuity test, Data Hold, Relative mode, Max/Min, Peak Hold, backlight, bargraph, USB communication |
| Power supply | 4x 1.5V AAA batteries |
| Dimensions | 190 × 90 × 50 mm |
| Weight | 350 g |
| Safety | CAT III 1000V / CAT IV 600V |
| Certifications | CE, UKCA, cETLus |
