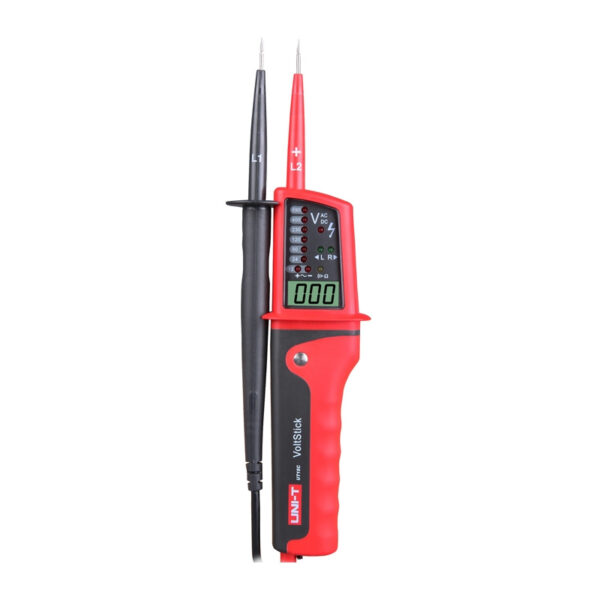

Uni-T UT15C Voltage and Continuity Tester
The Uni-T UT15C is an advanced version of a voltage and continuity tester that combines quick readings via LED indicators with the greater precision of a digital LCD display. The device supports AC/DC voltage measurement in the range of 12 V to 690 V, and the LCD screen in the 24–690 V range allows for more accurate voltage readings with an accuracy of ±(3%+5). This is a practical solution for users who expect not only quick orientation but also more precise information when working with electrical installations.
Extensive features for daily diagnostics
The UT15C model offers a range of features useful during installation inspection and maintenance. It enables phase rotation testing in the 0–690 V range at 50–60 Hz, voltage detection with a single L2 probe in the range of 0–690 V at 50–400 Hz, and circuit continuity testing in the range of 0–100 kΩ with audible and LED indicators. Additionally, the device allows for the detection of positive and negative polarity, which enhances user convenience and facilitates the assessment of the tested installation’s condition.
Practical design and ease of use
Automatic range switching speeds up operation and allows you to focus on the measurement itself. The built-in flashlight facilitates work in dimly lit areas, and the battery indicator allows you to quickly check the device’s readiness for operation by shorting the leads. The tester is powered by two 1.5 V R03 batteries, weighs 210 g, and measures 275 × 51 × 30 mm, making it well-suited for everyday use both in the field and during service work.

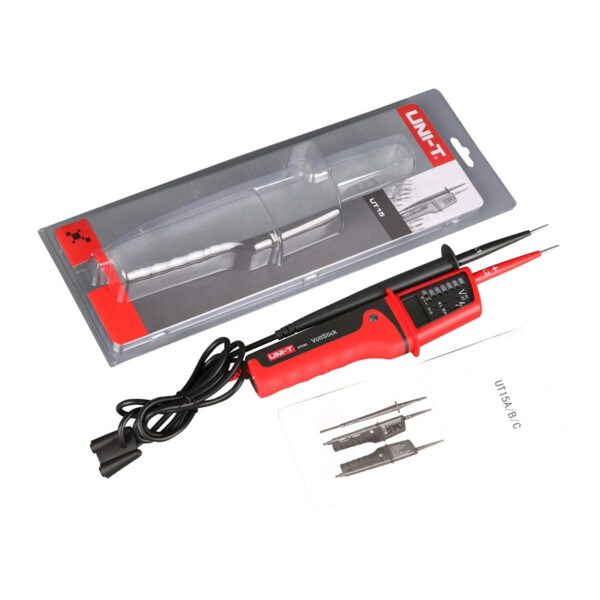

Included
- Voltage and continuity tester
- Batteries x2
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT15C |
| Product type | Voltage and continuity tester |
| AC/DC LED voltage indicator | Yes |
| LED voltage indicator range | 12V–690V |
| LCD display | Yes |
| LCD display range | 24V~690V |
| LCD display accuracy | ±(3%+5) |
| Phase rotation test | Yes |
| Phase rotation test range | 0V–690V, 50Hz–60Hz |
| Single-probe voltage detection (L2) | Yes |
| Single-probe voltage detection range | 0V–690V, 50Hz–400Hz |
| Circuit continuity test | Yes |
| Continuity test range | 0~100kΩ |
| Continuity test indication | Audible signal + LED |
| Polarity detection | Yes |
| Polarity detection type | Positive and negative |
| Protection class | IP65 |
| Range switching | Automatic |
| Flashlight | Yes |
| Battery indicator | Yes |
| LCD screen dimensions | 23 mm × 12 mm |
| Power supply | 2x 1.5V batteries (R03) |
| Weight | 210 g |
| Dimensions | 275 mm × 51 mm × 30 mm |
| Color | Red and gray |
