Uni-T UT120C Pocket Digital Multimeter
19,93 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-05-26*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas

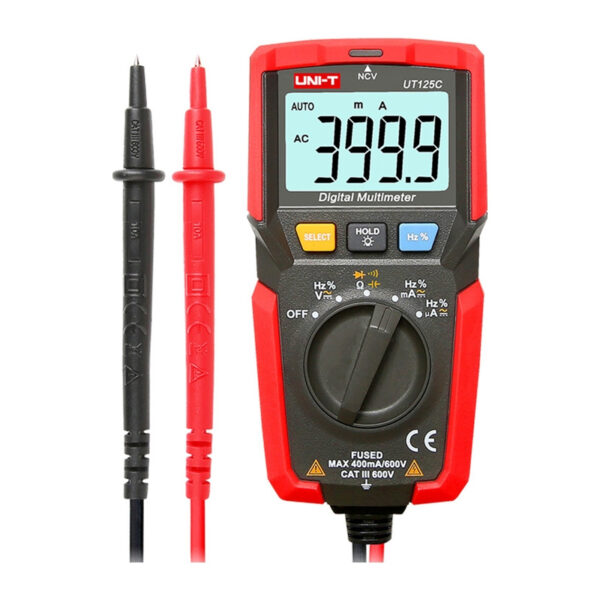

Uni-T UT125C Pocket-Sized Digital Multimeter
The Uni-T UT125C is a pocket-sized digital multimeter that combines compact dimensions, an ergonomic design, and ease of everyday use. The device features a display with a maximum reading of 4000 and is designed for use with low currents below 0.4 A. With the ability to measure voltage and current (AC/DC up to 600 V / 400 mA) and CAT III 600V certification, it is ideal for electronics repair.
Essential measurements in a handy form
The UT125C model allows for the measurement of voltage, current, resistance, capacitance, frequency, and duty cycle, and also offers diode and continuity testing. An additional advantage is the non-contact voltage detection (NCV) function, which makes it convenient to quickly check installations. This set of features makes the meter well-suited for workshop and hobby applications, as well as for the daily diagnosis of simpler electronic circuits.
Ease of use and compact design
The small housing, measuring 112 × 58 × 35 mm and weighing 180 g, makes the multimeter easy to carry and comfortable to use. The device is equipped with a Data Hold function, a low battery indicator, and an auto-off feature, which facilitates daily work and helps save energy. An additional advantage is its resistance to drops from a height of 1 meter, which increases its practicality when used in various conditions.
Included
- Digital multimeter
- Batteries x2
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT125C |
| Type | Pocket digital multimeter |
| DC Voltage | 600V ±(0.5%+5) |
| AC Voltage | 600V ±(1.2%+5) |
| DC current | 400mA ±(1.8%+5) |
| AC current | 400mA ±(2%+8) |
| Resistance | 40MΩ ±(1%+5) |
| Capacitance | 100µF ±(4%+10) |
| Frequency | 10Hz~60kHz ±(0.1%+5) |
| Duty cycle | 20%~80% |
| Functions | NCV, diode test, continuity test, low battery indicator, Data Hold, auto power off |
| Maximum display reading | 4000 |
| Operating temperature | 0°C~50°C |
| Measurement category | CAT III 600V |
| Drop test | 1 m |
| Power supply | 1.5V battery (R03) x2 |
| Display dimensions | 38 mm x 23 mm |
| Weight | 180 g |
| Dimensions | 112 mm x 58 mm x 35 mm |
| Color | Red and gray |
| Certifications | CE, UKCA, cETLus |
