SSD ACC DOCK STATION USB-C/2XM.2 NVME ADSA-M2C22 AXAGON

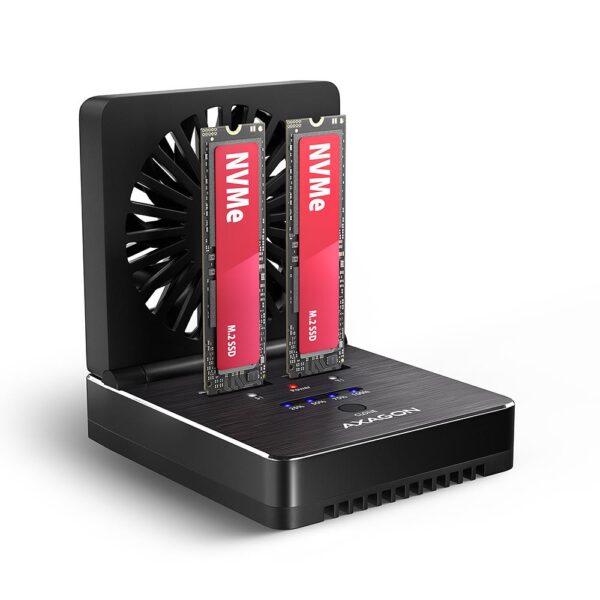

ADSA-M2C22 USB-C 20Gbps docking station for 2x M.2 NVMe / SATA SSD with disk cloning function without PC
USB speed up to 20Gbps • disk cloning without PC (1->1) • support for 2x M.2 NVMe or SATA SSD • compatible with Thunderbolt and MacBook • Plug and Play • aluminum body • active cooling • stable performance without thermal throttling

Input:
• USB 20Gbps (USB 3.2 Gen 2×2), connector USB-C female.
• Compatible with USB 5Gbps, USB 10Gbps, USB 40Gbps, Thunderbolt 3 / 4 / 5.

Device support:
• 2x NVMe M.2 SSD disks or 2x SATA M.2 SSD disks.
• NVMe and SATA M.2 disks cannot be combined at the same time.
• Designed for M key or B+M key format cards.
• 2x NGFF 75-pin M key slot for M.2 disks.
• No maximum disk capacity limitation.

Disk content cloning function:
• Cloning takes place without connecting the station to a computer.
• S1 slot M.2 Source – for connecting the source disk.
• T1 slot M.2 Target – for connecting the target disk.
• Cloning NVMe to NVMe or SATA to SATA disks is supported
• When cloning, NVMe and SATA M.2 disks cannot be combined at the same time.
• The target disk must have the same or larger capacity than the source disk, otherwise cloning cannot be started.
• Theoretical SSD cloning speed up to 2,000 MB/s.
• The total disk cloning time depends on the speed of the disks used and the capacity of the source disk, not on the amount of data on the disk.
• Approximate cloning time for 1 TB of data: 1->1 disk approx. 15 min (tested with PCIe 4.0 NVMe M.2 SSD with speed over 4000 MB/s and a large cache memory capacity).

USB 20Gbps chipset for M.2 SSD:
• Realtek RTL9220DP chipset.
• Maximum docking station throughput up to 20 Gbit/s.
• When working with both disks at the same time, performance is divided up to 10 Gbit/s for each disk.

Maximum theoretical supported speeds and compatibility with USB controllers (ports):
• Laptop / PC with USB 20Gbps (USB 3.2 Gen 2×2) port: max. speed 20 Gbit/s.
• Laptop / PC with USB 10Gbps (USB 3.2 Gen 2) port: max. speed 10 Gbit/s.
• Laptop / PC with USB 5Gbps (USB 3.2 Gen 1 / USB 3.0) port: max. speed 5 Gbit/s.
• Compatibility with USB 40Gbps, Thunderbolt 3/4/5 ports: max. speed 10 to 20 Gbit/s, depending on the processor and chipset used.
• Real throughput / transfer speed of the docking station of around 2000 MB/s (2 GB/s) is determined by the limits of the USB 3.2 Gen 2×2 interface.
