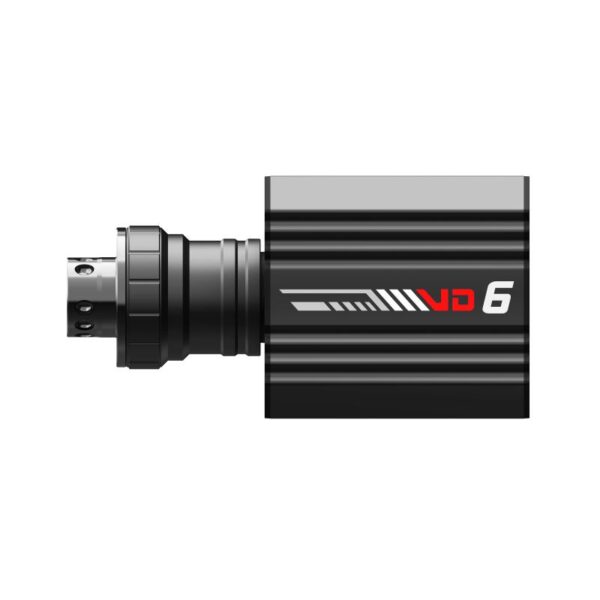

PXN VD6 Direct Drive wheel base, 6 Nm, USB

Aprašymas

High-performance Direct Drive base for realistic force feedback – PXN VD6, 6 Nm, USB.
PXN VD6 represents an entry into the world of Direct Drive technology, where the wheel is driven directly by a servo motor without belts or gears.
The base uses a proprietary low-inertia servo motor that delivers smooth and immediate response.
A constant torque of 6 Nm provides strong yet controllable force feedback suitable for a wide range of users.
A 24-bit magnetic encoder captures movement with extreme precision and minimal latency.
The adjustable rotation range from 90° to 2700° allows adaptation to different vehicle types.
The advanced Sense+ algorithm processes in-game data and translates it into realistic forces on the wheel.
The system can simulate road surface, G-forces, and loss of traction with a high level of detail.
Integrated thermal management actively regulates performance and prevents overheating during long sessions.
The aluminum housing ensures structural strength and efficient heat dissipation.
The base supports plug-and-play connection to PC without the need to install drivers.
It is compatible with PXN wheels as well as selected third-party wheels via standard interfaces.

• Direct Drive servo motor
• Constant torque of 6 Nm
• 24-bit magnetic encoder
• Adjustable rotation range 90°–2700°
• Sense+ simulation algorithm
• Intelligent thermal management
• Aluminum housing for heat dissipation
• Plug-and-play (PC)

COMPATIBILITY

• PC (Windows)
• PXN wheels (WDS R2, WCS R2, GT ONE depending on system)
• PXN SimRacing software support
• It is compatible with PXN wheels as well as selected third-party wheels via standard interfaces.

TECHNICAL SPECIFICATIONS
Model: VD6
Type: Direct Drive wheel base
Connection: USB (wired)
Power supply: DC 24 V / USB 5 V
Current: motor 3.75 A / USB ≤ 500 mA
Torque: 6 Nm
Rotation range: 90°–2700°
Operating temperature: 10–40 °C
Operating humidity: 20–80%
Dimensions and weight: approx. 238 × 125 × 125 mm (wheel base) / 5900 g

Link to SW PXN Simracing

• PC Windows

PACKAGE CONTENTS

• PXN VD6 wheel base
• Power adapter
• USB cable
• Type-C cable
• Mounting screws
• Allen key
• User manual
