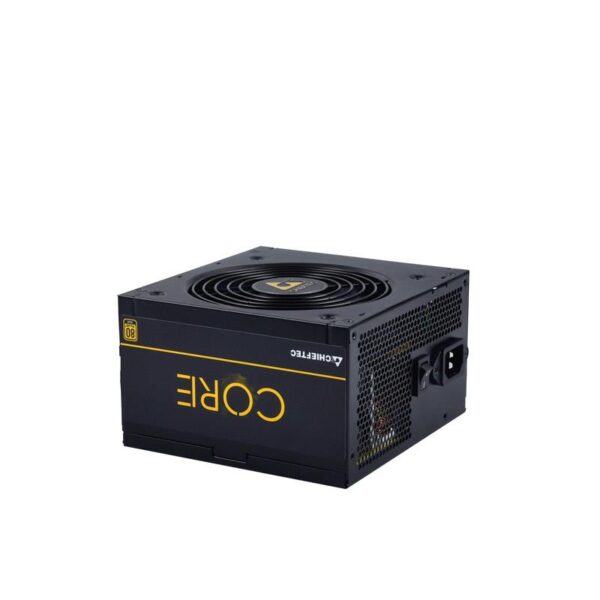

Power Supply|CHIEFTEC|500 Watts|Efficiency 80 PLUS GOLD|PFC Active|BBS-500S
Prekės kodas: @2399988
55,10 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-05-04*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
With the Core Series, Chieftec will be bringing a new 80 PLUS Gold certified PSU to market, offering the best possible value-formoney. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. With power output ranging from 500W to 700W, this product is idea for customers who want top-tier power output at the most attractive price.
- 80 PLUS Gold Efficiency
- Compact size with only 140mm depth
- 500-700W power output
- Motherboard, CPU and PCI-E cable lengths of 650mm
Specifikacija
| Summary | Chieftec Core BBS-500S. Total power: 500 W, AC input voltage: 100 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 150,500 mm, Peripheral (Molex) power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm |
| Vendor Homepage | https://www.chieftec.eu/products-detail/113/CORE_SERIES |
| Category Code | PSU |
| CnCode | 85044095 |
| Unit Box Height | 0.105 |
| Unit Box Length | 0.24 |
| Unit Box Width | 0.185 |
| AC input frequency | 47 – 63 |
| AC input voltage | 100 – 240 |
| Combined power (+5Vsb) | 12.5 |
| Combined power (-12V) | 3.6 |
| Input current | 8 |
| Max output current (+12V1) | 41 |
| Max output current (+3.3V) | 18 |
| Max output current (+5V) | 18 |
| Max output current (+5Vsb) | 2.5 |
| Max output current (-12V) | 0.3 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overload/Short circuit |
| Total power | 500 |
| Cabling type | Non-Modular |
| CPU power cable length | 650 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 4 |
| PCI Express power cable length | 500 |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power cable length | 150/500 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 150/500 |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.3 |
| Power supply unit (PSU) form factor | PS/2 |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 |
| Number of fans | 1 |
| Product colour | Black |
| Depth | 150 |
| Height | 86 |
| Weight | 1650 |
| Width | 140 |
| Package weight | 2060 |
| Harmonized System (HS) code | 84733020 |
| Model name | BBS-500S |
| Units per Shipping Box | 4 |
| Unit Calculated Volume | 0.006107 |
| Unit Calculated Weight | 2.1 |
