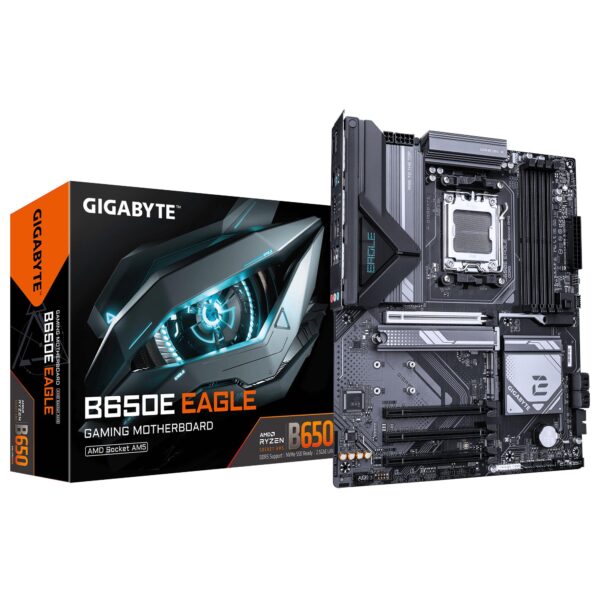

Mainboard|GIGABYTE|AMD B650|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|3xNumber of M.2 (M) slots|B650EEAGLE

Prekės kodas: @3046427

0 out of 5

( Atsiliepimų dar nėra. )

140,37 €

Užsakomoji prekė.

Numatoma atsiėmimo*/išsiuntimo** data:

2026-10-26

*atsiėmimo taške Tarandės g. 2 - 42 boksas, Vilnius

**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo

PRATĘSTA GARANTIJA

Aprašymas
Atsiliepimai (0)

Aprašymas

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

AMD Socket AM5: Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
Unparalleled Performance: 8+2+2 Phases Digital VRM Solution
Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
SuperSpeed Storage: 1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch Plus: PCIe x16 slots with Quick Release & Screwless Design
Fast Networks: 2.5 GbE LAN
Extended Connectivity: DP, HDMI, Rear USB 10Gb/s

Specifikacija

Summary	GIGABYTE B650E EAGLE Motherboard – AMD Ryzen 9000 Series CPUs, 8+2+2 Phases VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
Vendor Homepage	https://www.gigabyte.com/
Category Code	MBA
CnCode	84733020
Unit Box Height	0.08
Unit Box Length	0.33
Unit Box Width	0.27
Motherboard chipset	AMD B650
Audio chip	Realtek ALC897
Product colour	Dark brown
PC health monitoring	Fan/Temperature/Voltage/Water cooling
Component for	PC
Motherboard form factor	ATX
Audio output channels	7.1
Cooling type	Passive
Motherboard chipset family	AMD
Power source type	ATX
Windows operating systems supported	Windows 10 x64/Windows 11 x64
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	4800/5200/5600/6000/6200/6400/6600/6800/7200/7600/7800/7900/7950/8000/8200
Supported memory clock speed (max)	8200
Maximum internal memory	256
Unbuffered memory	Yes
Maximum internal memory per slot	64
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2,SATA III
Number of HDDs supported	4
Number of storage drives supported	7
RAID support	Yes
RAID levels	0/1/10/5
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160
HDCP	Yes
HDCP version	2.3
DirectX version	12.0
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	2
Number of chassis fan connectors	4
Peripheral (Molex) power connectors (4-pin)	1
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	1
12V power connector	Yes
Number of water pump connectors	2
TPM connector	Yes
RGB LED pin header	Yes
Number of RGB LED pin headers	4
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
Wi-Fi	No
PCI Express x16 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
BIOS memory size	256
ACPI version	5.0
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Country of origin	China
Products per shipping (inner) case	1
Battery weight	3
Lithium weight per battery	0.07
Package width	335
Number of battery cells	1
Package depth	270
Package height	80
Battery capacity	220
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Package weight	1842.5
Battery type	CR2032
Width	305
Depth	244
Height	35
Batteries included	Yes
Screws included	Yes
Bundled software	Norton® Internet Security (OEM version)
Weight	1610
Warranty period	3
Unit Calculated Weight	1.6
Product Net Weight	1.5
Unit Calculated Volume	0.007128
Units per Shipping Box	1
Shipping Box Weight	1.60000002384186
Unit Width	27
Shipping Box Height	8
Unit Depth	33
Shipping Box Depth	33
Unit Height	8
Shipping Box Width	27
Name	MB AMD B650 SAM5 ATX/B650E EAGLE GIGABYTE
