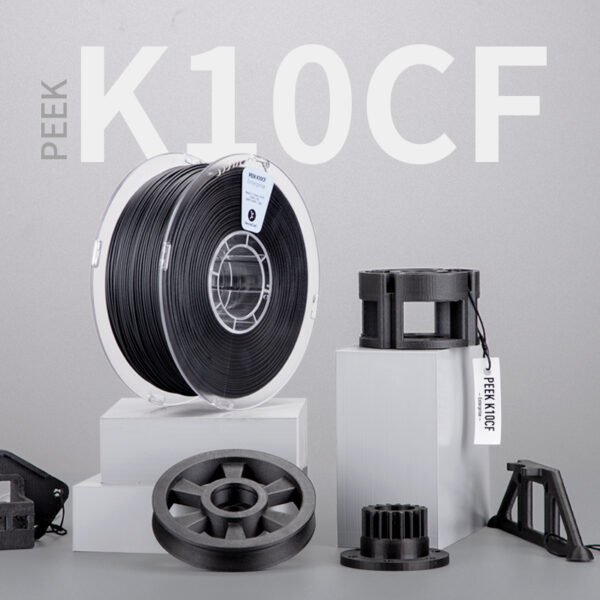

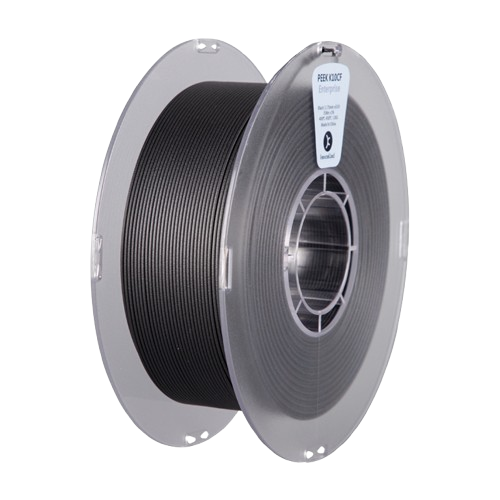

Kexcelled THE K11™ PEEK CF10, Black, 1.75mm, 1kg

Aprašymas

Kexcelled THE K11™ PEEK CF10 is an industrial PEEK filament reinforced with 10% carbon fiber. The material is developed for 3D printing where low weight, high rigidity, and high temperature resistance are required. It is particularly well suited for structural components and functional parts exposed to heavy loads and demanding operational environments.

Highlights:

• Carbon fiber-reinforced PEEK with 10% carbon fiber
• High heat resistance up to 200 °C under load without losing shape
• Excellent chemical resistance and natural flame retardancy
• High dimensional stability and low deformation
• Consistent diameter and roundness for a reliable and stable material feed

Why Choose Kexcelled PEEK CF10?

The main advantage of PEEK CF10 is that the carbon fiber reinforcement provides the material with very high stiffness while keeping the weight down compared to unreinforced PEEK and traditional metal components. The material withstands heavy mechanical loads and offers very high tensile strength. This makes the filament popular in the aerospace, automotive, and robotics industries where strong yet lightweight structures are needed.

Thanks to the material’s low density of 1.12 g/cm³, it is an excellent choice for weight-critical applications without compromising the mechanical performance or precision of the components. The material retains its shape and stability even at high temperatures and under long-term load, making it suitable for technical and industrial applications with high requirements for strength and dimensional accuracy.

Printing Guide and Technical Requirements

Since PEEK CF10 requires very high process temperatures, the material only works in professional 3D printers built for high-temperature materials. An enclosed and heated build chamber is required for proper layer adhesion and to avoid the risk of warping.

• Nozzle Temperature: 400–450 °C
• Bed Temperature: 100–220 °C
• Chamber Temperature: 80–220 °C
• Print Speed: 30–60 mm/s
• Cooling Fan: OFF

Compatibility

Suitable for use in, among others:

• Aerospace and automotive industries
• Technical and industrial components

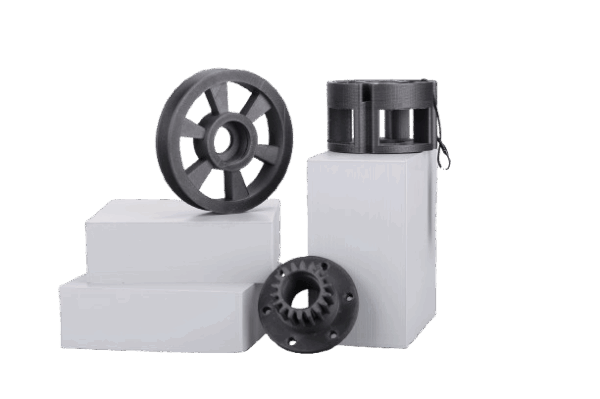

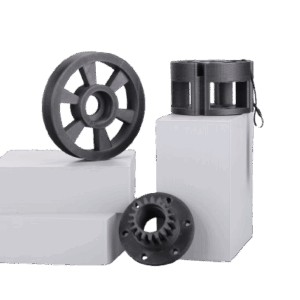

• Jigs, fixtures, and tooling
• Functional prototypes and end products
• Applications with demanding temperature requirements
• Lightweight structures with high strength
