dé 3kW Portable Charger with 10m Cable (APP VERSION)

Aprašymas

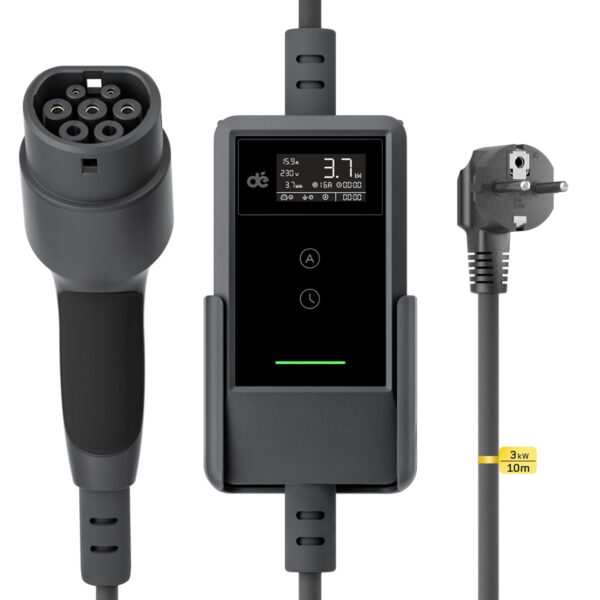

dé Type 2 Portable EV Charger with Schuko Plug – 3.68 kW, 10 m, App Version

This black portable Mode 2 charger connects a Type 2 electric vehicle to a standard Schuko socket without fixed installation. Adjustable 6–16 A charging, an LCD status display and connected charging controls.

Key Features

• Maximum charging power: 3.68 kW at 16 A, single-phase
• 10 m cable
• Schuko power plug and Type 2 vehicle connector
• Selectable current: 6 A, 8 A, 10 A, 13 A or 16 A
• Programmable charging delay from 0.5 to 8 hours
• App display for charging status, duration, energy, voltage, current and power, with scheduling and charging control
• LCD display shows charging status and operating values directly on the control box
• IP66 control box and IP55 Type 2 connector
• Operating temperature: -25°C to +50°C
• Integrated 30 mA AC Type A and 6 mA DC residual-current protection, plus overcurrent, overvoltage, undervoltage, leakage, overheating, earth-fault and short-circuit protection
• CE/DEKRA certified

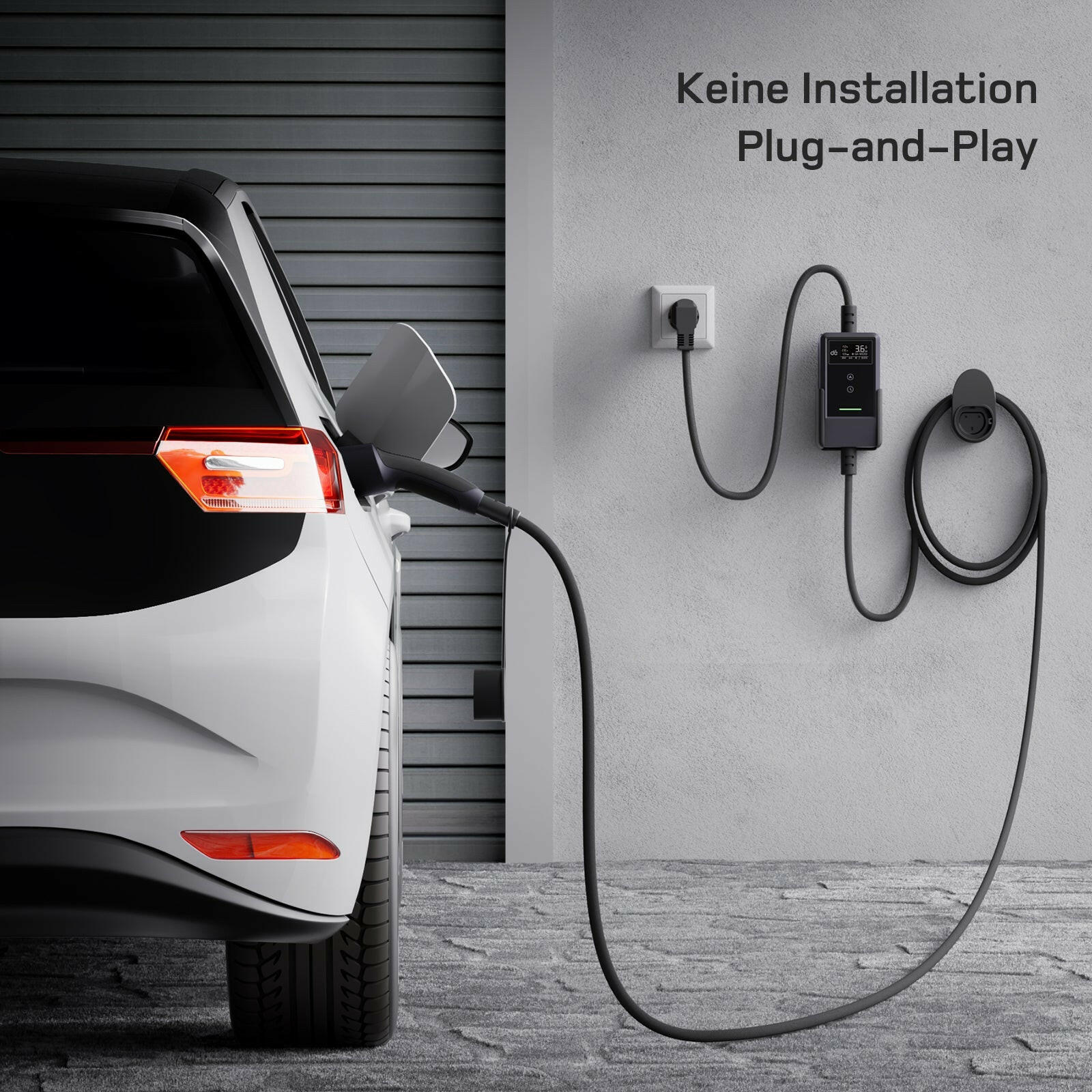

Plug-and-Play Charging from a Schuko Socket

No fixed wallbox installation is required. Connect the Schuko plug to a suitable single-phase household socket and the Type 2 connector to the vehicle. The 10 m total length provides practical reach at home, in a carport or while travelling.

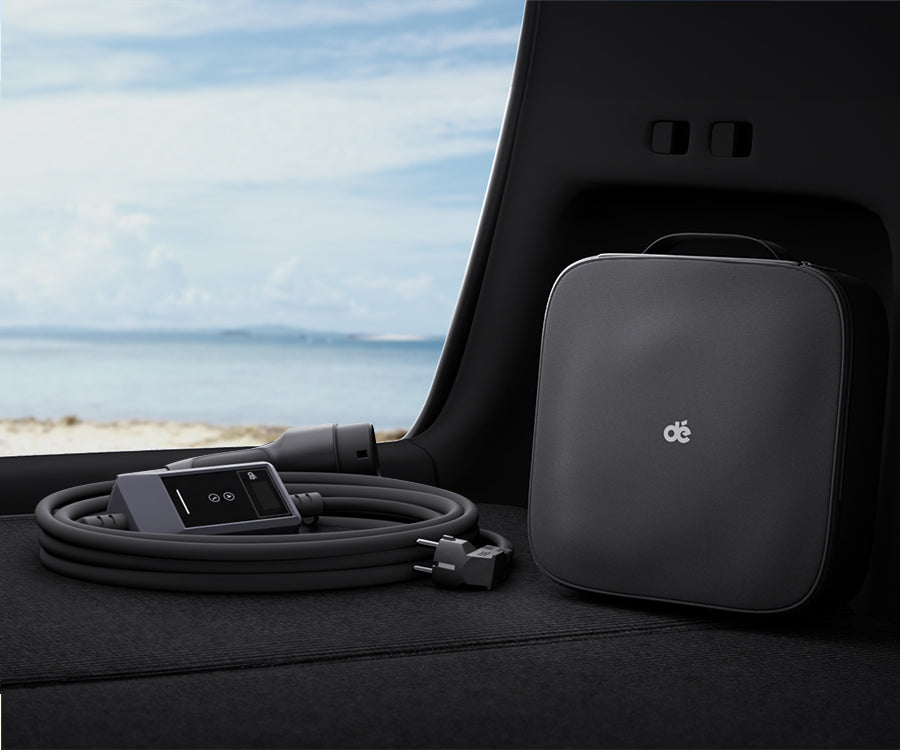

Portable and Easy to Store

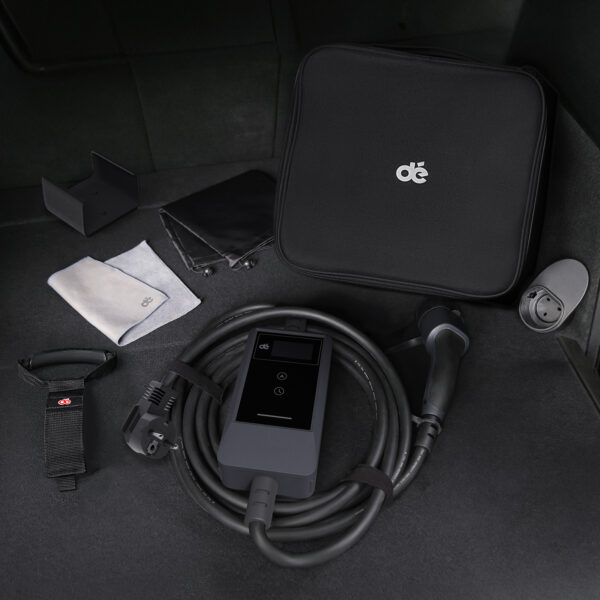

The compact charger can be carried in the supplied case and stored in a vehicle when it is not in use. A wall bracket, cable holder and rear clip provide additional storage options at home.

Up to 3.68 kW Single-Phase Charging

The charger supplies up to 3.68 kW at 16 A. Actual charging power and charging time depend on the vehicle, battery, socket and electrical installation.

Practical Design and Clear LCD Information

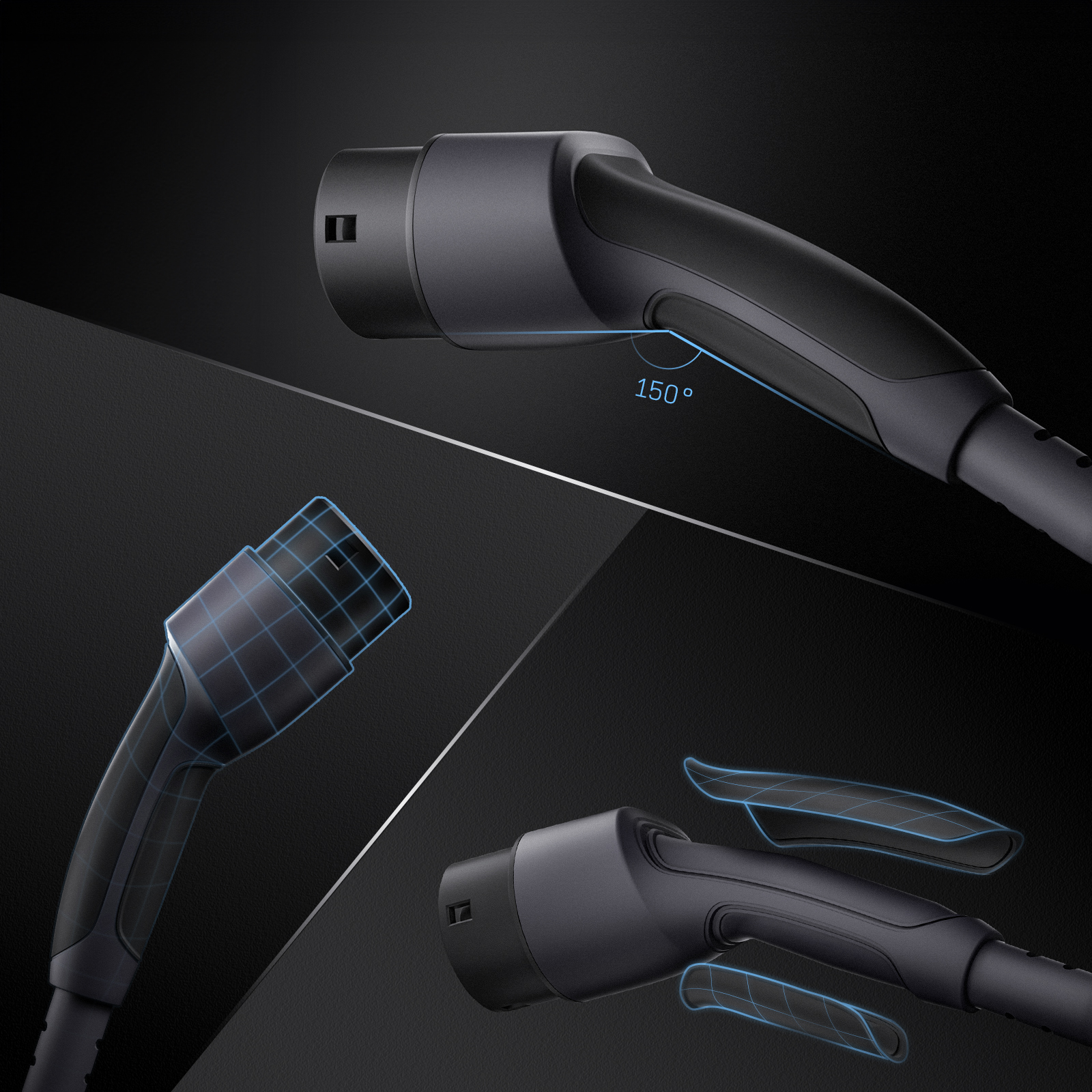

The ergonomic Type 2 handle has an integrated design without visible screw holes and a TPU covering for a more comfortable grip in cold conditions. The matt-textured cable is designed for improved grip and wear resistance. The LCD display provides a direct view of current, voltage, power, charging time and charged energy.

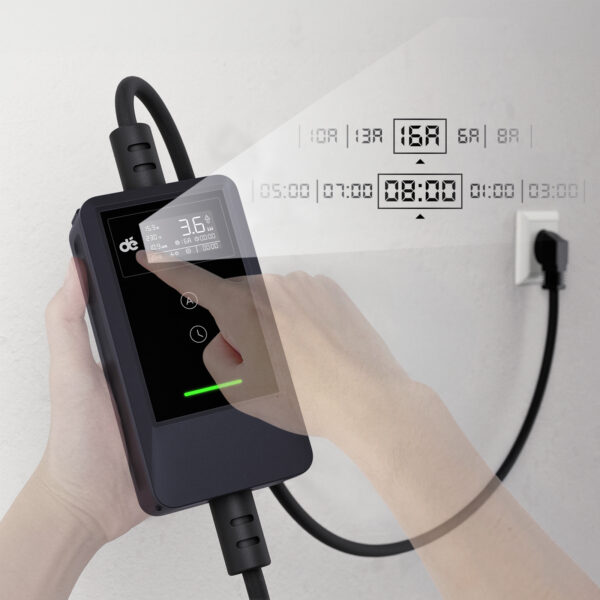

Adjustable Current and Charging Timer

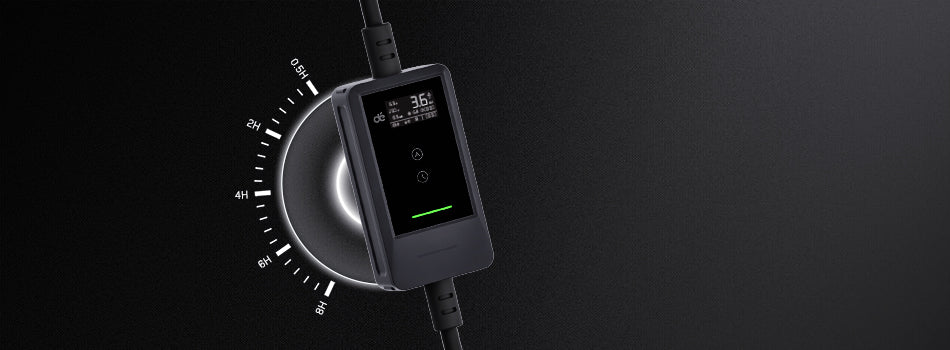

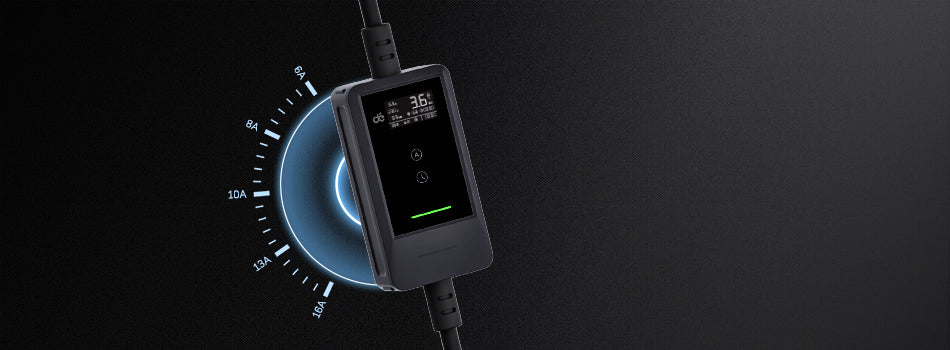

Select 6 A, 8 A, 10 A, 13 A or 16 A to suit the available power supply. The integrated timer allows a charging delay between 0.5 and 8 hours, for example when charging should begin later at night.

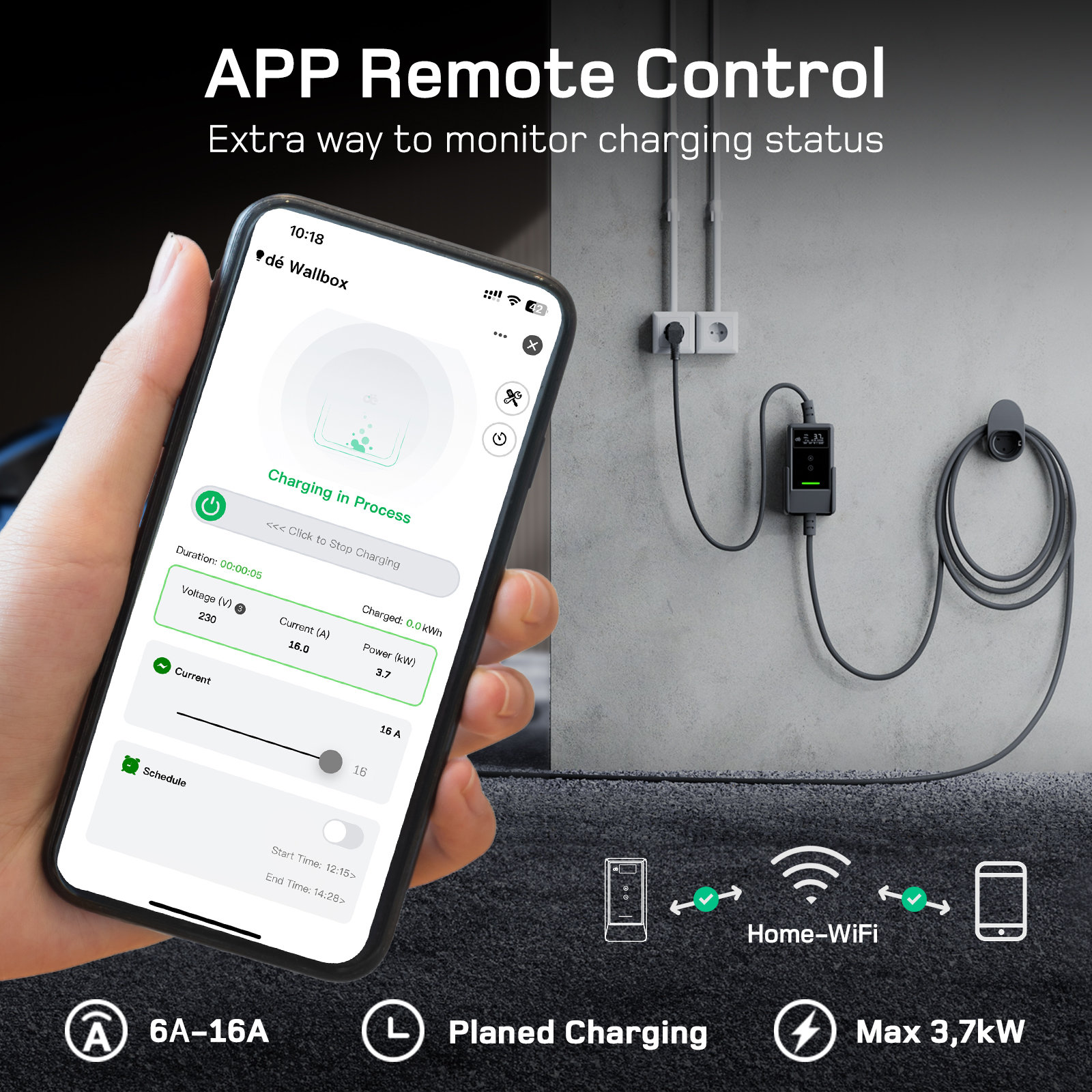

Connected Charging with the App

The app interface shows whether charging is in progress together with charging duration, charged energy, voltage, current and power. It also provides charging control and a schedule with start and end times, allowing the session to be monitored and planned from a connected smartphone.

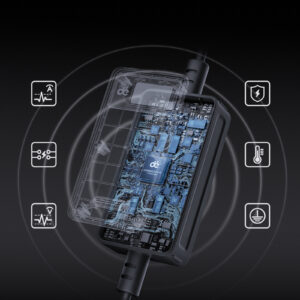

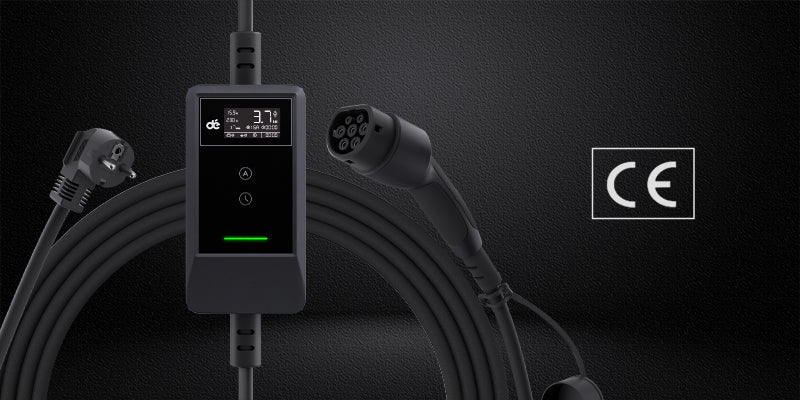

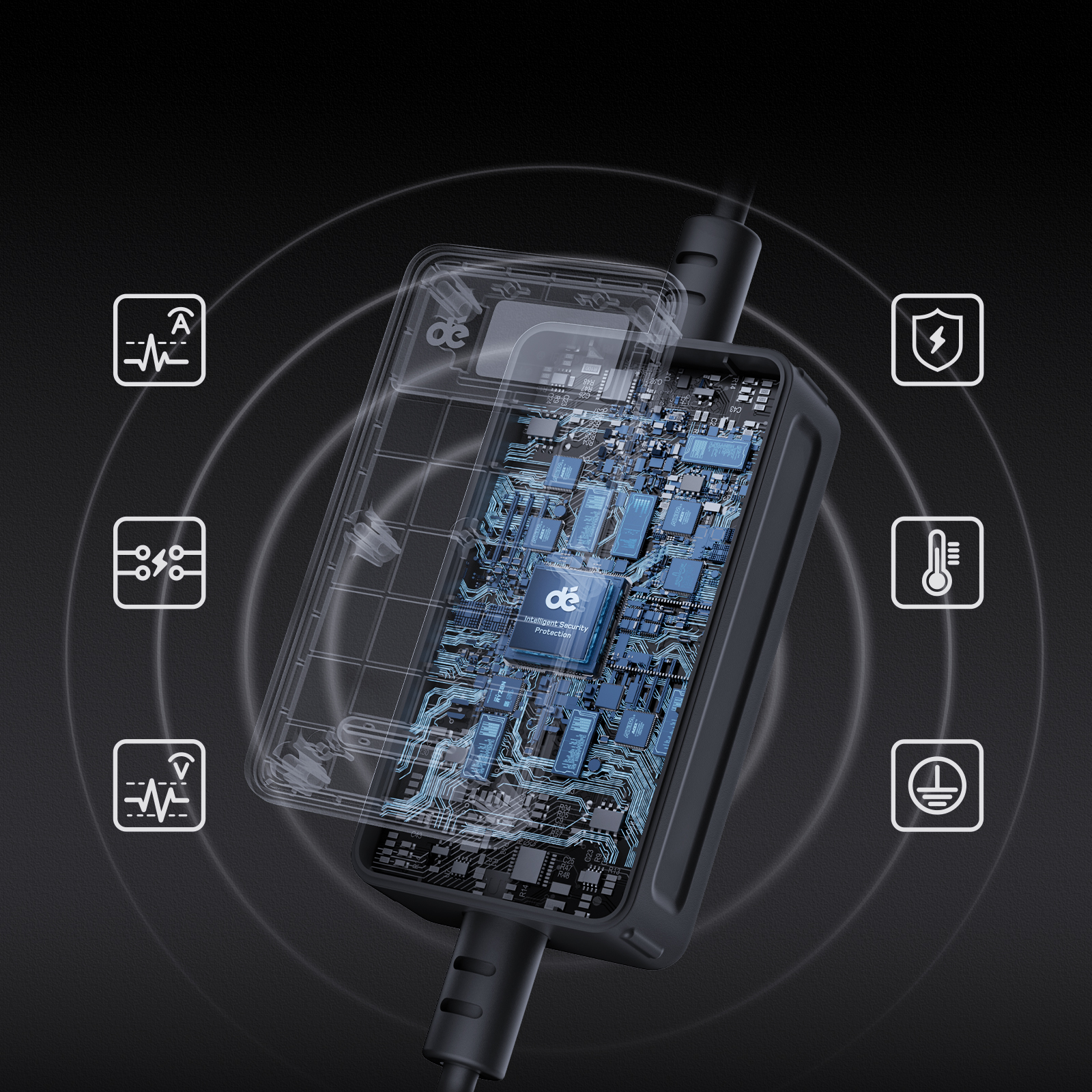

Certified Safety and Multiple Protection Systems

The charger is CE/DEKRA certified. Integrated protection covers 30 mA AC Type A and 6 mA DC residual current as well as overcurrent, overvoltage, undervoltage, leakage, overheating, grouding faults and short circuits.

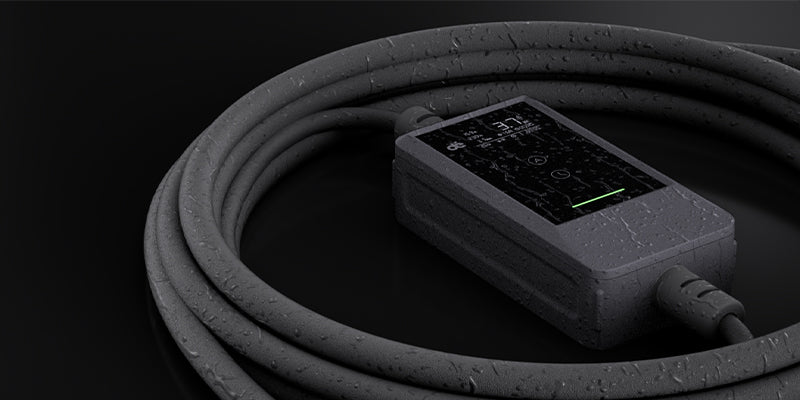

Designed for Indoor and Outdoor Use

The IP66-rated control box and IP55-rated Type 2 connector are designed for use indoors and outdoors. The operating temperature range is -25°C to +50°C.

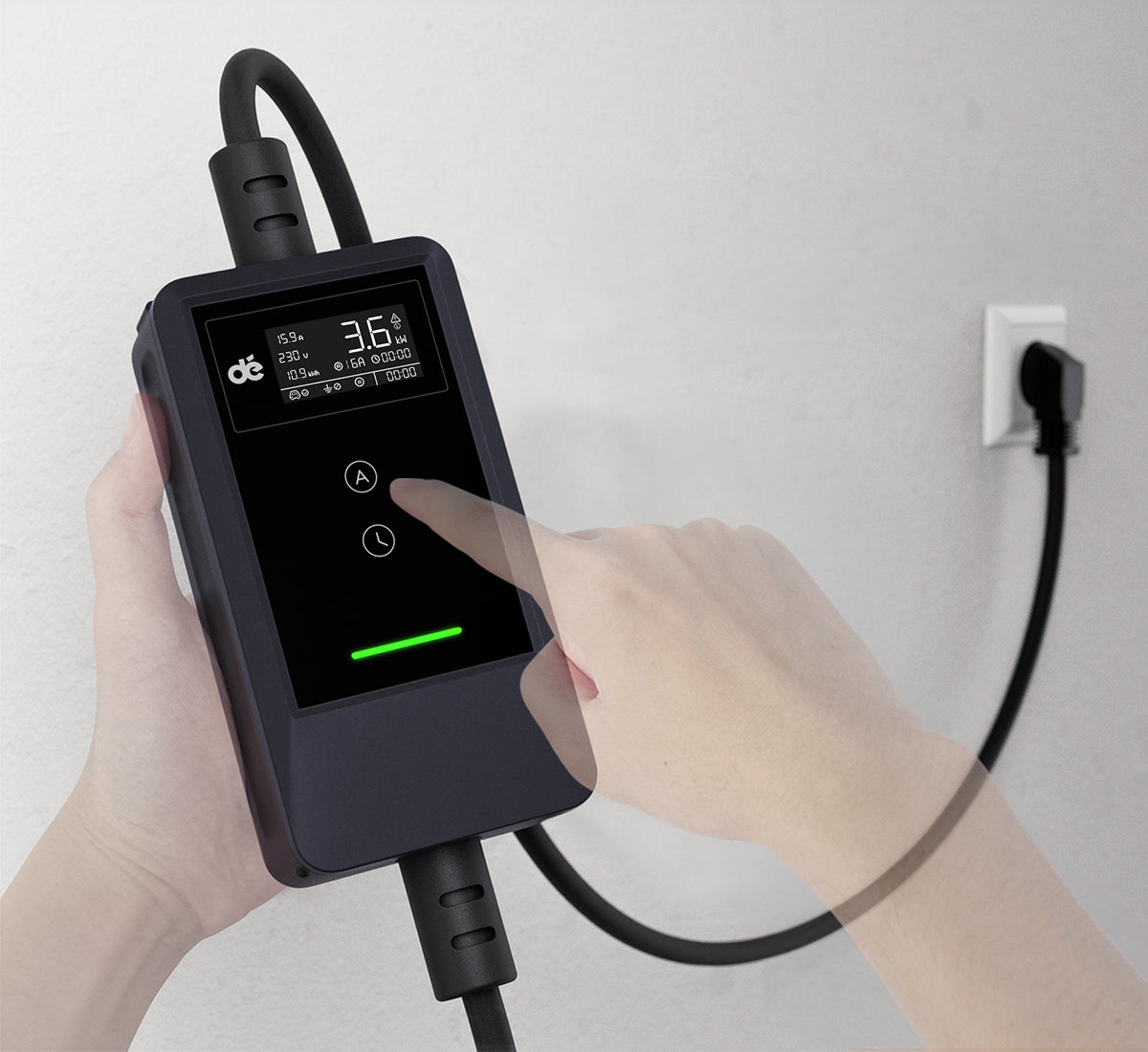

Simple Controls

Use the current button to select the charging current and the timer button to set the delay. Pressing both buttons together switches the earth mode; holding both buttons for five seconds stops charging.

Technical Specifications

• Maximum charging power: 3.68 kW
• Maximum current: 16 A, single-phase
• Selectable current: 6 A / 8 A / 10 A / 13 A / 16 A
• Power connection: Schuko, 16 A, single-phase
• Vehicle connection: Type 2
• Total cable length: 10 m
• Protection rating: IP66 control box; IP55 Type 2 connector
• Operating temperature: -25°C to +50°C
