dé 22kW Portable Charger with 10m Cable (APP VERSION)

Aprašymas

dé 22 kW Mobile Charging Station – 10 m App Version

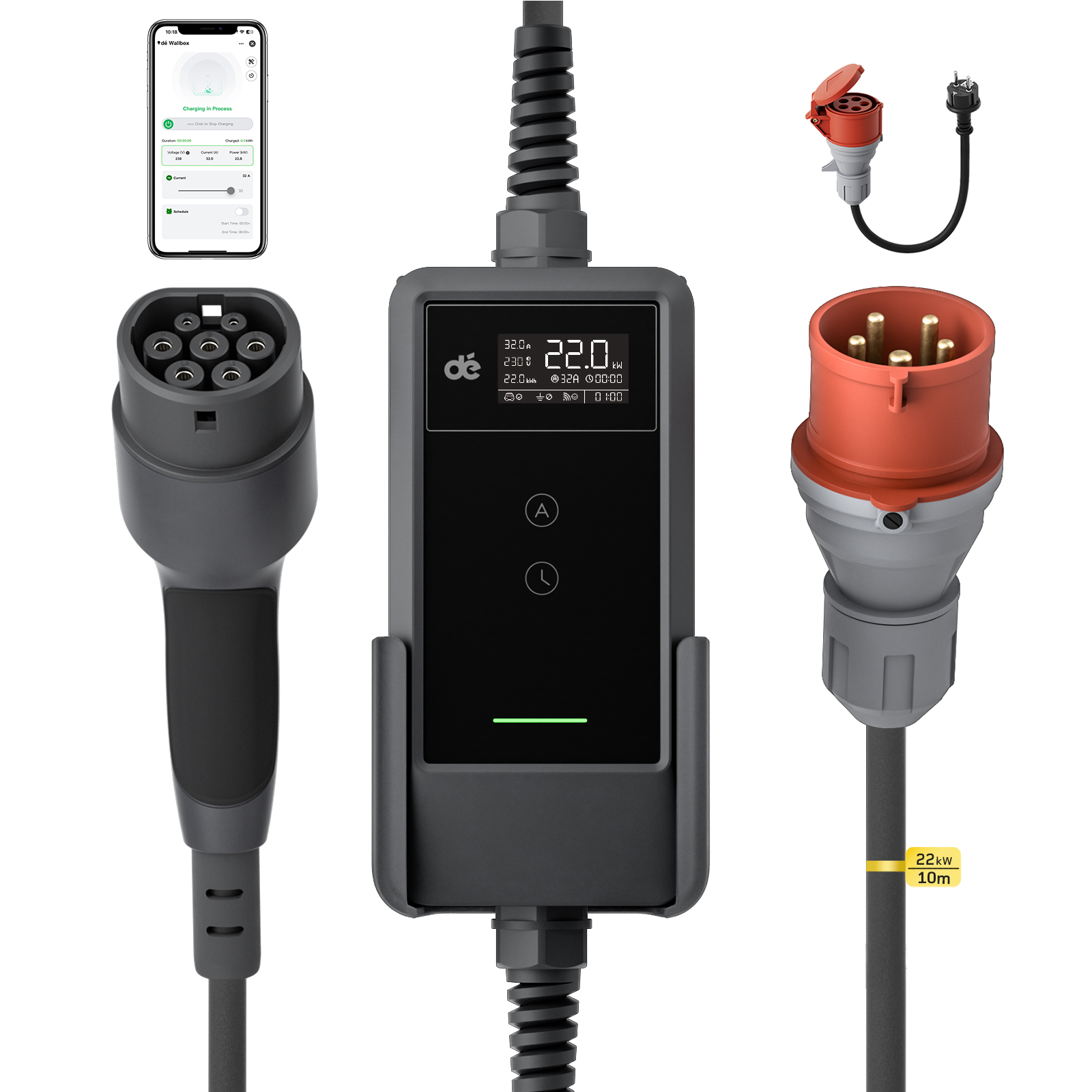

This portable Mode 2 charging station combines a red 32 A three-phase CEE power connection with a Type 2 vehicle connector. It offers a 10 m total length, Wi-Fi app control, an LCD status display, and adjustable charging current from 6 A to 32 A.

Key Features

• Single-phase charging up to 7 kW or three-phase charging up to 22 kW
• 10 m total length
• Red CEE 32 A three-phase power plug and Type 2 vehicle connector
• Schuko adapter

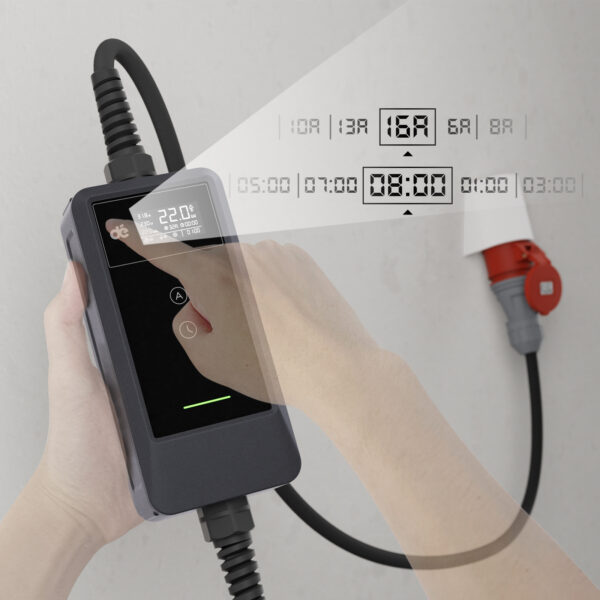

• Selectable charging current: 6 A, 10 A, 13 A, 16 A, 20 A, 24 A or 32 A
• Wi-Fi app monitoring and charging control
• LCD display
• Programmable charging delay
• Integrated residual-current protection with 30 mA AC and 6 mA DC detection
• CE certified

Plug-and-Play Charging from a CEE Socket

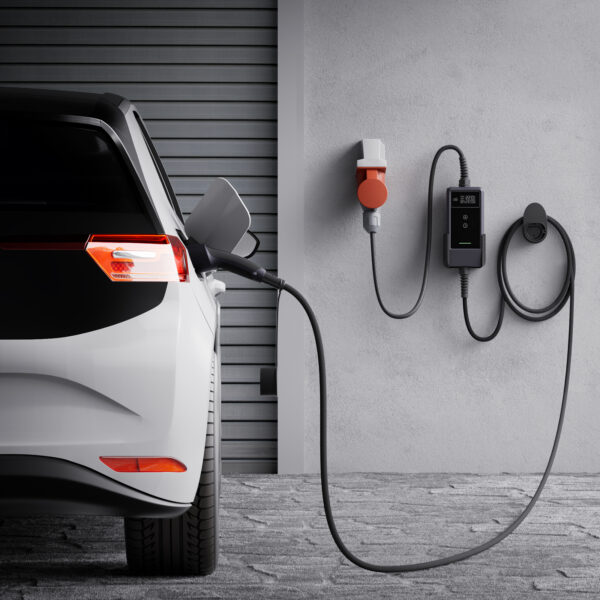

The charger connects directly to a red 32 A three-phase CEE socket without a permanently installed wallbox. Its portable construction supports charging at home or while travelling, provided that a suitable electrical connection is available.

10 m Total Length for Extended Reach

With a total length of 10 m, the charger provides generous reach between the CEE socket and the vehicle for convenient positioning during charging.

Weather-Resistant Construction

The IP66-rated control box is designed to resist dust and water, while the Type 2 connector is rated IP55. The operating range from -25°C to +50°C supports indoor and outdoor use in changing weather conditions.

Control at the Charger or through the App

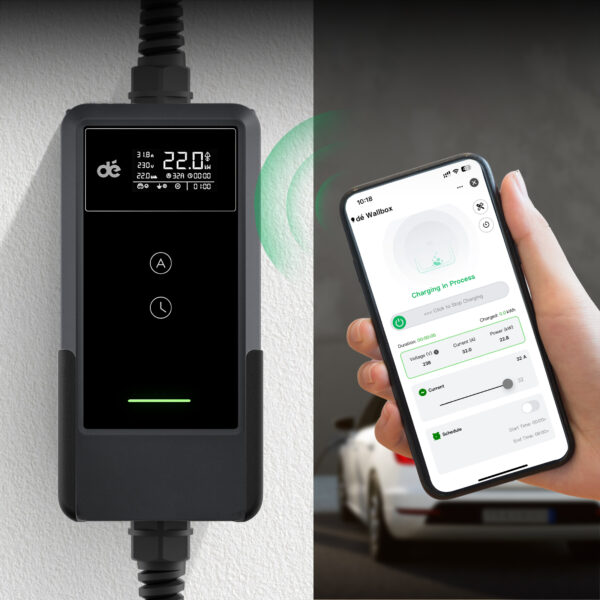

The LCD display provides charging status and power information directly at the control box. Through a Wi-Fi connection, the charger can also be connected to the Tuya Smart App for monitoring and adjusting the charging process.

Certified Safety and Multiple Protection Systems

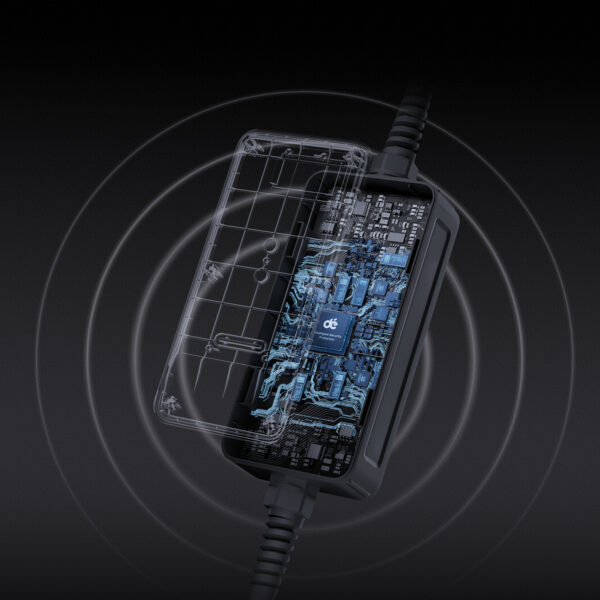

The charging station integrates residual-current protection with 30 mA AC and 6 mA DC detection. Additional safeguards cover leakage, overcurrent, overvoltage, undervoltage, earth faults, overheating and short circuits.

Ergonomic, Integrated Design

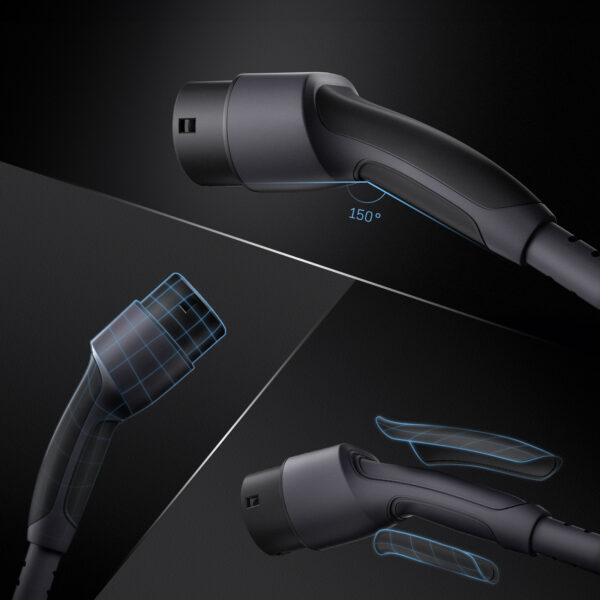

The Type 2 handle follows a natural grip angle and has a screwless exterior with a TPU covering. The matt-textured cable is designed for improved grip and wear resistance. The control box can be placed in the supplied wall bracket for organised storage.

Portable Storage

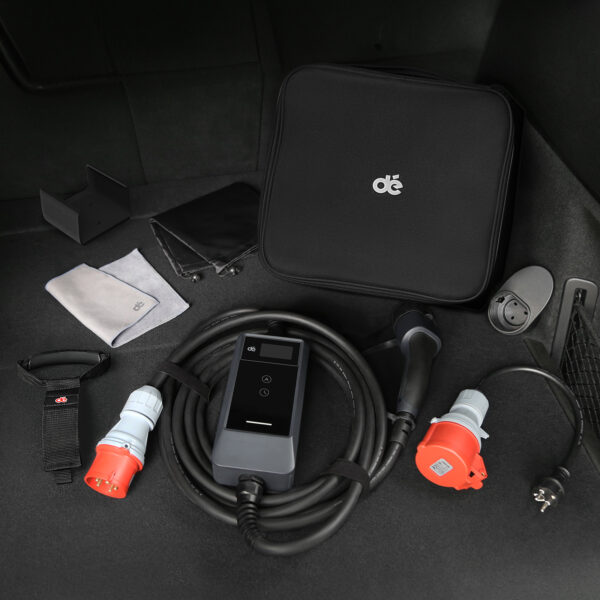

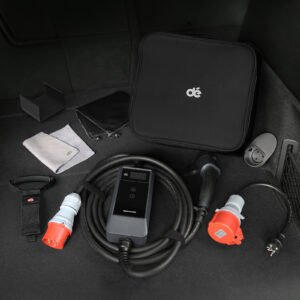

The charger and its accessories can be stored in the supplied carrying case. A carrying strap, waterproof storage bag and mounting accessories support transport and organised storage at home or on the road.

Technical Specifications

• Maximum charging power: 22 kW at 400 V, 32 A, three-phase
• Single-phase charging power: up to 7 kW
• Rated voltage: 230–400 V AC
• Selectable charging current: 6 A, 10 A, 13 A, 16 A, 20 A, 24 A, 32 A
• Power connection: red CEE 32 A, three-phase
• Vehicle connection: Type 2
• Total length: 10 m
• Charging delay: 0.5–8 hours
• Display: LCD
• Connectivity: Wi-Fi and app
• Protection rating: IP66 control box; IP55 Type 2 connector
• Operating temperature: -25°C to +50°C
