Creality Pika

Aprašymas

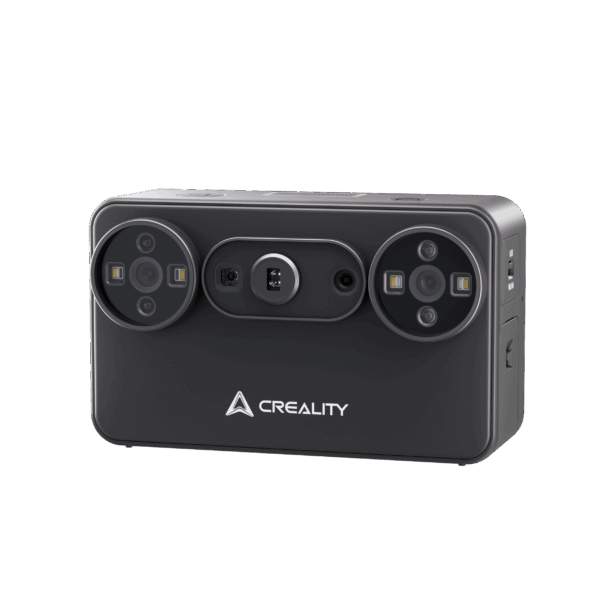

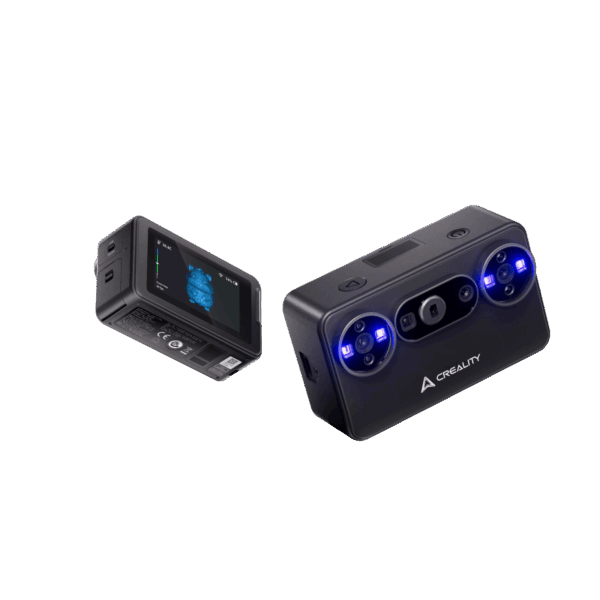

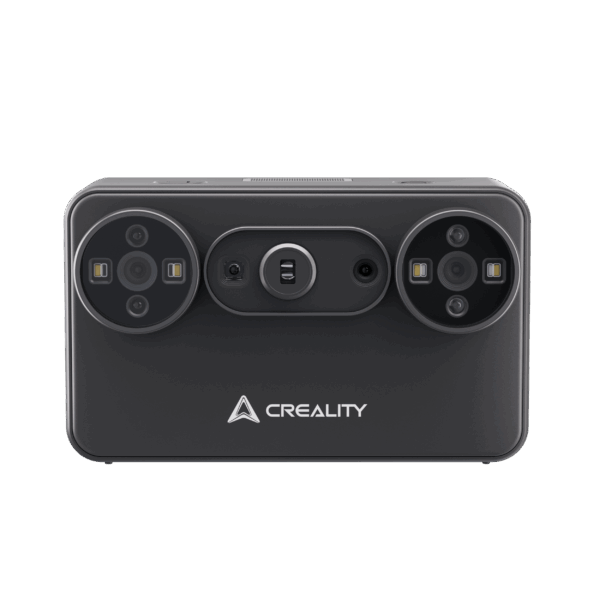

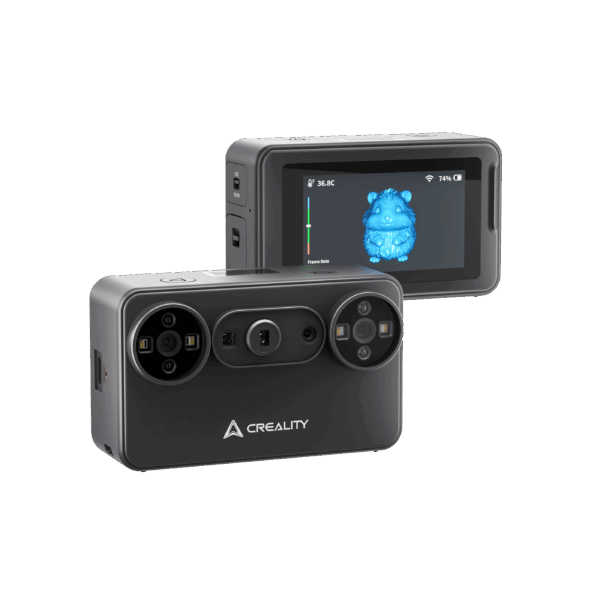

The Creality Pika is a compact, AI-assisted 3D scanner that combines seven parallel blue laser lines with NIR structured light in a handheld device. Blue laser mode is designed for detailed capture of smaller objects and complex contours, with accuracy of up to 0.03 mm. NIR structured light supports body scanning, larger objects and 24-bit full-colour capture, with accuracy of up to 0.1 mm. The integrated touchscreen and three connection modes support scanning with computers and mobile devices.

Key Features

• Seven parallel blue laser lines and NIR structured light
• Accuracy of up to 0.03 mm in blue laser mode
• Scanning speed of up to 110 fps with anti-shake stabilisation
• 3-inch HD touchscreen with 500-nit peak brightness
• Wireless PC, wireless mobile and wired PC connection modes
• Two removable 3,350 mAh quick-swap batteries included

Compact and Portable Design

Pika weighs 260 g and integrates its scanning hardware, touchscreen, processor and battery system into a compact handheld unit.

Dual-Light Scanning

The seven-line parallel blue laser mode is designed to capture fine details and complex contours on smaller objects, including models, components and figurines. NIR structured light supports body scanning, larger objects and 24-bit full-colour capture.

Removable NIR filters help reduce interference when scanning in bright conditions. The blue laser supports scanning in ambient light levels of up to 110,000 lux, while NIR scanning with the filters supports light levels of up to 80,000 lux.

Scanning Range and Performance

The minimum supported scan volume is 10 × 10 × 10 mm³ in blue laser mode and 50 × 50 × 50 mm³ in NIR mode. The maximum supported scan volume is 2,000 × 2,000 × 2,000 mm³.

Blue laser scanning reaches speeds of up to 110 fps on a compatible computer and up to 40 fps on a mobile device. NIR scanning reaches up to 30 fps on a compatible computer and up to 20 fps on a mobile device. Anti-shake stabilisation supports handheld scanning while the scanner is moving.

Pika can capture black and metallic objects without scanning spray. Marker-free laser scanning is available in wired PC mode only.

Built-In Touchscreen

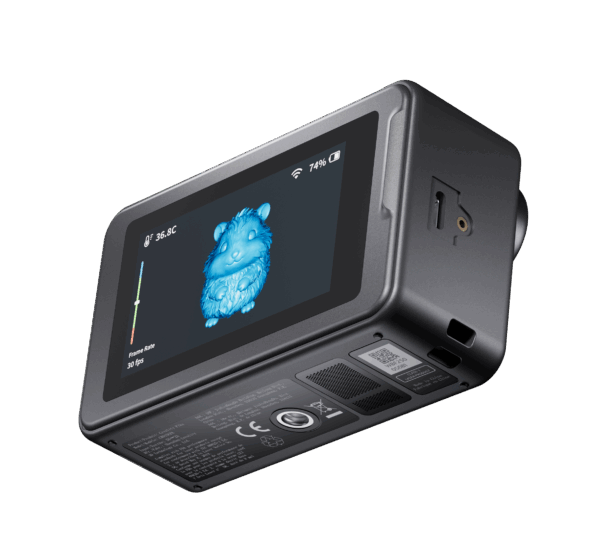

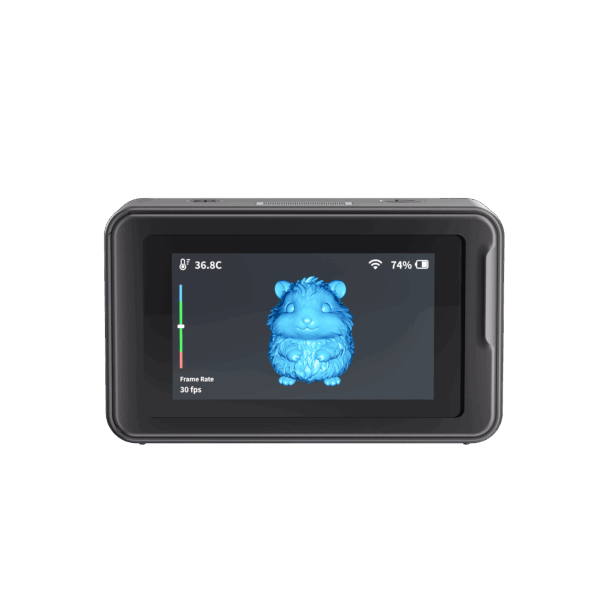

The integrated 3-inch HD touchscreen has a peak brightness of 500 nits. It can be used to adjust scan settings, check the scanner’s status, control the device and view the captured model during scanning.

Wired and Wireless Workflows

Pika supports three connection modes. Wireless PC mode connects the scanner to a computer through Wi-Fi, while wireless mobile mode allows a phone to connect directly to the scanner. Wired PC mode uses a USB 3.0 connection and supports marker-free laser scanning.

The scanner supports Windows, macOS, Android and iOS.

AI-Assisted Processing

CrealityScan includes AI-assisted tools for processing scanned data. AI Retexturing maps textures from high-resolution photographs onto a scanned model, while AI Hole Filling helps close gaps in incomplete scans.

AI Body Completion uses a face scan together with body photographs to help generate a complete full-body model without requiring a complete body scan. These AI features are currently available on PC only.

File Export

Completed scan data can be exported in STL, OBJ, PLY and ASC formats.
