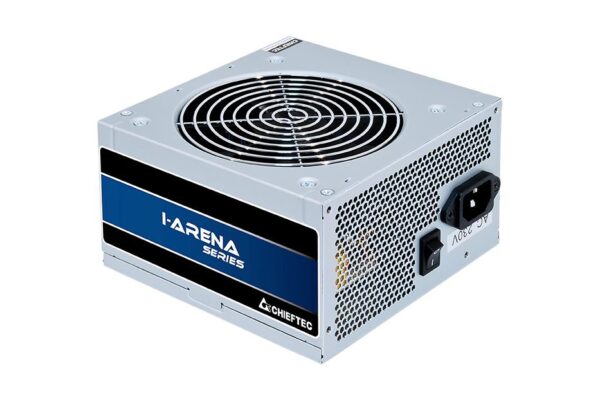

CASE PSU ATX 500W/GPB-500S CHIEFTEC
Prekės kodas: @2399883
33,50 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-05-05*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
Specifikacija
| Summary | Chieftec GPB-500S. Total power: 500 W, AC input voltage: 200 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS |
| Vendor Homepage | https://www.chieftec.eu/en/psus/iarena-series/gpb-500s.html |
| Category Code | PSU |
| CnCode | 85044095 |
| Unit Box Height | 0.155 |
| Unit Box Length | 0.2 |
| Unit Box Width | 0.09 |
| AC input frequency | 47 – 63 |
| AC input voltage | 200 – 240 |
| Combined power (+12V) | 456 |
| Combined power (+3.3V) | 110 |
| Combined power (+5V) | 110 |
| Combined power (+5Vsb) | 12.5 |
| Combined power (-12V) | 3.6 |
| Efficiency | 85 |
| Input current | 4 |
| Max output current (+12V1) | 38 |
| Max output current (+3.3V) | 18 |
| Max output current (+5V) | 17 |
| Max output current (+5Vsb) | 2.5 |
| Max output current (-12V) | 0.3 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Total power | 500 |
| Cabling type | Non-Modular |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| ATX version | 2.3 |
| Power supply unit (PSU) form factor | PS/2 |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 |
| Fan location | Top |
| Number of fans | 1 |
| On/off switch | Yes |
| Product colour | Silver |
| Compliance certificates | RoHS |
| Depth | 150 |
| Height | 87 |
| Width | 140 |
| Manual | Yes |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
| Warranty card | Yes |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.004455 |
| Unit Calculated Weight | 1.36 |
