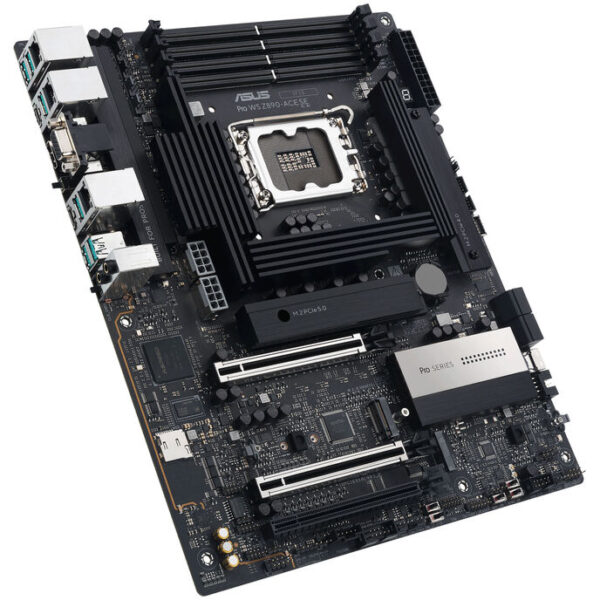

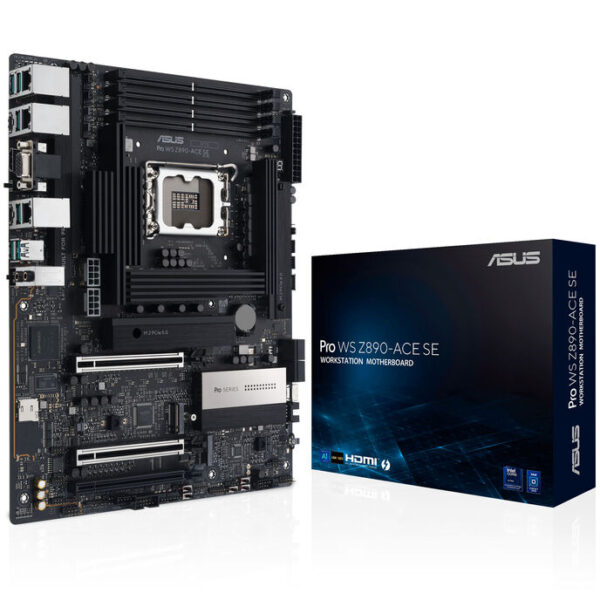

ASUS Pro WS Z890-ACE SE motherboard, LGA 1851 socket, Intel Z890, ATX, DDR5
90MB1JC0-M0EAY0
591,09 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-08-31*atsiėmimo taške Tarandės g. 2 - 42 boksas, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
ATX motherboard with Intel Z890 chipset, 2x PCIe 5.0 x16 / 1x PCIe 4.0 x16 (x4), 1x Thunderbolt / 1x USB-C 3.2 / 6x USB 3.1, 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0) / 8x SATA 6G, 8x 4-pin PWM connectors
This motherboard is perfect for high-end builds and AI applications.
- 2x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
- 4x DIMM slots for up to 256 GB DDR5 RAM at 9,066 MHz (XMP 3.0 & CUDIMM support)
- 4x M.2 (1x PCIe 5.0 and 3x PCIe 4.0) / 8x SATA 6G
- USB on I/O Panel: 1x Thunderbolt, 1x USB 3.2 Type-C, 6x USB 3.1
- OC Features: 16+2+1+2 Phase VRMs, CMOS Reset, Digi+)
- Total of 8x 4-pin connectors for fans & pumps
ASUS Pro WS Z890-ACE SE: ATX Motherboard with Intel LGA 1851 Socket and Z890 Chipset
The ASUS Pro WS Z890-ACE SE is an ATX motherboard with the high-end Intel Z890 chipset and LGA 1851 socket. It supports second-generation Intel Core Ultra processors with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, providing data transfer rates of up to 40 Gbps. Additionally, the ASUS Pro WS Z890-ACE SE offers full PCIe 5.0 connectivity, delivering double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard Form Factor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Dual BIOS
|
No
|
|
Built-In I/O Shield
|
No
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
System Memory Subtype
|
CUDIMM, UDIMM
|
|
Max. Memory Speed (OC)
|
9066 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
3x (in total)
|
|
Wi-Fi / Bluetooth
|
No
|
|
Cooling
|
|
|
Backplate
|
No
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB4 (internal) Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 3×2 (external) Type C
|
1
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
6
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
3
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
8
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe x4 slots (total)
|
1
|
|
PCIe 5.0 x16 mechanical slot
|
2
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC1220P
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
