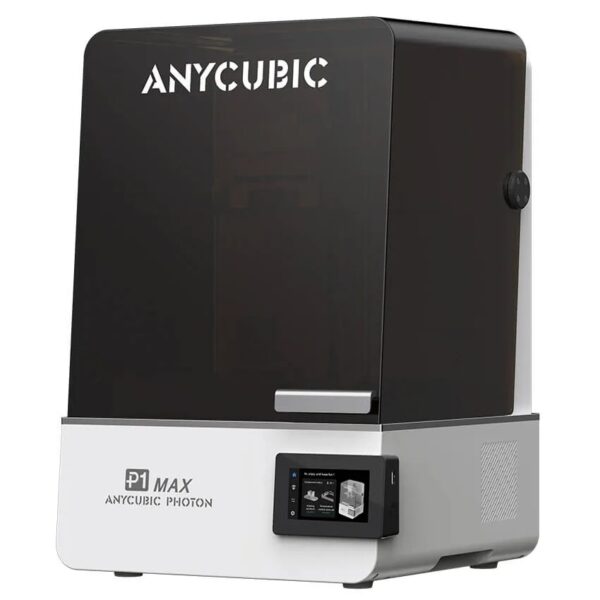

Anycubic Photon P1 Max

Aprašymas

The Anycubic Photon P1 Max elevates resin 3D printing to an industrial scale, combining a massive build volume with extreme 14K precision. Featuring an expansive 14.7-inch monochrome LCD and the advanced LighTurbo 4.0 optical system, it enables the printing of large-scale models or entire batches of detailed objects with exceptional surface finish. It is the ultimate solution for projects where both size and microscopic detail are essential requirements.

Highlights

• Massive 14.7-inch 14K monochrome LCD for large-scale prints with extreme clarity.
• LighTurbo 4.0 light source ensuring over 92% light uniformity across the entire large surface.
• Innovative Wave Release technology reducing peel force by up to 60%.
• Reinforced stability with dual linear rails and industrial-grade ball screw (±0.01 mm).
• Smart heated resin vat maintaining material at an optimal 40°C.
• Supports Dual-Material printing for advanced material combinations in a single process.
• Intelligent Leveling 3.0 for fully automatic calibration of the large build plate.

Large-Scale Precision Without Compromise

The Photon P1 Max is engineered to deliver industrial precision in a format that allows for significantly larger objects than standard models. The expansive 14.7-inch screen provides a substantial increase in build volume, making the machine ideal for everything from complex full-scale prototypes to highly detailed architectural models. To handle the larger scale, the P1 Max has been upgraded with dual linear rails and a precision ball screw, guaranteeing stability and repeatability of ±0.01 mm even during heavy printing tasks.

Advanced Technology for Reliable Results

With integrated Wave Release technology, the P1 Max effectively manages the strong suction forces associated with large surface areas by separating layers more gently. To further stabilize the printing process, the machine features an intelligent heated resin vat. By maintaining the resin at a constant temperature of 40°C, viscosity is reduced and material flow is improved, minimizing the risk of print failures and ensuring consistent results regardless of the ambient temperature.

Intelligent Handling and Material Support

The machine is equipped with Intelligent Leveling 3.0, eliminating the need for manual calibration—a critical feature for ensuring the large build plate always maintains perfect contact with the resin vat. For advanced applications, the Photon P1 Max also supports Dual-Material printing. This technology allows for the combination of different resin types or colors in a single print, opening up new possibilities in functional prototyping and creative design.
